INSTRUCTION MANUAL
VHF TRANSCEIVER
iF310
iF320
UHF TRANSCEIVER
iF410
iF420
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the condition that this device does not
cause harmful interference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-F320 and is the answer not in the manual?

Questions and answers

Related Manuals for Icom IC-F320

Summary of Contents for Icom IC-F320

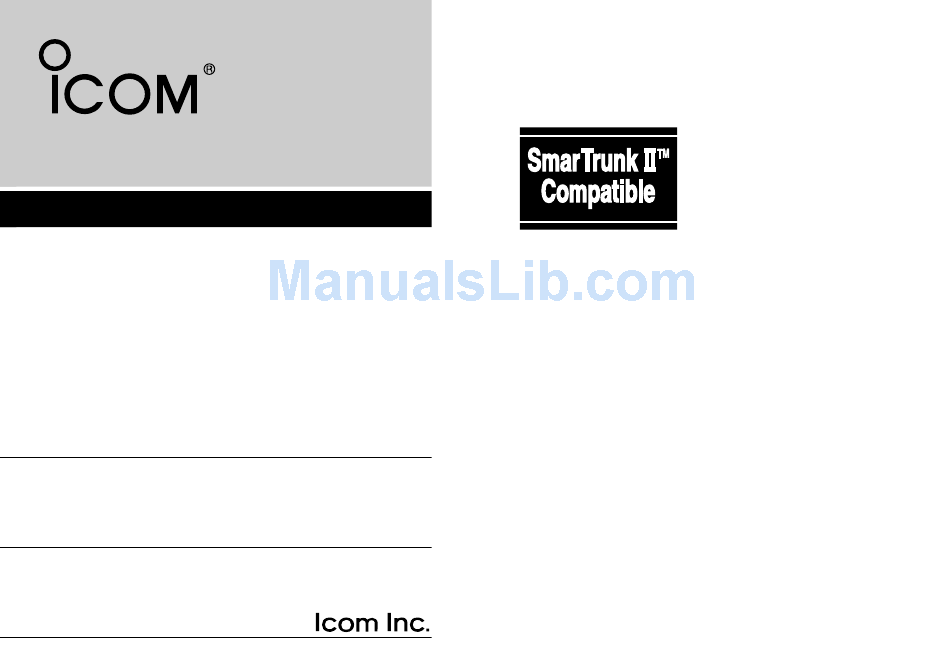

  • Page 1 INSTRUCTION MANUAL VHF TRANSCEIVER iF310 iF320 UHF TRANSCEIVER iF410 iF420 This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

  • Page 2: Important

    NEVER instruction manual contains important operating instructions connect the transceiver to a power source of more for the IC-F310, IC-F320, IC-F410 and IC-F420 than 16 V DC such as a 24 V battery. This connection will ruin VHF/UHF the transceiver.

  • Page 3: Table Of Contents

    I SmarTrunk II™ and conventional modes ......13 CAUTION: Changes or modifications to this transceiver, not ex- I SmarTrunk II™ operation ........... 13 pressly approved by Icom Inc., could void your authority to operate 5 OPTIONS ..............16 this transceiver under FCC regulations.

  • Page 4: Panel Description

    PANEL DESCRIPTION I Front panel CH UP/DOWN KEYS [ VOLUME UP/DOWN KEYS FUNCTION DISPLAY (P. 3) (P. 2) (P. 2) MICROPHONE PROGRAMMABLE POWER SWITCH (P. 2) CONNECTOR FUNCTION KEYS [P0],[P1],[P2],[P3] (P. 2) (P. 3)

  • Page 5: I Function Display

    PANEL DESCRIPTION I Function display VOLUME UP/ DOWN KEYS Push to adjust the audio output level. • Minimum audio level is pre-programmed. CH UP/DOWN [ ] KEYS • Push to select the operating channel. • Can be programmed for one of several functions by your- dealer.

  • Page 6: I Programmable Function Keys

    ] programmable function keys. BANK Select a bank (a group of 16 channels). Consult your Icom Dealer or System operator for details con- • When the optional UT-105 is installed, push one or cerning your transceivers programming. more times to select a channel bank for conven- In the following explanations, programmable function names tional channels or SmarTrunk II™...
  • Page 7 PANEL DESCRIPTION LOCK KEY OUTPUT POWER SELECTION KEYS LOCK HIGH Electronically locks all programmable keys except Select the transmit output power temporarily or per- LOW1 the following: manently depending on the pre-setting. • [ ] (incl. CAL A and CAL B), [ ] and •...

  • Page 8: Panel Description

    PANEL DESCRIPTION TX CODE KEY ID MEMORY READ KEY TX CH ID MR Select a transmit 5-tone code (station code) channel. Recalls detected ID codes. • Push and hold to changes the contents of the sta- • Push this key, then push [ ] for selection.

  • Page 9: Operation

    OPERATION I Turning power ON I Channel selection q Push [K ] to turn the power ON. Several types are available, and the channel selection • A power-up alert tone sounds for method may differ according to your system set up. about 1 sec.

  • Page 10: I Receiving And Transmitting

    OPERATION I Receiving and transmitting IMPORTANT: To maximize the readability of your signal: (1) pause briefly after pushing [ ], (2) hold the trans- ceiver 15 to 20 cm from your mouth, then speak into the RECEIVING: q Push [K microphone at a normal voice level.

  • Page 11: D Tx Code Channel Selection

    OPERATION D Tx code channel selection D DTMF transmission If the transceiver has a [ ] key, display can be toggled If the transceiver has a [ ] key, the automatic DTMF TX CH DTMF between the operating channel number (or name) and Tx transmission function is available.

  • Page 12: Connection And Maintenance

    CONNECTION AND MAINTENANCE I Rear panel and connection Antenna Optional cable (OPC-617) red: + Supplied DC power cable black: _ Optional speaker (SP-10)

  • Page 13: I Unpacking

    !1 Nut ........4 r DC power cable ....1 !2 Fuse ......... 2 IC-F310/F410: OPC-345 IC-F310/F410: 15 A IC-F320/F420: OPC-346 IC-F320/F420: 20 A t Mounting bracket ....1 !3 Function name stickers* y Bracket bolt ....... 4 ....1705 LCD SEAL(A))

  • Page 14: I Mounting The Transceiver

    CONNECTION AND MAINTENANCE I Mounting the transceiver I Optional UT-96/UT-105 instal- lation The universal mounting bracket supplied with your transceiver allows overhead mounting. Please read the following instruc- The optional UT-96/UT-105 units install as follows: tions carefully. q Turn power OFF, then disconnect the DC power cable. •...

  • Page 15: I Optional Opc-617 Installation

    ❑ Fuse rating IC-F310/F410: 15 A, IC-F320/F420: 20 A I Cleaning OPTIONAL CABLE PIN ASSIGNMENT If the transceiver becomes dusty or dirty, wipe it clean with a t r e w q dry, soft cloth.

  • Page 16: Optional Smartrunk Ii™ Operation

    OPTIONAL SmarTrunk II™ OPERATION I SmarTrunk II™ and I SmarTrunk II™ operation conventional modes These features are enabled by a Dealer or System Operator and may not be available in your system. Contact your Dealer This transceiver is capable of SmarTrunk II™ functions. for details.

  • Page 17: Last Number Redial

    OPTIONAL SmarTrunk II™ OPERATION D Terminating a call D Programming memory speed dial q Push and hold [M] until you hear a high-pitched beep. After completing a call, push [#] to disconnect (hang up). w Enter the memory location (0–9, A, B, C, D), the telephone IMPORTANT: If one person in the conversation terminates or subscriber number, then [1], [M] (or [3], [M] if for another a call, all participants will be cut off.

  • Page 18: Optional Smartrunk Ii™ Operation

    OPTIONAL SmarTrunk II™ OPERATION D Clear channel alerting If all channels are busy, the transceiver automatically begins searching for an open channel and beeps every ten seconds. When two short beeps (low-pitched, then high-pitched) are heard, a channel is available. Push [M], [M] immediately to re- dial the last number.

  • Page 19: Options

    OPTIONS EXTERNAL SPEAKERS SP-5 UT-96 5- TONE UNIT Large speaker for good audio Provides 2-tone/5-tone signaling . quality. Input impedance: 4 Ω Max. input power: 5 W UT-105 SmarTrunk II™ Logic Board Provides SmarTrunk II™ capabili- SP-10 ties. Compact and easy-to-install. Input impedance: 4 Ω...
  • Page 20 A-5458D-1EX-e Printed in Japan 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan © 1997 by Icom Inc.
  • Page 21 DECLARATION OF CONFORMITY We Icom Inc. Japan 0168 1-1-32, Kamiminami, Hirano-ku Osaka 547-0003, Japan Declare on our sole responsibility that this equipment complies the essential requirements of the Radio and Telecommunications Terminal Equipment Directive, 1999/5/EC, and that any applicable Essential Test Düsseldorf 07 Feb.
  • Page 22 INSTALLATION NOTES ABOUT CE CE Versions of the IC-F310/S which display the The installation of this equipment should be made in such a manner “CE” symbol on the serial number seal, comply with as to respect the EC recommended electromagnetic field exposure the essential requirements of the European Radio limits (1999/519/EC).
  • Page 23 DECLARATION OF CONFORMITY We Icom Inc. Japan 0168 1-1-32, Kamiminami, Hirano-ku Osaka 547-0003, Japan Declare on our sole responsibility that this equipment complies the essential requirements of the Radio and Telecommunications Terminal Equipment Directive, 1999/5/EC, and that any applicable Essential Test Düsseldorf 11 Jan.
  • Page 24 INSTALLATION NOTES ABOUT CE CE Versions of the IC-F410/S which display the The installation of this equipment should be made in such a manner “CE” symbol on the serial number seal, comply with as to respect the EC recommended electromagnetic field exposure the essential requirements of the European Radio limits (1999/519/EC).
