PANEL DESCRIPTION

LED indicator

■

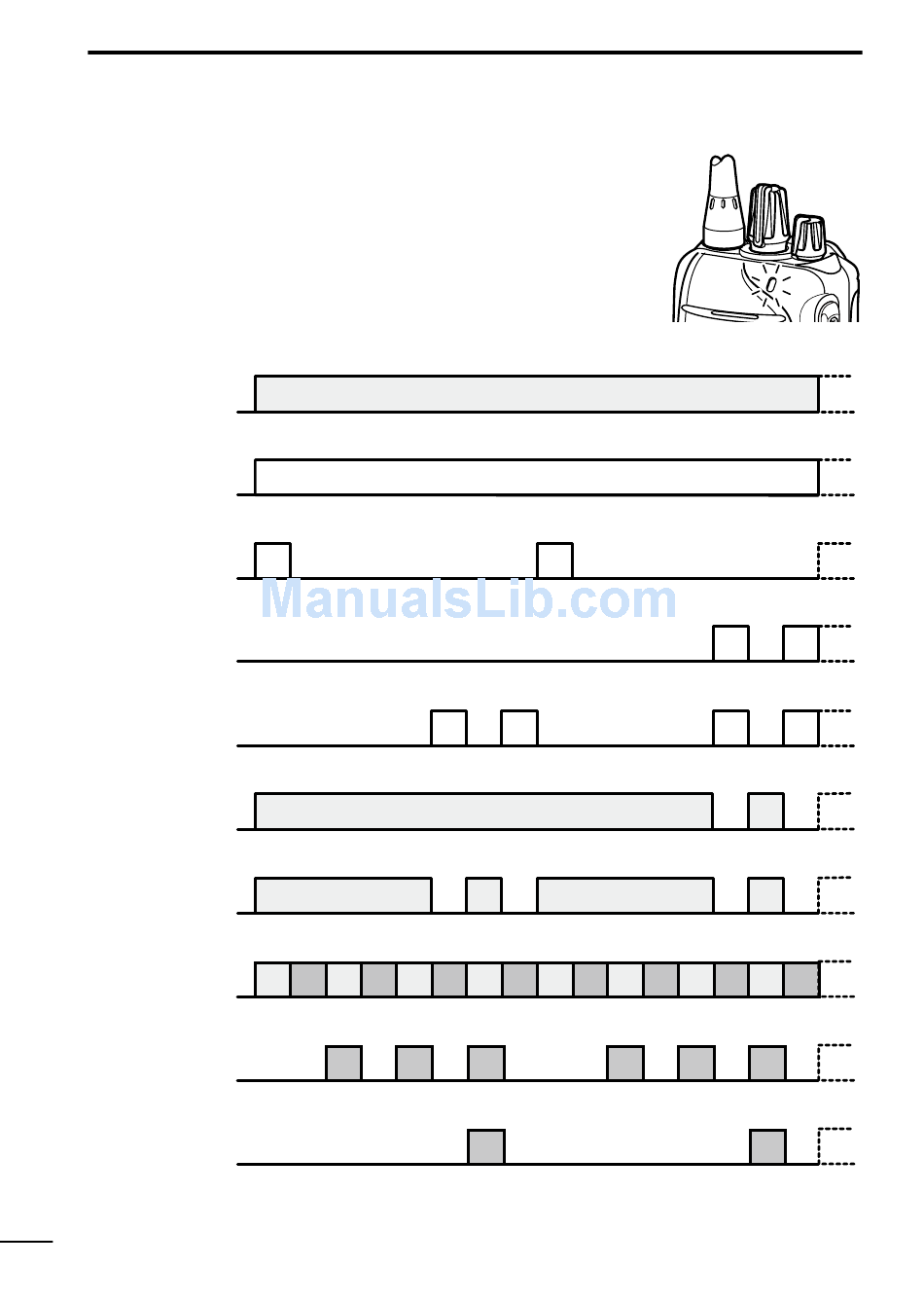

The LED indicator indicates the status of various
parameters of the transceiver as follows;
(Reference: R=Red, G=Green, O=Orange)
• TX: Lights while transmitting a signal.
• RX: Lights while receiving a signal.
• Scan: Blinks when the scan is activated.
• Low Battery 1: You should charge the battery. (blinks slowly)
• Low Battery 2: You must charge the battery. (blinks fast)
• TX low Battery 1: Low Battery was detected during TX mode.
• TX low Battery 2: Very Low Battery was detected during TX mode.
• Channel Error: A non-programmed channel is selected.
• CH Access: Blinks while accessing a channel to make a call.
• Audible: Blinks slowly when a mute is released.
* When the attached battery type is set to "Alkaline Dry," the LED indica-
tor lights (or blinks) orange.
7
G
R*
R O R O R O R O R O R O R O R O
O O
R *
G
G
G G
R*
R* R*
O
O
G
G G
R*
R*
O O O
O
G
