Battery chargers

■
D Using the BC-191 to rapid charge the BP-264
The BC-191 provides rapid charging of the Ni-MH battery pack
(BP-264 only). Never use it for any other battery pack.
Charging time: Approximately 2 hours (for the BP-264)
The following item is additionally required:
• An AC adapter (not supplied with some versions) or the DC power
cable (OPC-515L/CP-23L).
AC adapter
(A different type,
or no AC adapt-
er is supplied,
depending on
the version.)
Optional OPC-515L*
(for power source) or
CP-23L (for 12 V cig-
arette lighter socket)
can be used instead
of the AC adapter.
* Cable polarity
White line:
Black line :
CAUTION: NEVER connect the
OPC-515L to a power source
using reverse polarity.
This will ruin the battery charger.

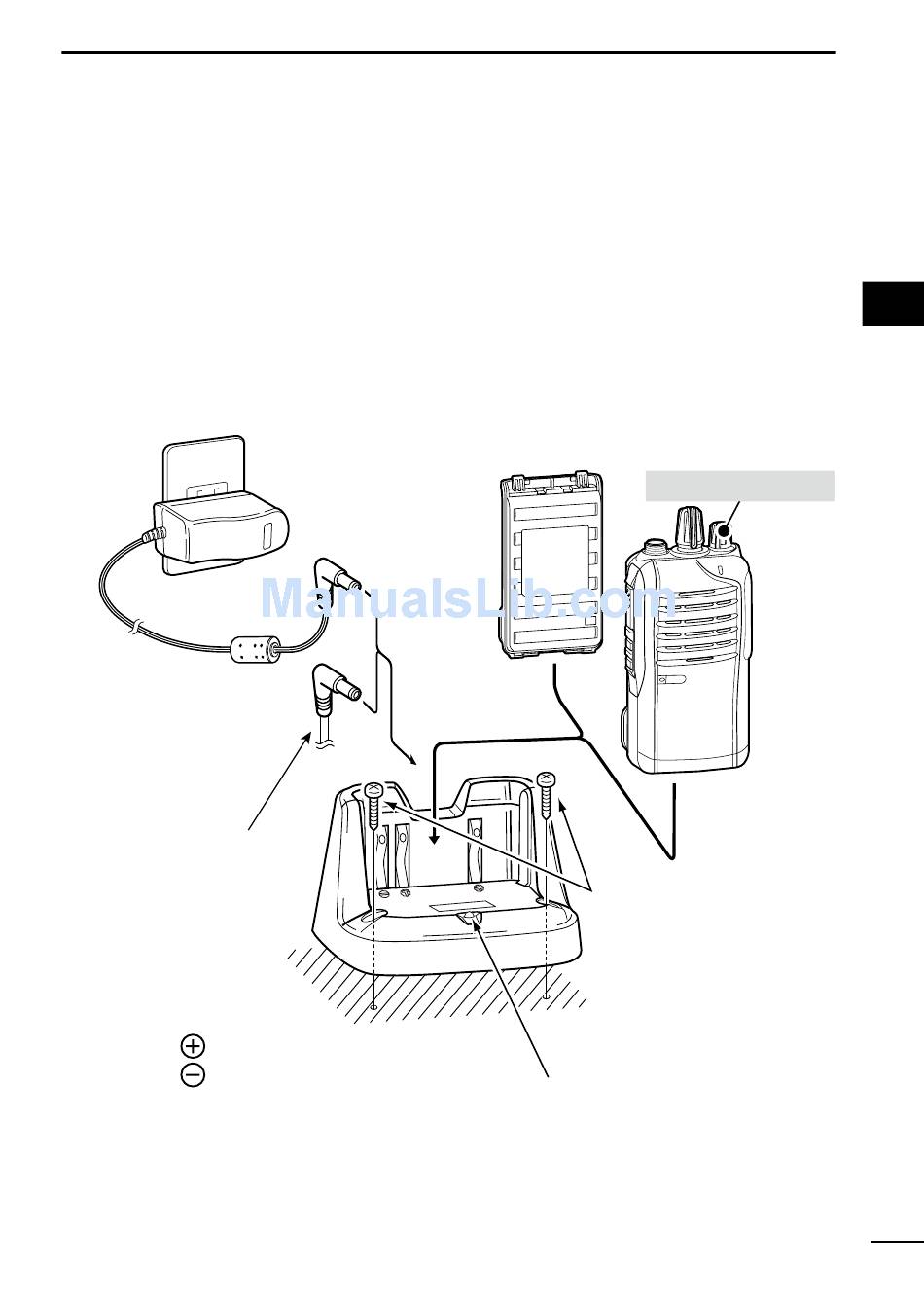

BATTERY CHARGING
Battery pack Transceiver
Turn power OFF
Screws*
( Self
M3.5 × at least 30 mm)
*Purchase separately.
Using screws is recom-
mended to secure the
charger.
Status indicator
• Lights orange:
While charging.
• Lights green:
Charging is completed.
