Engine Mount Installation - Seagull Models Spitfire Mk IX Assembly Manual

SPITFIRE - 2030 mm
3x10
9) Connect the lines from the tank to the engine
and muffler. The vent line will connect to the
muffler and the line from the clunk to the
carburetor.
8
Instruction Manual.
Blow through one of the lines to en-
sure the fuel lines have not become
kinked inside the fuel tank compartment.
Air should flow through easily.

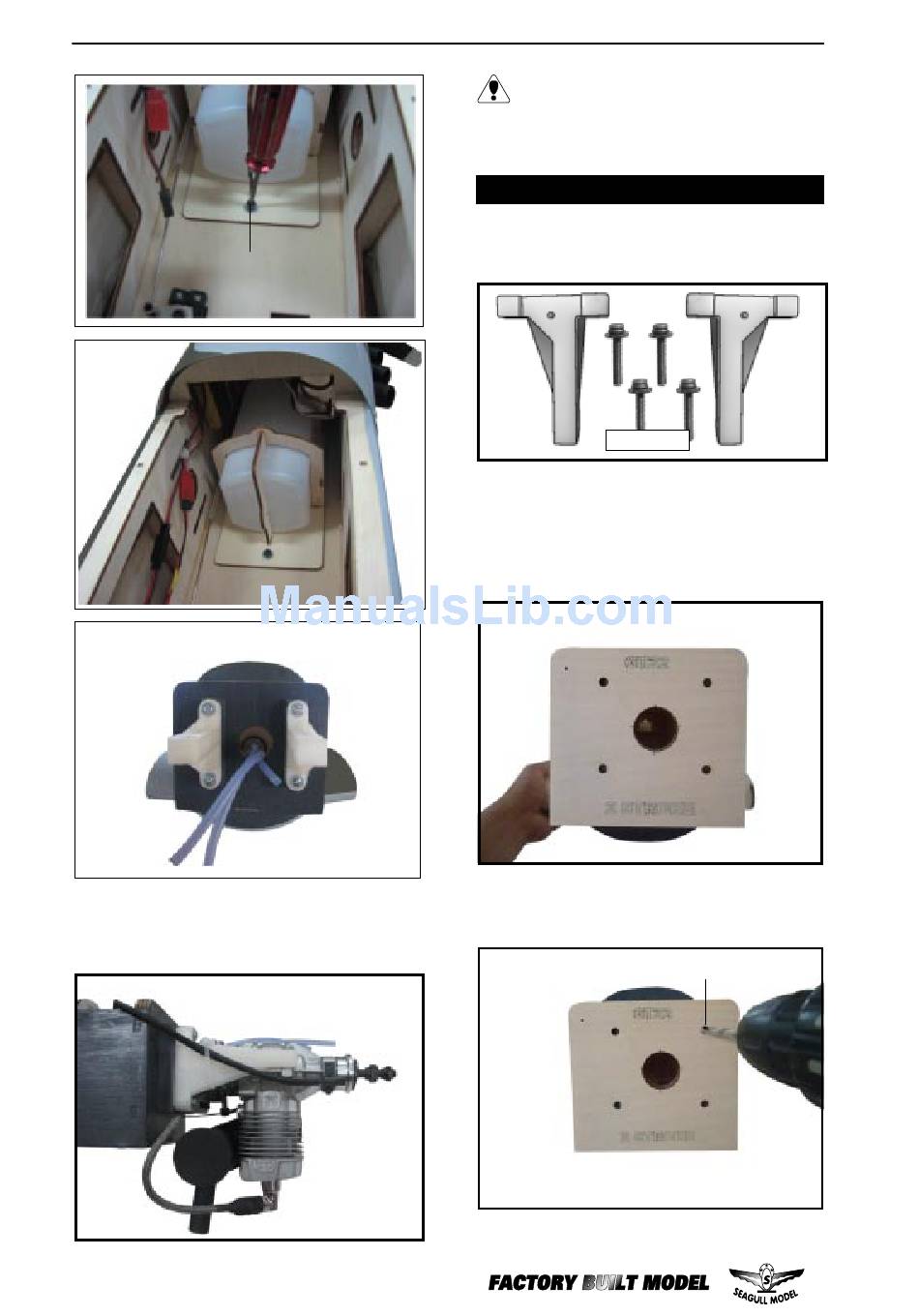

ENGINE MOUNT INSTALLATION.

1) Locate the items necessary to install the
engine mount included with your model. .
4x30mm.
2) Use low-tack tape to secure the plywood
engine template to the firewall, making sure it
is centered. Use a drill and 1/16 inch (1.5mm)
drill bit to drill the four pilot holes for the wood
box mounting screws.
5mm
