SPITFIRE - 2030 mm

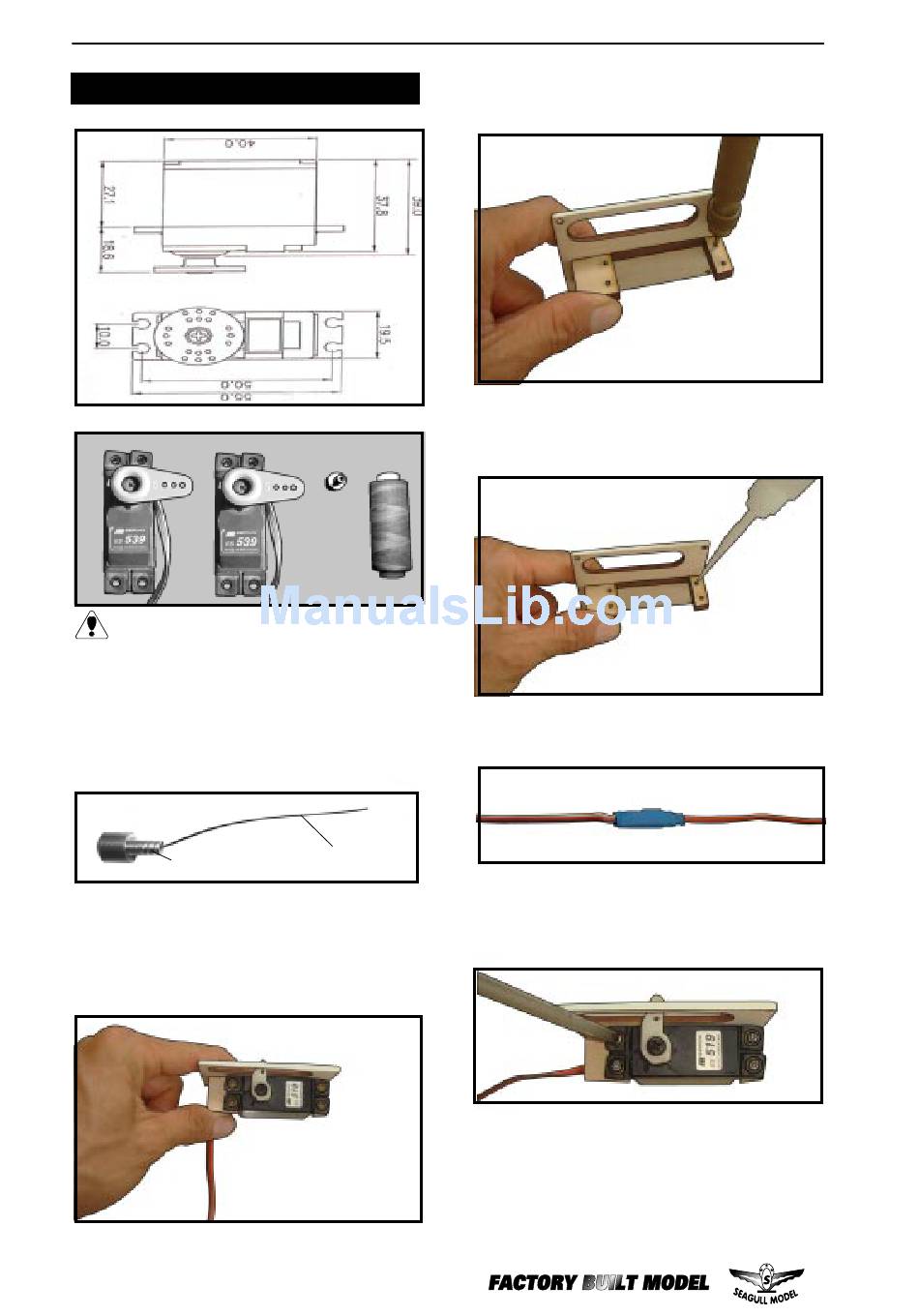

INSTALLING THE AILERON SERVOS.
Servos.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of
the mount allow the servo lead to pass through.
1) Using a small weight (
) and string,
up works well
through the wing as indicated.
Small weight.
2) Place the servo between the mounting
blocks and space it from the hatch. Use a pencil
to mark the mounting hole locations on the
blocks.
12
Small weight.
Thread.
Weighted fuel pick-
feed the string
String.
Instruction Manual.
3) Use drill bit in a pin vise to drill the mouting
holes in the blocks.
4) Apply 2-3 drops of thin C/A to each of the
mounting holes. Allow the C/A to cure without
using accelerator.
5) Use dental floss to secure the connection
so they cannot become unplugged.
6) Secure the servo to the aileron hatch using
Phillips screwdriver and the screws provided
with the servo.
7) Apply 1-2 drops of thin C/A to each of the
mounting tabs. Allow the C/A to cure without
using accelerator.
