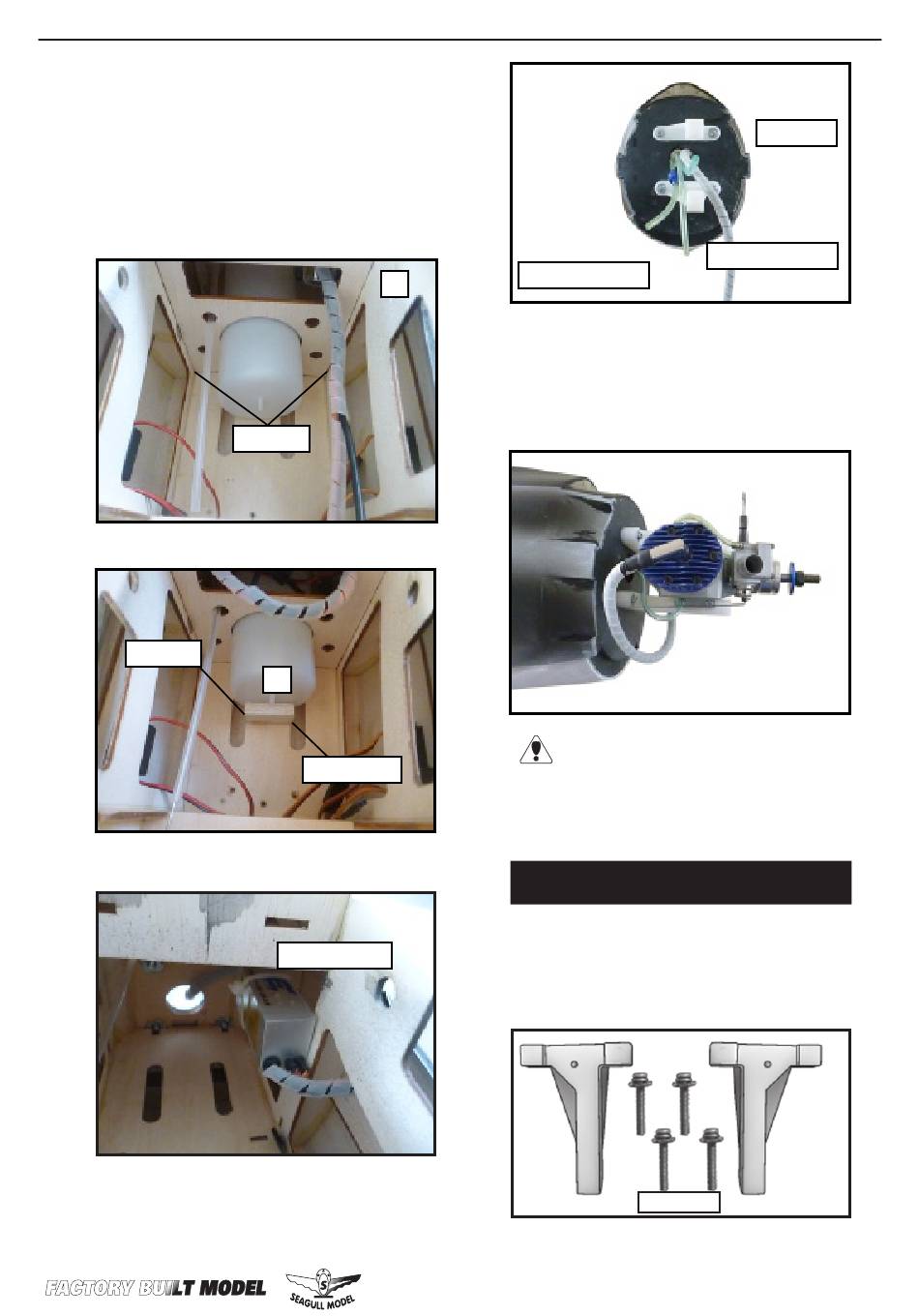

7) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in
the firewall.
8) Use plywood template to hold in place the
fuel tank with C/A glue to secure the fuel
tank inside the fuselage.
C/A glue.
C/A glue.
WWW.SEAGULLMODELS.COM
A
B
Balsa wood.
Set of ignition.
Fuel pick up tube.
9) Connect the lines from the tank to the en-
gine and muffler. The vent line will connect
to the muffler and the line from the clunk to
the carburetor.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
through easily.

ENGINE MOUNT INSTALLATION.

1) Locate the items necessary to install
the engine mount included with your
model.
4x30mm
Vent tube.
Fuel fill tube.
.
9
