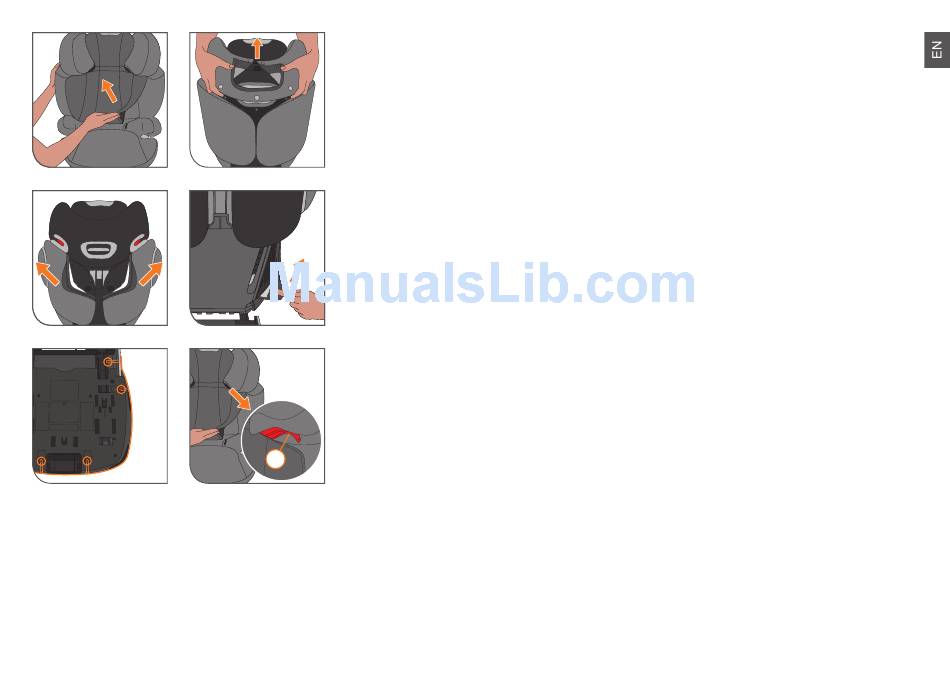

REMOVING THE SEAT COVER

The seat cover consists of four parts which are fixed to the seat
with velcro, press studs or button holes. Once you have released
the fasteners, the cover parts can be removed. To remove the
covers, please follow the instructions below:
• Undo the press studs on the lower side of the cover for the
adjustable headrest. Then you can remove the cover upwards.
• Activate the adjustment handle for the headrest and move this
to its highest position.
• Open and loosen all the press buttons on the rear side of the
headrest. Then pull the cover off forwards.
• Pull down the cover on the left and right side panel of the
shoulder rest. Then undo the press studs on the interior of the
shoulder wings in order to be able to entirely remove the cover
• Before you can remove the backrest cover from the seat, undo
the associated fastenings its rear side.
• Then thread the elastic bands out on the under side of the seat
area, and withdraw the seat cushion cover forwards.
NOTE! Before removing the separate parts of the seat cover,
please ensure that the cover is already positioned above the
decorative silver parts. To put the covers back on the seat,
proceed as above in reverse order.
Make sure that the red belt guide (q) always rests visible above
the seat cover.
