FIRST INSTALLATION

The child seat consists of a booster seat (d) and a backrest
(a) with height adjustable shoulder and headrest. Only the
combination of these two parts provides best protection and
comfort to your child.
!
WARNING! The parts of the CYBEX Solution Q2-fix must not
be used alone or in combination with boosters, backrests or
headrests from other manufacturers or from different product
series. In such instances, the certification expires immediately.

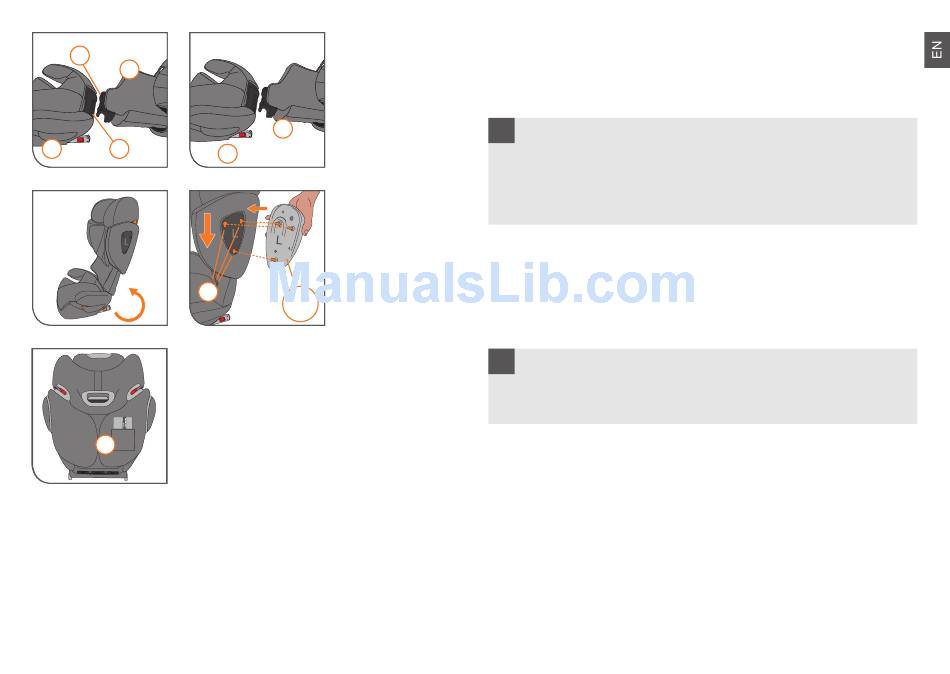

Connect the backrest (a) to the booster (d) by hooking the guide
lug (b) on the axis (c) of the booster (d). Insert the Linear Side-
impact Protection pads (L.S.P.) on both sides of the shoulder rest
into the appropriate installation holes (z). Push the pads slightly
downwards until you hear them click in.
NOTE! Please keep the user guide close by for future reference
(e.g. by storing it in the pocket (s) at the rear of the seat).
!
WARNING! Please ensure that the plastic parts of the child
seat are never compressed (e.g. by jamming in the car door
or when adjusting the back seat).
