Atlona AT-HDVS-200-TX User Manual

Three-input switcher for hdmi and vga sources with automatic display control and ethernet-enabled hdbaset output
Hide thumbs Also See for AT-HDVS-200-TX:
Table of Contents

Advertisement

Quick Links

See also: Manual
Three-Input Switcher for
HDMI and VGA Sources with
Automatic Display Control
and Ethernet-Enabled
HDBaseT Output
AT-HDVS-200-TX
User Manual
Please check http://www.atlona.com/
products/AT-HDVS-200-TX for the
most recent firmware update or
manual.
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HDVS-200-TX and is the answer not in the manual?

Questions and answers

Related Manuals for Atlona AT-HDVS-200-TX

Summary of Contents for Atlona AT-HDVS-200-TX

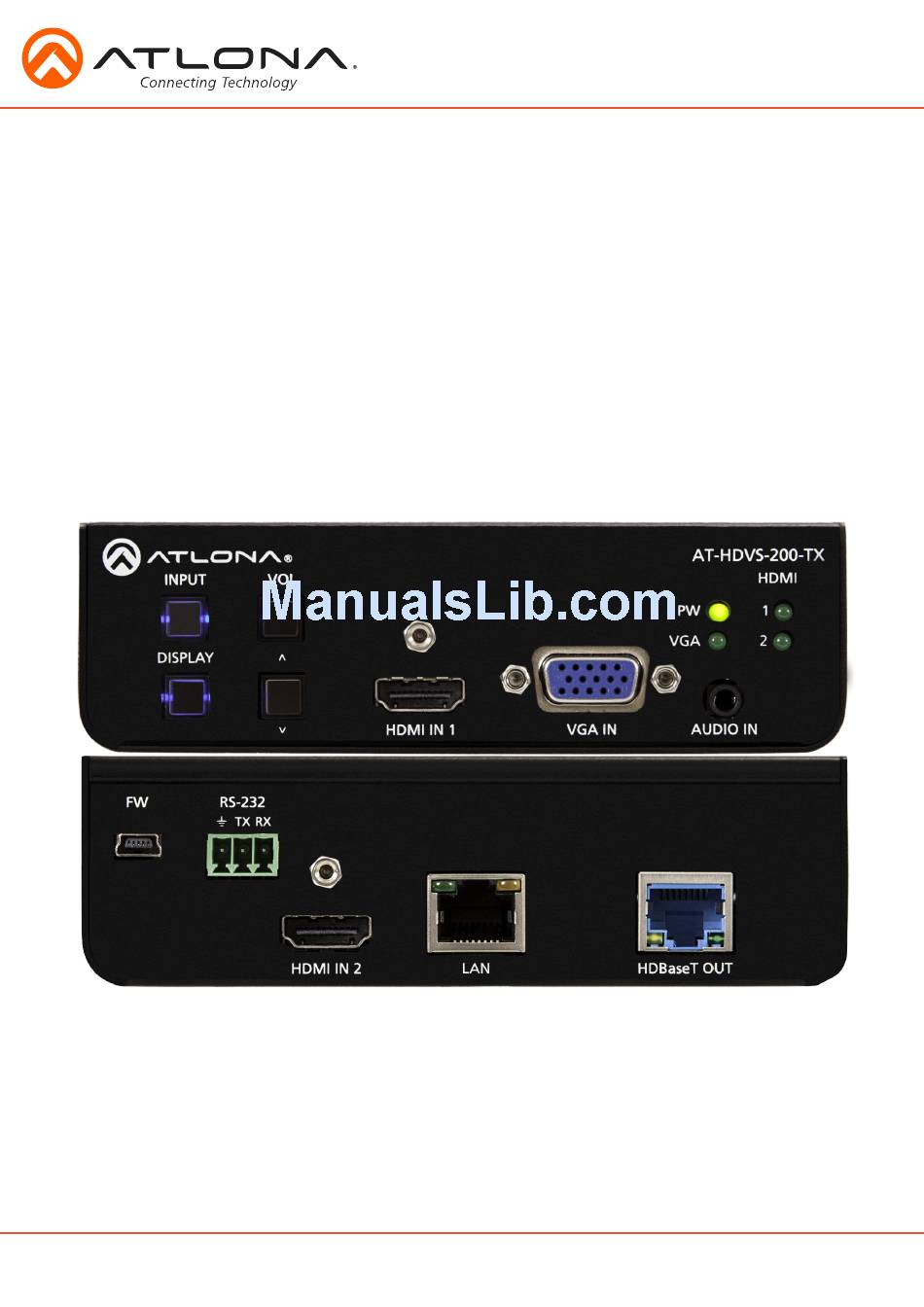

  • Page 1 Three-Input Switcher for HDMI and VGA Sources with Automatic Display Control and Ethernet-Enabled HDBaseT Output AT-HDVS-200-TX User Manual Please check http://www.atlona.com/ products/AT-HDVS-200-TX for the most recent firmware update or manual. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 2: Table Of Contents

    10. Warranty ................... 24-25 11. Atlona Product Registration ................... 25 Note: To ensure compatibility, please be certain both transmitter and receiver have blue HDBaseT ports. This ensures both products are PoE (48V) compliant. The HDVS-200-TX is not compatible with PoCC (black RJ45, 24V) devices Toll free: 1-877-536-3976 atlona.com...

  • Page 3: Introduction

    Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays.

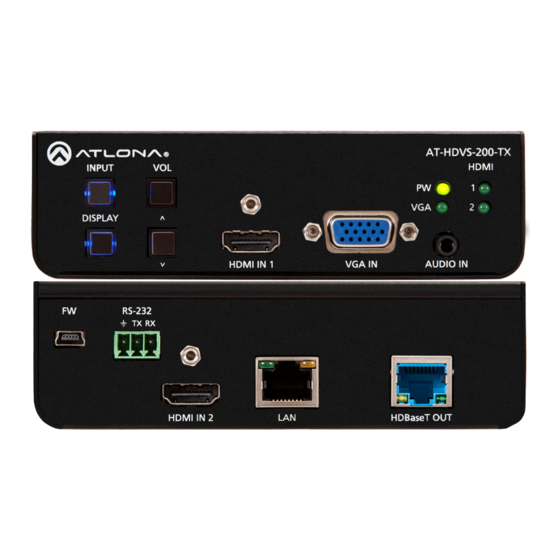

  • Page 4: Panel Description

    HDBaseT OUT 1. FW port: Firmware update port, connect a mini USB to USB A cable to a computer Firmware is downloadable through http://www.atlona.com/products/AT-HDVS-200-TX/ 2. RS-232 port: Connect control system to RS-232 port Note: RS-232 port is for switcher control only, it is not a pass-through for device control 3.

  • Page 5: Category Cable

    Note: To ensure compatibility, please be certain both transmitter and receiver have blue HDBaseT ports. This ensures both products are PoE (48V) compliant. The HDVS-200-TX is not compatible with PoCC (black RJ45, 24V) devices Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 6: Webgui

    To find the switcher IP: use RS-232 command “IPCFG”. Note: IP addresses may also be found using common free IP scanner software such as “Advanced IP Scanner” *Atlona does not assume responsibility for damage caused by other programs installed onto a computer, verify programs before installing* Important: If any stability issues are experienced, disable any anti-virus or firewall that may interfere with network communication to the switcher.
  • Page 7 Fallback Port - Select the input the switcher will default to when signal is lost Fallback Time - Determines how long the switcher will go without video signal before (sec) switching to the fallback port Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 8 ON/OFF - Mute/Unmute all audio output of the switcher Output Volume Output - Adjust the output volume Output Bass - Adjust the bass of the output Output Treble - Adjust the treble of the output Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 9: Rs-232

    We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays.
  • Page 10 Control Type - Select whether the display auto on/off commands are sent using RS-232, TCP/IP, or CEC Feedback Verify On: If receiving no feedback, the product will send the command up to 4 times Off: The command will only be sent once, whether feedback is received or not Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 11 Feedback - Feedback commands can be set by typing in the field or will auto fill after pressing the test button. Note: If the command is incorrect, you will get a red ‘Timeout!’ message at the top of the RS-232 field Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 12 Console - Adjust the RS-232 parameters of the HDVS-200 to make it compatible with control systems. Save - Once the RS-232 parameters are changed, press the save button to make it live on the unit. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 13 4 1280x720 5 1920x1200 6 1366x768 7 800x600 8 1600x900 9 2560x1440 10 3840x2160 Preferred Timings (VGA) 0 Default 1 1280x800 2 1920x1080 3 1024x768 4 1280x720 5 1920x1200 6 1366x768 7 800x600 8 1600x900 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 14 Admin password can also be changed. Be sure to write this information down as admin is the only profile allowed to add/remove users. Note: Default username= “root” and password= “Atlona” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 15 Reset to Default - Reset the device to factory settings Firmware Update - Use this feature to find and load the MCU firmware to the switcher Note: Firmware can be found and downloaded from http://www.atlona.com/products/AT-HDVS-200-TX/ page under the firmware tab...

  • Page 16: Connection

    Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any terminal program may be used to control the HDVS-200 now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 17 4 1280x720 5 1920x1200 6 1366x768 7 800x600 8 1600x900 9 2560x1440 10 3840x2160 Preferred Timings (VGA) 0 Default 1 1280x800 2 1920x1080 3 1024x768 4 1280x720 5 1920x1200 6 1366x768 7 800x600 8 1600x900 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 18 CliPass X Sets the IP password for login X= password, (blank) e.g. CliPass AtlonA e.g. CliPass AtlonA e.g. Set the IP password to AtlonA CliIPAddr X CliIPAddr X Sets the IP address of the controlled device X= ip, sta e.g. CliIPAddr sta e.g.

  • Page 19: Rs-232 Parameters

    The commands and any carriage returns/line feeds in the commands will need to be placed in the bracket. e.g. To turn the display or projector on if the command is PWRON carriage return, use the command: RS232zone[PWRON Note: = carriage return Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 20: Ip Commands

    Add a user for TCP/IP control. X=User Y=Password e.g. IPAddUser Atlona 1234 (User=Atlona 1234=Password) IPDelUser X TCP/IP user was deleted Delete a user from TCP/IP X=User (Ex. IPDelUser Atlona) IPDHCP sta IPDHCP sta Displays the status of DHCP e.g. IPDHCP on...

  • Page 21: Connection Diagram

    Connection Diagram (with HDVS-200-RX) Video HDBaseT Audio Ethernet Dry CC Laptop Control Document Camera AT-HDVS-200-TX INPUT HDMI DISPLAY HDMI IN 1 AUDIO IN VGA IN RS-232 HDMI IN 2 HDBaseT OUT Media Player AT-HDVS-200-TX AT-PA100-G2 AT-HDVS-200-RX AUDIO RS-232 MENU AUTO...

  • Page 22: With Uhd-Clso Series

    Connection Diagram (with PoE UHD-CLSO series) Video HDBaseT Audio Ethernet Laptop Document Camera AT-HDVS-200-TX INPUT HDMI DISPLAY HDMI IN 1 VGA IN AUDIO IN RS-232 MENU HDMI IN 2 HDBaseT OUT AT-HDVS-200-TX Media Player AT-UHD-CLSO-824 ENTER MASTER LINE LINE RX TX...

  • Page 23: Specifications

    Note: To ensure compatibility, please be certain both transmitter and receiver have blue HDBaseT ports. This ensures both products are PoE (48V) compliant. The HDVS-200-TX is not compatible with PoCC (black RJ45, 24V) devices Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 24: Safety Information

    It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

  • Page 25: Warranty

    Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.

  • Page 26: Warranty

    Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
