- Page 1 Two-Input Wall Plate Switcher for HDMI and VGA Inputs with HDBaseT Output AT-HDVS-150-TX-WP User Manual Please check http://www.atlona. com/AT-HDVS-150-TX-WP for the most recent firmware update or manual. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
8. Wall Plate Installation ................... 5 9. Set Up ................... 6 10. Connection and Installation ................... 6 11. Specifications ................... 7 12. Safety Information ................... 8 13. Warranty ................... 9-10 14. Atlona Product Registration ................... 10 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

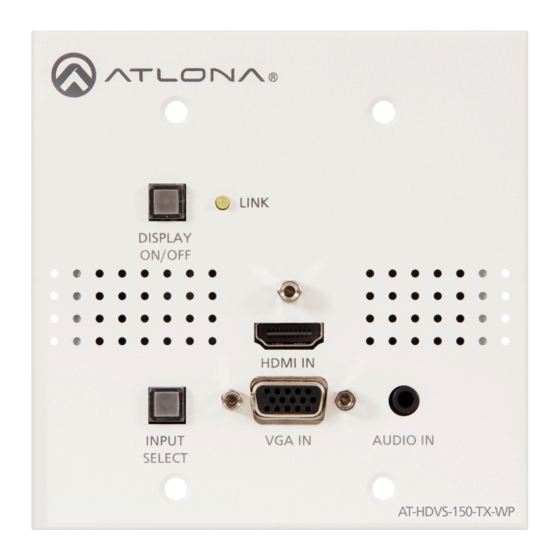

Introduction The Atlona AT-HDVS-150-TX-WP is a 2×1 wall plate switcher with display control for HDMI and VGA transmission over HDBaseT™. It features an HDMI input plus VGA input with 3.5mm audio connector and a two-gang, US or UK two-gang wall plate. Plates without buttons are also available (AT-HDVS-TX-WP-NB). -
Page 4: Panel Descriptions
VGA IN AUDIO IN SELECT AT-HDVS-150-TX-WP 1. DISPLAY ON/OFF button: Sends RS-232 trigger command when used with a compatible receiver (ex. AT-UHD-CLSO-824 - see CLSO manual for instructions) Note: If DISPLAY ON/OFF button is held for 5 seconds it will switch the baud rate between 115200 or 9600 2. -
Page 5: Wall Plate Installation
The UK wall plate screws will be the longer than the US screws. Thread the screws through the two holes in the UK wall plate and into the back box (as shown above). Note: Be sure to plug the CAT cable into the back of the wall plate before full installation Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Set Up
Connection and Installation Video HDBaseT Audio LINK DISPLAY ON/OFF HDMI IN INPUT VGA IN AUDIO IN SELECT MENU AT-HDVS-150-TX-WP AT-UHD-CLSO-824 ENTER MASTER LINE LINE RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX... -
Page 7: Specifications
Power Consumption 18.7W (when paired) Dimension Wall 2 Gang, 1.5 inch (40 mm) deep Weight Device 0.37 kg 0.82 lbs Certification Product CE, FCC *4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 9: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 10: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
