Two-Input Wallplate Switcher for HDMI with Ethernet-
Enabled HDBaseT Output
AT-HDVS-210H-TX-WP

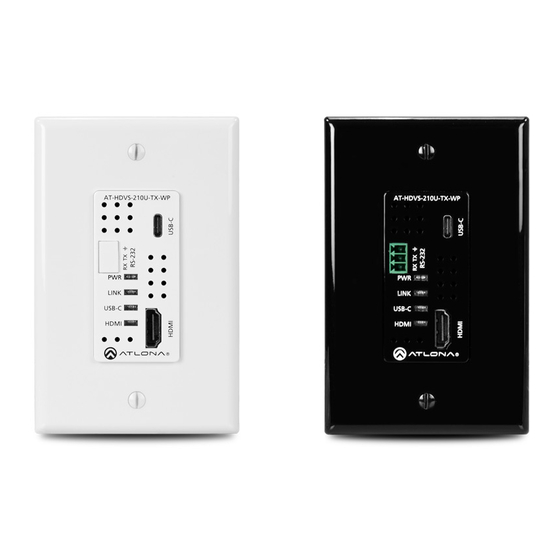

The Atlona AT-HDVS-210H-TX-WP is a 2x1 switcher and HDBaseT transmitter with two
HDMI inputs. It features a US one-gang, Decora-style wallplate form factor, and includes
interchangeable black and white wallplates and faceplates. Video signals up to 4K/UHD @ 60
Hz with 4:2:0 chroma subsampling, plus embedded audio and control can be transmitted up to
330 feet (100 meters). The HDVS-210H-TX-WP is HDCP 2.2 compliant. It is designed for use with
select HDVS Series receivers and scalers, as well as the AT-UHD-EX-100CE-RX-PSE receiver,
and Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as
an integral component of a fully automated AV system, with the convenience of automatic input
selection and display control. It is remotely powered by the AT-UHD-EX-100CE-RX-PSE or other
Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).
Package Contents
1 x AT-HDVS-210H-TX-WP
1 x White faceplate with RS-232 cover
1 x White wallplate
1 x Black faceplate with RS-232 cover
1 x Black wallplate
1 x 3-pin captive screw connector
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-HDVS-210H-TX-WP for the latest
firmware updates and User Manual.
1
Installation Guide
AT-HDVS-210H-TX-WP
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-HDVS-210H-TX-WP
Summary of Contents for Atlona AT-HDVS-210H-TX-WP
-
Page 1: Installation Guide
HDVS Series receivers and scalers, as well as the AT-UHD-EX-100CE-RX-PSE receiver, and Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. -
Page 2: Panel Descriptions
Installation Guide AT-HDVS-210H-TX-WP Panel Descriptions AT-HDVS-210H-TX-WP HDBaseT LINK HDMI 1 HDMI HDMI 2 HDMI 1 Connect an HDMI cable from this port to a UHD/HD source. RS-232 Connect an RS-232 control system to this port. The RS-232 port is covered by a plate and must be removed to expose the RS-232 port. - Page 3 Installation Guide AT-HDVS-210H-TX-WP RS-232 The AT-HDVS-210H-TX-WP provides an RS-232 port which allows communication between a control system and an RS-232 device. This step is optional. Remove the small plate covering the RS-232 port on the faceplate. small plate X - W...
- Page 4 AT-HDVS-210H-TX-WP Faceplate Removal and Assembly Removal of the faceplate requires that the AT-HDVS-210H-TX-WP be disassembled from the electrical box or mud ring. A small Phillips-head screwdriver is required to remove the faceplate. Unscrew the four Phillips-head screws from the sides of the faceplate, as shown:...
-
Page 5: Connection Diagram
Refer to the User Manual for more information. Install the AT-HDVS-210H-TX-WP into a 1-gang electrical box or mud ring. Attach the included Decora® wallplate to secure the AT-HDVS-210H-TX-WP to the wall/ surface. Connect up to two UHD/HD sources using the HDMI 1 and HDMI 2 ports. - Page 6 AT-HDVS-210H-TX-WP IP Configuration By default, the AT-HDVS-210H-TX-WP is set to DHCP mode, allowing a DHCP server (if present) to assign the unit an IP address. If a DHCP server is not found within 15 seconds, the IP address of the unit will be set to 0.0.0.0. If a static IP address is desired, the IP address of 192.168.1.254 is used by default.
- Page 7 Make sure that an Ethernet cable is connected between the LAN port on the receiver unit and the network. Launch a web browser and enter the IP address of the AT-HDVS-210H-TX-WP. If the default static IP address is being used, enter 192.168.1.254.
-
Page 8: Troubleshooting
• © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
