- Page 1 Three-Input Switcher for HDMI and VGA with HDBaseT Output ™ AT-HDVS-150-TX Atlona Manuals Switchers AT-HDVS-150-TX-PSK...
- Page 2 Version Information Version Release Date Notes 09/16 Initial release 01/17 Combined TX and TX-PSK manual AT-HDVS-150-TX / AT-HDVS-150-TX-PSK...
- Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
- Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
- Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
- Page 6 FCC regulations. AT-HDVS-150-TX / AT-HDVS-150-TX-PSK...
-
Page 7: Table Of Contents
Table of Contents Introduction Features Package Contents Panel Description Installation Basic Operation Powering the Display Selecting the Input Auto Switching Passing Analog Audio Appendix Updating the Firmware Specifications Index AT-HDVS-150-TX / AT-HDVS-150-TX-PSK... -
Page 8: Introduction

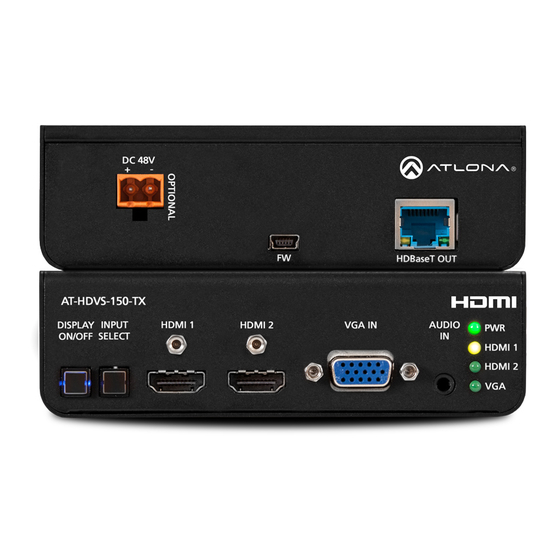

Introduction The Atlona AT-HDVS-150-TX is a 3×1 switcher with display control for HDMI and VGA transmission over HDBaseT™. It features two HDMI inputs plus a VGA input with 3.5mm audio connector. The AT-HDVS-150-TX combines the benefits of a switcher with built-in auto-switching and the advantages of long-distance HDBaseT signal extension over a single cable. -
Page 9: Panel Description
This LED indicator will glow bright green when the using the HDBaseT output. HDMI 1 port is selected. INPUT SELECT 12 HDMI 2 Press this button to select the desired input. This LED indicator will glow bright green when the HDMI 2 port is selected. AT-HDVS-150-TX / AT-HDVS-150-TX-PSK... -
Page 10: Installation
RJ-45 connector. Exposed twisted-pair wires may cause a short when connected to the HDBaseT OUT port. No power supply is required for the AT-HDVS-150-TX. This unit will be powered over the Ethernet cable, from an HDBaseT receiver. -
Page 11: Basic Operation
Basic Operation Connection Diagram ri c R SY RS -2 ID GE M ON 3. 5m ST ER M IC ri c R SY IN PU AT-PA100-G2 Speakers Display se T AT-HDVS-150-RX AT-HDVS-150-TX Desktop PC Laptop Laptop AT-HDVS-150-TX / AT-HDVS-150-TX-PSK... -
Page 12: Powering The Display
2. Press the INPUT SELECT button, to select HDMI 2. The HDMI 2 LED indicator will turn bright green. 3. Press the INPUT SELECT button a third time, to select the VGA IN port. The VGA LED indicator will turn bright green. 4. Press the INPUT SELECT button again to return to HDMI 1. AT-HDVS-150-TX / AT-HDVS-150-TX-PSK... -
Page 13: Auto Switching
VGA port. NOTE: Auto-switching is triggered by a Hot-Plug Detect (HPD) event. If HPD is not detected, then AT-HDVS-150-TX will not switch inputs. VGA does not support HPD. Passing Analog Audio Both products can pass two-channel analog audio with the VGA signal. -
Page 14: Appendix
Computer with USB port 1. Download the latest firmware from the Atlona web site. 2. Disconnect the power to the AT-HDVS-150-TX by disconnecting the Ethernet cable from the HDBaseT OUT port on the AT-HDVS-150-TX. 3. Press and hold the DISPLAY ON/OFF button. - Page 15 8. Drag-and-drop the AT-HDVS-150-TX_[version].bin firmware file to the drive. 9. After the file has been copied, disconnect the USB cable from both the computer and the AT-HDVS-150-TX. 10. Reconnect the Ethernet cable to the HDBaseT OUT port on the AT-HDVS-150-TX.
-
Page 16: Specifications
1080p - Feet / Meters HDMI CAT-5e / CAT-6 CAT-6a / CAT-7 Signal Bandwidth 10.2 Gbps HDCP Temperature Fahrenheit Celsius Operating 32 to 122 0 to 50 Storage -4 to 140 -20 to 60 Humidity (RH) 20% to 90%, non-condensing AT-HDVS-150-TX / AT-HDVS-150-TX-PSK... - Page 17 Input: 100 - 240 V AC, 50/60 Hz Output: 48 V DC, 3.125 A Dimensions Inches Millimeters H x W x D 1.50 x 5.00 x 4.02 38 x 127 x 102 Weight Pounds Kilograms Device 5.16 2.34 Certification Unit CE, FCC AT-HDVS-150-TX / AT-HDVS-150-TX-PSK...
-
Page 18: Index
Safety information Specifications Switching auto DC 48V port Display controlling the power Warranty DISPLAY ON/OFF button FCC statement Features Firmware FW port updating HDBaseT OUT port HDMI 1 port HDMI 2 indicator port INPUT SELECT button Installation AT-HDVS-150-TX / AT-HDVS-150-TX-PSK... - Page 19 877.536.3976 © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.
