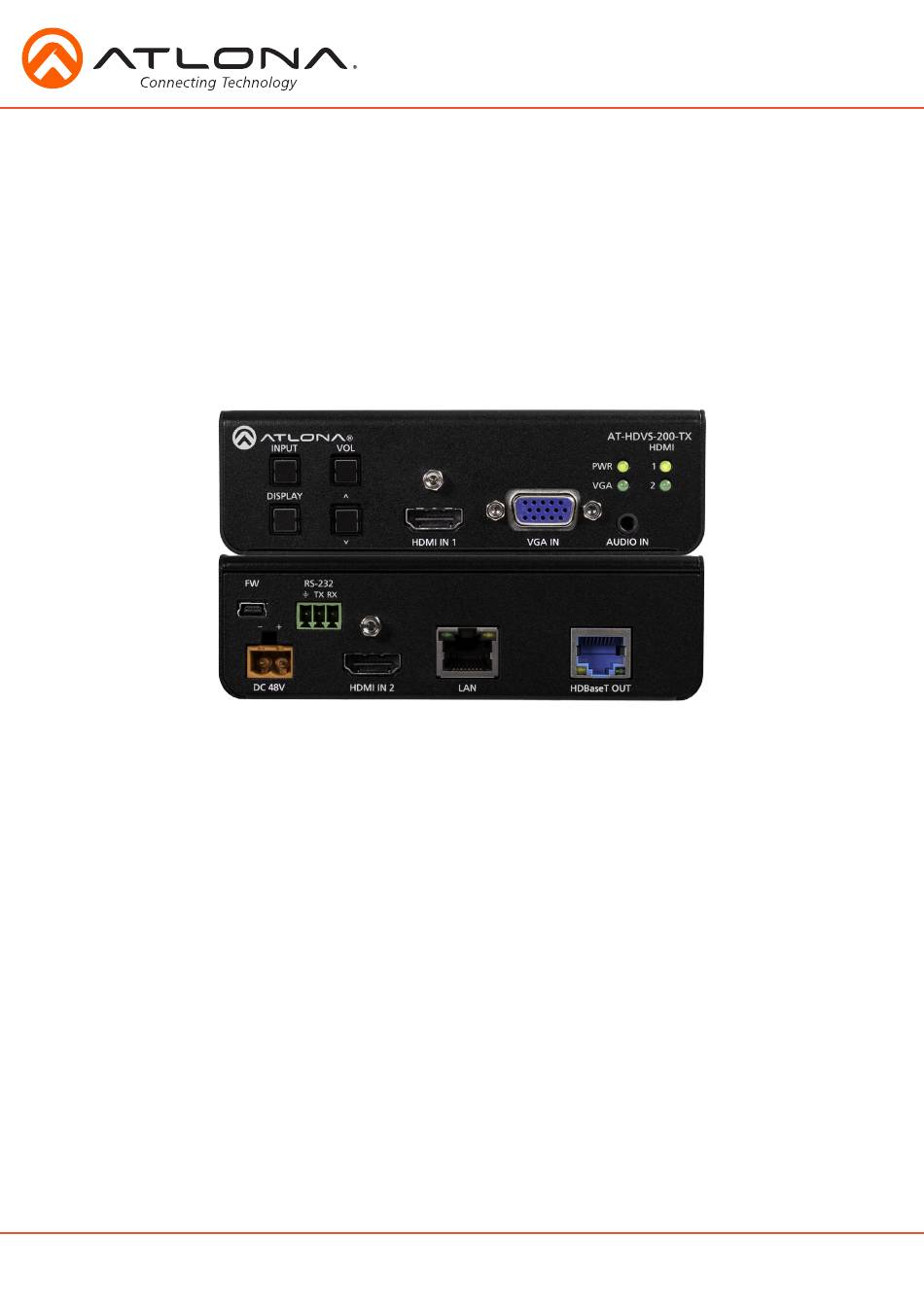

Three-Input Switcher for HDMI and
VGA Sources with Automatic Display
Control and Ethernet-Enabled
HDBaseT Output
AT-HDVS-200-TX-PSK Installation Guide
Please check http://www.atlona.com/product/AT-HDVS-200-
TX-PSK for the most recent firmware update or manual.

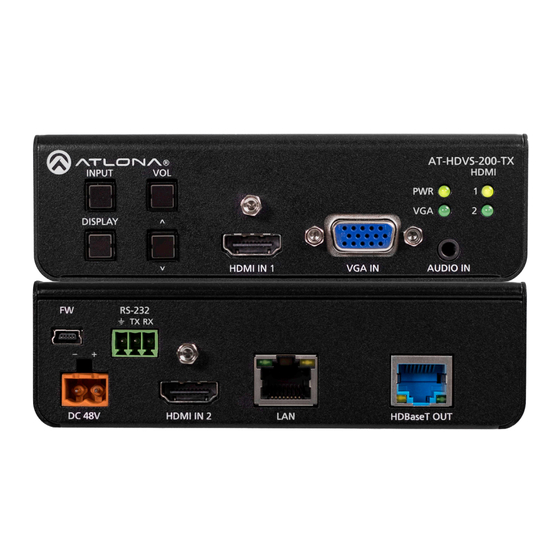

The Atlona AT-HDVS-200-TX-PSK is a 3×1 switcher with two HDMI inputs, a VGA input with audio,
and an HDBaseT output. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling,
plus embedded audio and control signals can be transmitted up to 330 feet (100 meters). The
two-channel audio input can be assigned to any of the video inputs and embedded for HDBaseT
transmission. The AT-HDVS-200-TX-PSK is identical to the AT-HDVS-200-TX, with the addition
of local powering capability and an external power supply. This makes it ideal for extending AV
and control directly to a projector with an HDBaseT input. The AT-HDVS-200-TX-PSK can serve
as the central component of a small, automated AV system by sending control commands to the
projector via RS-232 or Ethernet, and through automatic input selection. With automatic display
control, the AT-HDVS-200-TX-PSK powers the projector on or off whenever a source is connected
or disconnected from the unit.
Package Contents
• 1 x AT-HDVS-200-TX-PSK
• 1 x 48V power supply
• 1 x Captive screw connector
(3 pin: RS-232)
• 1 x Pair of mounting brackets
• 1 x Installation Guide
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-HDVS-200-TX-PSK
Summary of Contents for Atlona AT-HDVS-200-TX-PSK
- Page 1 TX-PSK for the most recent firmware update or manual. The Atlona AT-HDVS-200-TX-PSK is a 3×1 switcher with two HDMI inputs, a VGA input with audio, and an HDBaseT output. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio and control signals can be transmitted up to 330 feet (100 meters).
- Page 2 HDBaseT OUT 1. FW port: Firmware update port, connect a mini USB to USB A cable to a computer Firmware is downloadable through http://www.atlona.com/products/AT-HDVS-200-TX/ 2. RS-232 port: Connect control system here 3. DC 48V port: Connect included power supply here 4.
- Page 3 Use the screws at the upper contact plate and hold contact bar to release the top of the connector to compress the wires in place. wires. the wire against the contact plate. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 4 1. Use the IPCFG command to display the IP address. Launch a web browser and enter the IP address of the switcher. A login screen will appear (this is the same log in for admin and general users). The login for the webGUI will be username “root” and password “Atlona”. Toll free: 1-877-536-3976 atlona.com...
- Page 5 Dry CC Laptop Video Control Document Camera AT-HDVS-200-TX INPUT HDMI DISPLAY HDMI IN 1 VGA IN AUDIO IN RS-232 AT-HDVS-200-TX-PSK DC 48V HDBaseT OUT Audio Video Media Player AT-PA100-G2 Drop down projector screen (contact closure controlled) AT-HDVS-200-RX AUDIO RS-232 MENU...
- Page 6 Video Ethernet Audio Video Laptop Document Camera AT-HDVS-200-TX INPUT HDMI DISPLAY HDMI IN 1 VGA IN AUDIO IN RS-232 AT-HDVS-200-TX-PSK DC 48V HDBaseT OUT Video MENU Media Player AT-UHD-CLSO-824 ENTER MASTER LINE LINE RX TX RX TX RX TX RX TX...
- Page 7 AMS. 5. How do I switch between DHCP and Static IP modes? For the AT-HDVS-200-TX-PSK, DHCP can be turned on/off by pressing the INPUT button for 15 seconds. For the AT-HDVS-200-RX, DHCP can be turned on/off by pressing the AUTO button for 15 seconds.
