Atlona AT-HDVS-210H-TX-WP Manual

2x1 switcher and hdbaset transmitter with two hdmi inputs
Hide thumbs Also See for AT-HDVS-210H-TX-WP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

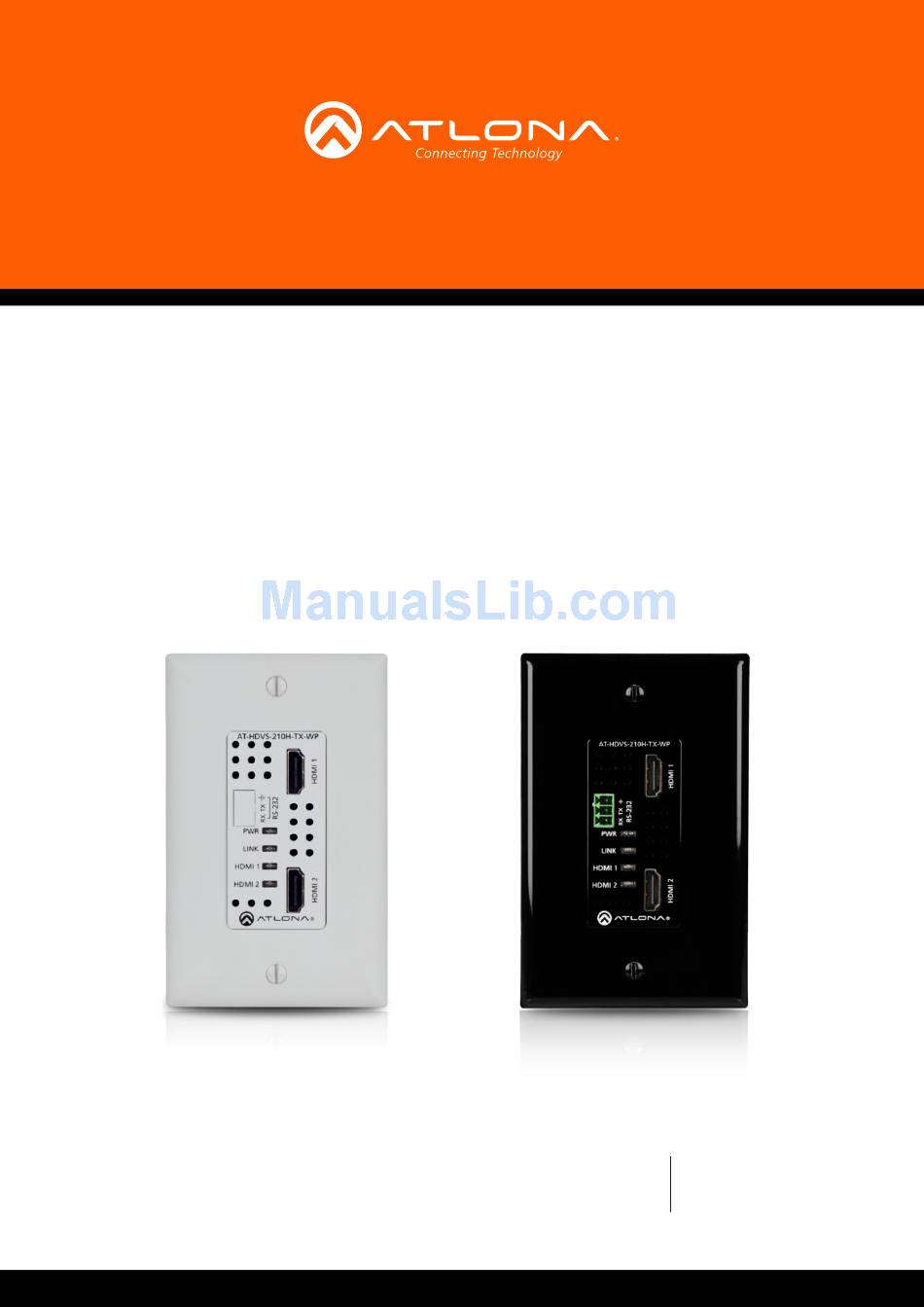

4K / UHD
Two-Input Wallplate Switcher for HDMI
with Ethernet-Enabled HDBaseT
Output
™
AT-HDVS-210H-TX-WP
Atlona Manuals
Switchers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HDVS-210H-TX-WP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-HDVS-210H-TX-WP

Summary of Contents for Atlona AT-HDVS-210H-TX-WP

  • Page 1 4K / UHD Two-Input Wallplate Switcher for HDMI with Ethernet-Enabled HDBaseT Output ™ Atlona Manuals AT-HDVS-210H-TX-WP Switchers...

  • Page 2: Version Information

    Version Information Version Release Date Notes 11/17 Initial release AT-HDVS-210H-TX-WP...

  • Page 3: Operating Notes

    Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take an extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
  • Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.

  • Page 6: Important Safety Information

    Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. AT-HDVS-210H-TX-WP...
  • Page 7 System Settings TCP/IP Settings of Controlled Devices RS-232 / IP Commands RS-232 page EDID page Config page System page HDBT page Commands Appendix Internal EDID Data Updating the Firmware Using the Web GUI Using USB Default Settings Specifications Index AT-HDVS-210H-TX-WP...

  • Page 8: Introduction

    AT-UHD-EX-100CE-RX-PSE receiver, but can also be used with the AT-HDVS-200-RX and AT-HDVS- 150-RX receiver, as well as Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control.

  • Page 9: Panel Description

    HDMI 1 / HDMI 2 Connect an HDMI cable from each of these ports to a UHD/HD source. HDBaseT OUT Connect an Ethernet cable from this port to a locally-powered HDBaseT receiver such as the AT-HDVS-200-RX, AT-HDVS-150-RX, or AT-UHD-EX-100CE-RX-PSE. AT-HDVS-210H-TX-WP...

  • Page 10: Installation

    Installation RS-232 Connector The AT-HDVS-210H-TX-WP provides RS-232 control between an automation system and an RS-232 device. This step is optional. 1. Remove the small plate covering the RS-232 port on the faceplate. small plate X - W X - W...

  • Page 11: Connection Instructions

    5. OPTIONAL: Connect an RS-232 control system to the RS-232 port on the switcher. This port is used to control functions of the AT-HDVS-210H-TX-WP, such as volume up/down, display on/off, etc. No power supply is required for the AT-HDVS-210H-TX-WP. This unit will be powered over the Ethernet cable, from a compatible HDBaseT receiver.

  • Page 12: Connection Diagram

    AT-VGW-250 White Decora ® -style wallplate (included) -T X 21 0H V S- A T- LI N AV LAN AT-HDVS-210H-TX-WP Laptop AT-VTP-550-BL Blu-ray player Figure 2 Projector 1-gang electrical box or mud ring Wall cross-section se T AT-PS-POE AT -PS White Decora ®...

  • Page 13: Faceplate Removal And Assembly

    3. Attach the new faceplate and secure it using the four Phillips-head screws. 4. Install the AT-HDVS-210H-TX-WP into the electrical box or mud ring. Make sure to reconnect the Ethernet cable to the HDBaseT OUT port, on the back of the assembly, before reinstalling the unit into the electrical box.

  • Page 14: Ip Configuration

    IP mode. Use one of the following procedures to switch between DHCP and static IP mode. The default static IP address of the AT-HDVS-210H-TX-WP is 192.168.1.254. If the AT-HDVS-210H-TX-WP is unable to detect a DHCP server within 15 seconds, then the unit will set all IP settings to zero.

  • Page 15: Setting The Ip Address Using Commands

    System page (page 31), in the web GUI, allows the AT-HDVS-210H-TX-WP to use either DHCP or static IP mode. In order to access the web GUI, the IP address of the AT-HDVS-210H-TX-WP must be known. Refer to Setting the IP Mode (page 14) for more information.

  • Page 16: Resetting To Factory-Default Settings

    Installation Resetting to Factory-Default Settings Resetting the AT-HDVS-210H-TX-WP requires that the front faceplate be removed. Refer to Faceplate Removal and Assembly (page 13) for more information. 1. Remove the faceplate from the AT-HDVS-210H-TX- 2. Press and hold the Reset button for 15 seconds.

  • Page 17: Accessing The Web Gui

    The Web GUI Accessing the Web GUI The AT-HDVS-210H-TX-WP includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-HDVS-210H-TX-WP, as it provides intuitive management of all features. The AT-HDVS-210H-TX-WP is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit.
  • Page 18 4. Type root, using lower-case characters, in the Username field. 5. Type Atlona in the Password field. This is the default password. The password field is case-sensitive. When the password is entered, it will be masked. The password can be changed, if desired. Refer to the...

  • Page 19: Menu Bar

    OFF. Toggle buttons may also indicate its current setting and, when enabled or set to a particular state, may also provide access to another set of controls or text fields within the Web GUI, as shown with the IP Mode toggle. AT-HDVS-210H-TX-WP...

  • Page 20: Buttons

    Buttons are used to execute an action or setting. Several pages within the Web GUI include a Save button. Clicking the Save button will apply and save all settings in the current page. Other buttons, such as the Factory Default button, under the System page, reset the AT-HDVS-210H-TX-WP to factory-default settings AT-HDVS-210H-TX-WP...

  • Page 21: Info

    The model SKU of this product. Software Version The version of firmware that the AT-HDVS-210H-TX-WP is running. Always make sure to check the AT-HDVS-210H- TX-WP product page, on the Atlona web site, for the latest version of firmware. On-Time (h-m) The time elapsed since the unit was last powered-on.

  • Page 22: A/V Settings

    HDCP content is always transmitted by the source Instructs the source to send non-HDCP content, if possible Output Mutes or un-mutes the audio output. Set the Output toggle to OFF to disable audio on the output. The default setting is ON. AT-HDVS-210H-TX-WP...

  • Page 23: Display

    The Web GUI Display page CEC Command Click the ON or OFF button to turn the display on or off using CEC. AT-HDVS-210H-TX-WP...

  • Page 24: System Settings

    Description This is the default setting. The AT-HDVS-210-TX-WP will make four attempts to send the command, if the feedback string is not acknowledged. After the fourth attempt, the process will fail. Sends the command and ignores the feedback string. AT-HDVS-210H-TX-WP...

  • Page 25: Tcp/Ip Settings Of Controlled Devices

    Enter the username for login. If the IP Mode is set to Non-Login, then this information will not be required. Password Enter the password for login. If the IP Mode is set to Non-Login, then this information will not be required. Save Click this button to save all changes in this window group. AT-HDVS-210H-TX-WP...

  • Page 26: Rs-232 / Ip Commands

    None No end-of-line characters included Carriage return Line feed CR-LF Carriage return + Line feed Space Space character Start-of-text character End-of-text character Null Null character (binary zero) Save Click this button to save all changes in this window group. AT-HDVS-210H-TX-WP...

  • Page 27: Rs-232

    RS-232 page Zone When the AT-HDVS-210H-TX-WP is connected to the AT-HDVS-200-RX, the drop-down list boxes will be disabled and the HDBaseT baud rate will be locked at 115200. If the AT-HDVS-210H-TX-WP is connected to another HDBaseT device, such as the AT-UHD-CLSO-824, each of these drop-down list boxes can be set to the baud rate of the HDBaseT RS-232 settings on the corresponding device.
  • Page 28 The following options are available: None, Odd, or Even. Stop bit Sets the stop bit. Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2. AT-HDVS-210H-TX-WP...

  • Page 29: Edid

    EDID Saved Click this drop-down list to select the memory location to save the downstream EDID. Eight memory locations are available. Once an EDID is saved to a memory location, it can be access from the EDID Settings drop-down lists. AT-HDVS-210H-TX-WP...

  • Page 30: Config

    Config page Old Username This field cannot be changed. “root” is the administrator user. Old Password Enter the current password for the “root” username in this field. The default password is “Atlona”. New Username This field cannot be changed. Save Click this button to save all changes.

  • Page 31: System

    Click this toggle to set the IP mode of the AT-HDVS-210H-TX-WP. The default setting is DHCP. Available settings: STATIC IP, DHCP. Enter the IP address of the AT-HDVS-210H-TX-WP in this field. This field will only be available if IP Mode is set to STATIC IP. The default IP address is 192.168.1.254.
  • Page 32 Click the Factory Default button to set the AT-HDVS-210H-TX-WP to factory-default settings. Firmware Update Click the Choose File button to select the firmware file, when upgrading the firmware on the AT-HDVS-210H-TX-WP. Once the firmware file is selected, click the Update button. Refer to...

  • Page 33: Hdbt

    The Web GUI HDBT page HDBaseT Zone The AT-HDVS-210H-TX-WP has only a single HDBaseT output. Therefore, this drop-down list is disabled. Start Click the Start button to being the HDBaseT testing. During testing, the button text will change to “Stop”. Click the Stop button to halt the HDBaseT testing process.

  • Page 34: Commands

    Commands The following tables provide an alphabetical list of commands available on the AT-HDVS-210H-TX-WP. All commands are case-sensitive and must be entered as documented. If the command fails or is entered incorrectly, then the feedback is “Command FAILED”. IMPORTANT: Each command is terminated with a carriage-return (0x0d) and the feedback is terminated with a carriage-return and line-feed (0x0a).
  • Page 35 Enables or disables audio on the HDMI output help Displays the list of available commands IPAddUser Adds a user for Telnet control IPCFG Displays the current network settings for the AT-HDVS-210H-TX-WP IPDelUser Deletes the specified Telnet user IPDHCP Enables or disables DHCP mode on the AT-HDVS-210H-TX-WP IPLogin...
  • Page 36 Commands Command Description Type Displays the model of the transmitter Version Displays the current firmware version of the AT-HDVS-210H-TX-WP AT-HDVS-210H-TX-WP...
  • Page 37 Sets the time interval, in seconds, before the unit automatically switches to another active input if no signal is received from the current input. Use the sta argument to display the current setting. Syntax ASwOutTime X Parameter Description Range Time interval 3 ... 600, sta Example Feedback ASwOutTime 10 ASwOutTime 10 AT-HDVS-210H-TX-WP...
  • Page 38 Sends the command to power-on the display when an A/V signal is detected. on = enables this feature; off = disables the feature. Use the sta argument to display the current setting. Syntax AutoDispOn X Parameter Description Range Value on, off, sta Example Feedback AutoDispOn on AutoDispOn on AT-HDVS-210H-TX-WP...
  • Page 39 AT-HDVS-210H-TX-WP power state is unchanged; DISPAVSW = the power state of both the display and the AT-HDVS-210H-TX-WP is changed; AVSW = power state of the AT- HDVS-210H-TX-WP power state is changed, but the display power state is unchanged. Use the sta argument to display the current setting.
  • Page 40 Sets the login mode of the controlled device. login = requires login credentials, non-login = no login credentials required. Use the sta argument to display the current setting. Syntax CliMode X Parameter Description Range Value login, non-login, sta Example Feedback CliMode login CliMode login AT-HDVS-210H-TX-WP...
  • Page 41 Commands CliPass Sets the password for the controlled device. Execute the CliPass command without arguments to display the current password. The default password is Atlona. Syntax CliPass X Parameter Description Range Password 20 characters (max.) Example Feedback CliPass R3ind33r CliPass R3ind33r CliPort Sets the listening port for the controlled device.
  • Page 42 Syntax CSpara[W,X,Y,Z] Parameter Description Range Baud rate 2400, 4800, 9600, 19200, 38400, 57600, 115200 Data bits 7, 8 Parity bit None, Odd, Even Stop bits 1, 2 Example Feedback CSpara[115200,8,0,1] CSpara[115200,8,0,1] CSpara[sta] CSpara [115200,8,0,1] AT-HDVS-210H-TX-WP...
  • Page 43 = power on the display, off = power-off the display. Use the sta argument to display the current setting. Syntax DispIP X Parameter Description Range Value on, off, sta Example Feedback DispIP on DispIP on AT-HDVS-210H-TX-WP...
  • Page 44 Example Feedback DispRS on DispRS on EDIDCopy Saves the downstream EDID to the specified internal memory location on the AT-HDVS-210H-TX. Syntax EDIDCopy X Parameter Description Range Destination 1 ... 8 Example Feedback EDIDCopy 2 EDIDCopy 2 AT-HDVS-210H-TX-WP...
  • Page 45 3840x2160@60 4:2:0 2CH int5 1080p 3D MCH int15 3840x2160@60 4:2:0 MCH int6 1080p 3D DD int16 3840x2160@30 4:4:4 2CH int7 720p 2CH int17 3840x2160@60 4:4:4 MCH int8 720p DD int18 4096x2160@60 4:2:0 2CH int9 1280x800 2CH int19 4096x2160@60 4:2:0 MCH AT-HDVS-210H-TX-WP...
  • Page 46 Value Example Feedback hdbt_clear_stat hdbt_clear_stat hdbtperf Executes the HDBaseT test. This test can also be performed through the web GUI. Refer to the HDBT page (page for more information. Syntax hdbt_clear_stat Parameter Description Range Value Example Feedback hdbt_clear_stat hdbt_clear_stat AT-HDVS-210H-TX-WP...
  • Page 47 Enables or disables audio on the HDMI output of the receiver. on = enables HDMI audio output; off = disables HDMI audio output. Use the sta argument to return the current HDMI audio output state. Syntax HDMIAud X Parameter Description Range Value on, off, sta Example Feedback HDMIAud off HDMIAud off AT-HDVS-210H-TX-WP...
  • Page 48 Config page (page 30) of the web GUI for more information. Syntax IPAddUser X Y Parameter Description Range User name 20 characters (max) Password 20 characters (max) Example Feedback IPAddUser BigBoss b055man IPAddUser BigBoss b055man TCP/IP user was added AT-HDVS-210H-TX-WP...
  • Page 49 IPDHCP Enables or disables DHCP mode on the AT-HDVS-210H-TX-WP. on = enables DHCP mode; off = disables DHCP mode; sta = displays the current setting. If this feature is disabled, then a static IP address must be specified for the AT-HDVS-210H-TX-WP.
  • Page 50 Enables or disables the use of login credentials when starting a Telnet session on the AT-HDVS-210H-TX-WP. If this feature is set to on, then the AT-HDVS-210H-TX-WP will prompt for both the username and password. Use the same credentials as the web GUI. on = login credentials required; off = no login required. Use the sta argument to display the current setting.
  • Page 51 Commands IPStatic Sets the static IP address, subnet mask, and gateway (router) address of the AT-HDVS-210H-TX-WP. Before using this command, DHCP must be disabled on the AT-HDVS-210H-TX-WP. Refer to the IPDHCP command for more information. Each argument must be entered in dot-decimal notation and separated by a space. The default static IP address is 192.168.1.254.
  • Page 52 This command will place the AT-HDVS-210H-TX in a “power-off” (standby) state When the unit is in the “off” state, the PWR LED indicator will glow solid red and no video will pass from the transmitter to the receiver. Syntax PWOFF This command does not require any parameters Example Feedback PWOFF PWOFF AT-HDVS-210H-TX-WP...
  • Page 53 PWSTA RS232para Sets the baud rate, data bits, parity bit, and stop bits for the RS-232 port on the AT-HDVS-210H-TX-WP. Each argument must be separated by a comma; no spaces are permitted. Brackets must be included when typing this command. Use the sta argument, without brackets and including a space, to display the current settings.
  • Page 54 RS232zone[command] SetCmd Defines the command used by the AT-HDVS-210H-TX-WP, to perfom the specified function on the display (sink) device. For example, to define the “power off” command, locate the equivalent “power off” command for the display by consulting the display’s User Manual. Once the desired command is located, assign it to the equivalent command used by the AT-HDVS-210H-TX-WP.
  • Page 55 If set to on, then the AT-HDVS-210-TX-WP will make four attempts to send the command, if the feedback string is not acknowledged. After the fourth attempt, the process will fail. Syntax SetFbVerify X Parameter Description Range Value on, off, sta Example Example SetFbVerify on SetFbVerify on AT-HDVS-210H-TX-WP...
  • Page 56 This command does not require any parameters Example Feedback Status x2AVx1 TrigCEC Triggers the specified command to the display using CEC. Syntax TrigCEC X Parameter Description Range Value on, off, vol+, vol-, mute Example Feedback TrigCEC on TrigCEC on AT-HDVS-210H-TX-WP...
  • Page 57 Syntax TrigRS X Parameter Description Range Value on, off, vol+, vol-, mute Example Feedback TrigRS vol- TrigRS vol- Type Displays the model information of the AT-HDVS-210H-TX-WP. Syntax Type This command does not require any parameters Example Feedback Type AT-HDVS-210H-TX-WP AT-HDVS-210H-TX-WP...
  • Page 58 Commands Version Displays the current firmware version of the AT-HDVS-210H-TX-WP. Do not add a space between the X parameter and the command. Syntax VersionX Parameter Description Range Value MCU, VSTX, VSRX Example Feedback VersionVSTX V31.31.5 AT-HDVS-210H-TX-WP...

  • Page 59: Appendix

    Appendix Internal EDID Data The AT-HDVS-210H-TX-WP comes with 19 preprogrammed EDID selections. The timing and audio summary (if applicable) for each EDID, is listed below. Raw data is also provided and can be used to view the full EDID structure.
  • Page 60 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0 5A 00 00 00 18 00 00 63 AT-HDVS-210H-TX-WP...
  • Page 61 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0 5A 00 00 00 18 26 36 80 A0 70 38 1F 40 30 20 25 00 A0 5A 00 00 00 1A 00 00 7E AT-HDVS-210H-TX-WP...
  • Page 62 60Hz - HDTV (16:9, 1:1) [Native] 1280 x 720p at 60Hz - HDTV (16:9, 1:1) 1920 x 1080i at 60Hz - HDTV (16:9, 1:1) 1920 x 1080p at 24Hz - HDTV (16:9, 1:1) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) AT-HDVS-210H-TX-WP...
  • Page 63 60Hz - HDTV (16:9, 1:1) [Native] 1280 x 720p at 60Hz - HDTV (16:9, 1:1) 1920 x 1080i at 60Hz - HDTV (16:9, 1:1) 1920 x 1080p at 24Hz - HDTV (16:9, 1:1) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) AT-HDVS-210H-TX-WP...
  • Page 64 60Hz - HDTV (16:9, 1:1) [Native] 1280 x 720p at 60Hz - HDTV (16:9, 1:1) 1920 x 1080i at 60Hz - HDTV (16:9, 1:1) 1920 x 1080p at 24Hz - HDTV (16:9, 1:1) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) AT-HDVS-210H-TX-WP...
  • Page 65 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 5B AT-HDVS-210H-TX-WP...
  • Page 66 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 49 AT-HDVS-210H-TX-WP...
  • Page 67 25Hz - HDTV (16:9, 1:1) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) 640 x 480p at 60Hz - Default (4:3, 1:1) CE audio data (formats supported) LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz CE speaker allocation data FL/FR AT-HDVS-210H-TX-WP...
  • Page 68 00 9E 8C 0A D0 90 20 40 31 20 0C 40 55 00 00 00 00 00 00 18 01 1D 00 BC 52 D0 1E 20 B8 28 55 40 00 00 00 00 00 1E 00 04 AT-HDVS-210H-TX-WP...
  • Page 69 25Hz - HDTV (16:9, 1:1) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) 640 x 480p at 60Hz - Default (4:3, 1:1) CE audio data (formats supported) LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz CE speaker allocation data FL/FR AT-HDVS-210H-TX-WP...
  • Page 70 00 00 00 FD 00 32 4C 18 5E 11 00 0A 20 20 20 20 20 20 00 00 00 FC 00 41 54 4C 20 31 30 38 30 50 20 44 56 49 00 00 00 FF 00 33 43 4D 32 32 37 30 32 39 53 0A 20 20 00 4A AT-HDVS-210H-TX-WP...
  • Page 71 00 00 00 FF 00 52 53 34 31 30 33 39 30 36 35 35 37 0A 00 00 00 FD 00 32 78 1F 64 11 00 0A 20 20 20 20 20 20 00 00 00 FC 00 41 54 4C 20 50 43 57 58 47 41 44 56 49 00 24 AT-HDVS-210H-TX-WP...
  • Page 72 25Hz - HDTV (16:9, 1:1) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) 640 x 480p at 60Hz - Default (4:3, 1:1) CE audio data (formats supported) LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz CE speaker allocation data FL/FR AT-HDVS-210H-TX-WP...
  • Page 73 720 x 480p at 60Hz - EDTV (4:3, 8:9) 720 x 480p at 60Hz - EDTV (4:3, 8:9) 720 x 480p at 60Hz - EDTV (4:3, 8:9) CE audio data (formats supported) LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz AT-HDVS-210H-TX-WP...
  • Page 74 680k max. bit rate at 32/44/48 kHz 6-channel, 1536k max. bit rate at 32/44/48/88/96 kHz 8-channel at 32/44/48 kHz DVD-A 8-channel at 48/96/192 kHz DTS-HD 8-channel, 16-bit at 44/48/88/96/176/192 kHz CE speaker allocation data FL/FR, FLFE, FC, RL/RR, RC, RLC/RRC AT-HDVS-210H-TX-WP...
  • Page 75 5A 00 00 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 1D AT-HDVS-210H-TX-WP...
  • Page 76 60Hz - Doublescan (16:9, 32:27) 720 x 480i at 60Hz - Doublescan (16:9, 32:27) CE audio data (formats supported) LPCM 2-channel, 16/20/24 bit depths at 32/44/48/96/192 kHz LPCM 2-channel, 16/20/24 bit depths at 32/44/48/96/192 kHz LPCM 2-channel, 16/20/24 bit depths at 32/44/48/96/192 kHz AT-HDVS-210H-TX-WP...
  • Page 77 5A 00 00 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 1D AT-HDVS-210H-TX-WP...
  • Page 78 8-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz AC-3 6-channel, 680k max. bit rate at 32/44/48 kHz 6-channel, 1536k max. bit rate at 32/44/48/88/96 kHz 8-channel at 32/44/48 kHz DVD-A 8-channel at 48/96/192 kHz DTS-HD 8-channel, 16-bit at 44/48/88/96/176/192 kHz AT-HDVS-210H-TX-WP...
  • Page 79 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 00 00 60 AT-HDVS-210H-TX-WP...
  • Page 80 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2B AT-HDVS-210H-TX-WP...
  • Page 81 5A 00 00 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 10 AT-HDVS-210H-TX-WP...

  • Page 82: Updating The Firmware

    Appendix Updating the Firmware Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, if a network connection is not available, the AT-HDVS-210H- TX-WP firmware can be updated using a USB-A to USB mini-B cable.

  • Page 83: Using Usb

    USB-A to USB mini-B cable 1. Disconnect power from the AT-HDVS-210H-TX-WP, by disconnecting the Ethernet cable from the HDBaseT OUT port on the unit. 2. Remove the wall plate from the AT-HDVS-210H-TX-WP. Refer to Faceplate Removal and Assembly (page 13) necessary.
  • Page 84 Appendix 3. Connect the USB-A to USB mini-B cable between the PC and the firmware port on the AT-HDVS-210H-TX-WP. The unit will be powered by the USB cable. 4. The USB UPDATE folder will be displayed. If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer.

  • Page 85: Default Settings

    Appendix Default Settings The following tables list the factory-default settings for the AT-HDVS-210H-TX-WP. Feature Settings A/V Settings Input Selection Input 1 Auto Switch Mode Fallback Port Previous Fallback Time 5 (seconds) HDCP Setting (Input 1) HDCP Setting (Input 2) Audio Output...

  • Page 86: Specifications

    Celsius Operating 32 to 122 0 to 50 Storage -4 to 140 -20 to 60 Humidity (RH) 20% to 90%, non-condensing Power Consumption Dimensions Wall 1 gang Weight Pounds Kilograms Device 0.4 lbs 0.18 kg Certification Unit CE, FCC AT-HDVS-210H-TX-WP...

  • Page 87: Index

    Features IPLogin Firmware IPPort updating Updating firmware IPQuit using the web GUI Users IPStatic 50, 51 using USB adding IPTimeout primary user name Mreset removing ProjSWMode ProjWarmUpT HDBT PWOFF testing PWON Warranty PWSTA Web GUI RS232para accessing RS232zone Input AT-HDVS-210H-TX-WP...
  • Page 88 • 408.962.0515 • 877.536.3976 © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
