Atlona AT-HDVS-200-TX-WP-BLK Manual

Two-input wallplate switcher for hdmi and vga with ethernet-enabled hdbaset output
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

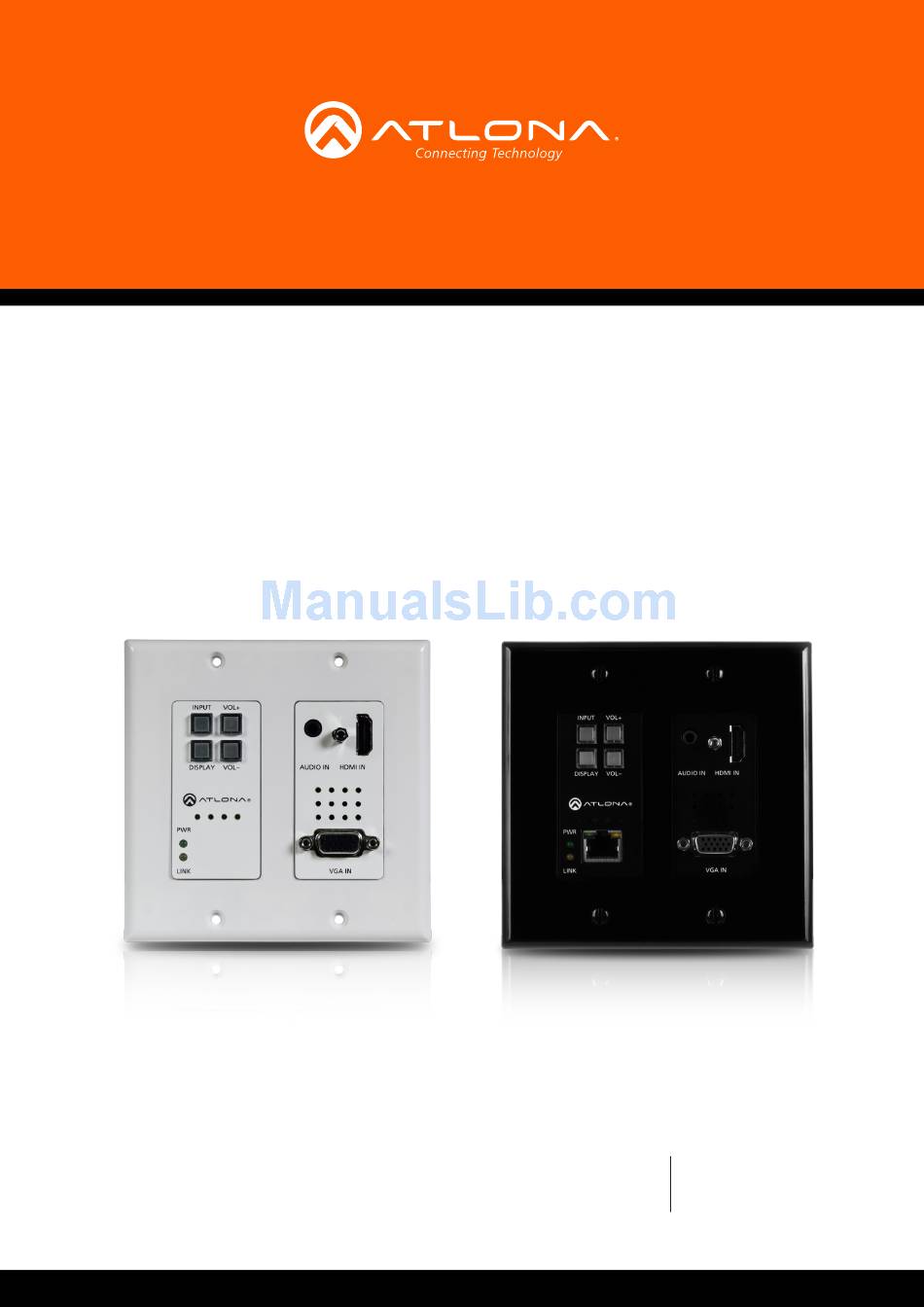

Two-Input
Wallplate Switcher for HDMI and VGA
with Ethernet-Enabled HDBaseT Output
AT-HDVS-200-TX-WP
AT-HDVS-200-TX-WP-BLK
Atlona Manuals
Switchers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HDVS-200-TX-WP-BLK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-HDVS-200-TX-WP-BLK

Summary of Contents for Atlona AT-HDVS-200-TX-WP-BLK

  • Page 1 Two-Input Wallplate Switcher for HDMI and VGA with Ethernet-Enabled HDBaseT Output AT-HDVS-200-TX-WP Atlona Manuals AT-HDVS-200-TX-WP-BLK Switchers...

  • Page 2: Version Information

    Version Information Version Release Date Notes 01/16 Initial release 07/17 New format AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 3: Operating Notes

    Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
  • Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.

  • Page 6: Important Safety Information

    FCC regulations. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 7: Table Of Contents

    TCP/IP Settings of Controlled Devices RS-232 / IP Commands RS-232 page EDID page Config page System page Kit Mode Video Audio RS-232 Commands Appendix Updating the Firmware Using the Web GUI Using USB Default Settings Specifications Index AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 8: Introduction

    Introduction The Atlona AT-HDVS-200-TX-WP is a 2×1 switcher and HDBaseT transmitter with an HDMI input plus a VGA input with audio. The HDVS-200-TX-WP features a US two-gang, Decora-style wallplate form factor. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100 meters).

  • Page 9: Panel Description

    Press these buttons to increase or decrease the device. volume level on the display. Connect a mini USB to USB-A type cable from this port to a computer to update the firmware. Refer to Updating the Firmware (page 67) for more information. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 10: Installation

    7. OPTIONAL: Connect an RS-232 control device to the RS-232 port on the switcher. This port is used to control functions of the AT-HDVS-200-TX-WP, such as volume up/down, display on/off, etc. No power supply is required for the AT-HDVS-200-TX-WP. This unit will be powered over the Ethernet cable, from an HDBaseT receiver. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 11: Faceplate Removal And Assembly

    4. Install the AT-HDVS-200-TX-WP into the electrical box or mud ring. If the Ethernet cable was disconnected from the AT-HDVS-200-TX-WP during disassembly, make sure to reconnect it before reinstalling the unit into the electrical box. 5. Reattach the wallplate, securing the assembly in place. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 12: Connection Diagram

    -2 0 A T- LI N R S- D IO Wall cross-section Projector Screen 2-gang electrical box or mud ring IN P D IO P L A D IS A IN L IN Laptop AT-HDVS-200-TX-WP Desktop PC AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 13: Ip Configuration

    37), for more information. All commands and their arguments are case-sensitive. • Setting static IP mode 1. Connect to the AT-HDVS-200-TX-WP using RS-232 or Telnet. 2. At the command line, execute the IPDHCP command using the off argument, as shown. IPDHCP off AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 14: Using The Web Gui

    1. Open the desired web browser and enter the IP address of the AT-HDVS-200-TX-WP. 2. Log in, using the required credentials. The factory-default username and password are listed below: Username: root Password: Atlona 3. Click the System tab. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 15 4. Click the IP Mode toggle to switch between the DHCP and STATIC IP setting. When set to STATIC IP, the IP, Netmask, and Gateway fields can be modified. 5. Click the Save button to save the changes. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 16: The Web Gui

    The Web GUI Introduction to the Web GUI The AT-HDVS-200-TX-WP includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-HDVS-200-TX-WP, as it provides intuitive management of all features. The AT-HDVS-200-TX-WP is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit.

  • Page 17: Menu Bar

    4. Type root, using lower-case characters, in the Username field. 5. Type Atlona in the Password field. This is the default password. The password field is case-sensitive. When the password is entered, it will be masked. The password can be changed, if desired. Refer to the...

  • Page 18: Toggles

    OFF. Toggle buttons may also indicate its current setting and, when enabled or set to a particular state, may also provide access to another set of controls or text fields within the Web GUI, as shown with the IP Mode toggle. Sliders Click and drag slider controls to change their value. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 19: Buttons

    Buttons are used to execute an action or setting. Several pages within the Web GUI include a Save button. Clicking the Save button will apply and save all settings in the current page. Other buttons, such as the Factory Defaults button, under the System page, will reset the AT-HDVS-200-TX-WP to factory-default settings. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 20: Info Page

    Software Version The version of firmware that the AT-HDVS-200-TX-WP is running. Always make sure to check the AT-HDVS-200-TX- WP product page, on the Atlona web site, for the latest version of firmware. VALENS Version The version of firmware used by the Valens chipset.

  • Page 21: Video Page

    Click the Fallback Time (Sec) drop-down list and select the time interval before the switcher attempts to search for the next port. Range: 3 to 600. When the system is in kit mode, additional options will be available. Refer to Kit Mode (page 33) for more information. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 22: Audio Page

    Click and drag this slider bar to adjust the bass of the audio output. Range: -12 to 15. Output Treble Click and drag this slider bar to adjust the treble of the audio output. Range: -12 to 15. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 23 Click and drag this slider bar to adjust the bass of the audio output. Range: -12 to 15. Output Treble Click and drag this slider bar to adjust the treble of the audio output. Range: -12 to 15. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 24: Display Page

    The Web GUI Display page CEC Command Click the ON button to send the power-on command to the display device. Click the OFF button to toggle the power state to off. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 25: System Settings

    This is the default setting. The AT-HDVS-200-TX-WP will make four attempts to send the command, if the feedback string is not acknowledged. After the fourth attempt, the process will fail. Sends the command and ignores the feedback string. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 26: Tcp/Ip Settings Of Controlled Devices

    Requires a username and password to control the display through TCP/IP. IP Address Enter the IP address of the display in this field. Port Enter the listening port of the device in this field. Username Enter the username for login. Password Enter the password for login. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 27: Rs-232 / Ip Commands

    Click this drop-down list to select the desired end-of-line characters to be sent. Setting Description None No end-of-line characters included Carriage return Line feed CR-LF Carriage return + Line feed Space Space character Start-of-text character End-of-text character Null Null character (binary zero) AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 28: Rs-232 Page

    The following options are available: None, Odd, or Even. Stop bit Sets the stop bit. Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 29: Edid Page

    Auto - Automatically detects the presence of HDCP-compliant sink devices. If an HDCP-compliant display is detected, then HDCP content will be sent. Otherwise, non-HDCP content will be sent. NOTE: The HDCP control feature does not provide decryption of HDCP content to non-HDCP sink devices. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 30: Config Page

    Config page Old Username This field cannot be changed. “root” is the administrator user. Old Password Enter the current password for the “root” username in this field. The default password is “Atlona”. New Username This field cannot be changed. Save Click this button to save all changes.

  • Page 31: System Page

    By default, broadcast mode is set to off. When set to on, changes in the web GUI will also be affected on the control system (if connected), via TCP/IP. To separate control between web GUI and Telnet, set this feature off. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 32 Updating the Firmware (page 67) for more information. Valens Update Click the Choose File button to select the Valens firmware file, when upgrading the Valens chip on the AT-HDVS-200- TX-WP. Once the firmware file is selected, click the Update button. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 33: Kit Mode

    Set the aspect ratio to 16:10; typical aspect ratio for computer and tablet displays. Sets the aspect ratio to 4:3; if the input signal is 16:9 or 16:10, up to 30% of the vertical resolution is lost. Keep Ratio The output aspect ratio is the same as the input. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 34 Adjusts the hue of the output signal. Range: 0 - 128 Sharpness Adjusts the sharpness of the output signal. Range: 0 - 128 Reset all Picture Click this button to reset the above picture settings to their factory-default settings. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 35: Audio

    The analog source, connected to the AUDIO IN port, will be used. HDMI Audio Click this toggle to the OFF position to mute only the HDMI audio. L/R Audio Click this toggle to the OFF position to mute all audio on the output. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 36 Sets the stop bit. Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2. NOTE: In the illustration above, note that the Zone RS-232 settings are “locked” because the system is in kit mode. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 37: Commands

    Sets the control type for communcation with the display device CTRST Sets the picture contrast DispBtn Simulates pressing the DISPLAY button on the front panel DispCEC Sets the display command type to CEC DispIP Sets the display command type to IP AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 38 Send a command to the HDBT device RxRSparaZ Specifies the RS-232 settings for the RS-232 1 port on the receiver SATRT Sets the picture color saturation SetCmd Assigns an RS-232 or IP command to the specified button on the front panel AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 39 Set the preferred timing for the VGA input VidOutRes Sets the video output resolution VolKeyOPT Defines the function method of the VOL button on the front panel VOUT Increases or decreases the audio volume VOUTMute Mutes or unmutes the audio AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 40 Sets the aspect ratio of the output signal. The default setting is Full. Use the sta argument to display the current setting. Syntax Aspect X Parameter Description Range Aspect ratio 0 = Full 1 = 16:9 2 = 16:10 3 = 4:3 4 = Keep Ratio Example Feedback Aspect 1 Aspect 1 AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 41 Use the sta argument to display the current setting. Syntax ASwPrePort X Parameter Description Range Port 1 = HDMI IN 1 2 = HDMI IN 2 3 = VGA IN Prev = Previous Example Feedback ASwPrePort 1 ASwPrePort 1 AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 42 Sends the command to power-on the display when an A/V signal is detected. Use the on argument to enable this feature. Use the sta argument to return the current setting. Syntax AutoDispOn X Parameter Description Range Value on, off, sta Example Feedback AutoDispOn on AutoDispOn on AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 43 1 value, respectively. Syntax BASS X Parameter Description Range Value -12 ... 15, sta Example Feedback BASS -5 BASS -5 BASS + BASS -4 AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 44 Example Feedback Broadcast on Broadcast on Sets the picture brightness. Use the sta argument to display the current brightness setting. Syntax BRT X Parameter Description Range Value 0 ... 100, sta Example Feedback BRT 60 BRT 60 AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 45 Example Feedback CliMode login CliMode login CliPass Sets the password for the controlled device. Execute the CliPass command without arguments to display the current password. The default password is Atlona. Syntax CliPass X Parameter Description Range Password...
  • Page 46 CliPort 30 CliUser Sets the username for the controlled device. Execute the CliUser command without arguments to display the current username. Syntax CliUser X Parameter Description Range Username 20 characters (max) Example Feedback CliUser BigBoss CliUser BigBoss AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 47 Example Feedback CtlType cec CtlType cec CTRST Sets the picture contrast. Use the sta argument to display the current setting. Syntax CTRST X Parameter Description Range Contrast 0 ... 100, sta Example Feedback CTRST 65 CTRST 65 AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 48 Enables or disables the display command protocol to IP. on = enable IP, off = disable IP, sta = displays the current setting. Syntax DispIP X Parameter Description Range Setting on, off, sta Example Feedback DispIP on DispIP on AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 49 Enables or disables the display command protocol to RS-2232. on = enable RS-232, off = disable RS-232, sta = displays the current setting. Syntax DispRS X Parameter Description Range Setting on, off, sta Example Feedback DispRS on DispRS on AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 50 Disabling this feature will not decrypt HDCP content. on = enables HDCP detection; off = disables HDCP detection; sta = displays the current setting. Syntax HDCPSet X Y Parameter Description Range Value 1 ... 2 Value on, off, sta Example Feedback HDCPSet 1 on HDCPSet 1 on AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 51 Displays the list of available commands. To obtain help on a specific command, enter the help command followed by the name of the command. Syntax help X Parameter Description Range Command name (optional) Command Example Feedback help Command List: ----------------- help Input Version AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 52 Config page (page 30) of the web GUI for more information. Syntax IPAddUser X Y Parameter Description Range User name 20 characters (max) Password 20 characters (max) Example Feedback IPAddUser BigBoss b055man IPAddUser BigBoss b055man TCP/IP user was added AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 53 = displays the current setting. If this feature is disabled, then a static IP address must be specified for the AT-HDVS-200-TX-WP. Refer to the IPStatic command for more information. Syntax IPDHCP X Parameter Description Range Value on, off, sta Example Feedback IPDHCP on IPDHCP on AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 54 IPStatic X Y Z Parameter Description Range IP address 0 ... 255 (per byte) Subnet mask 0 ... 255 (per byte) Gateway (router) 0 ... 255 (per byte) Example Feedback IPStatic 192.168.1.112 255.255.255.0 192.168.1.1 IPStatic 192.168.1.112 255.255.255.0 192.168.1.1 AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 55 Syntax LRAUD X Parameter Description Range Value on, off, sta Example Feedback LRAUD off LRAUD off Mreset Resets the AT-HDVS-200-TX-WP to factory-default settings. Syntax MReset This command does not require any parameters Example Feedback Mreset Mreset AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 56 Sets the time interval before the “display on” command is sent. This value should be the same as the projector’s delay setting. Use the sta argument to display the current setting. Syntax ProjSWMode X Parameter Description Range Time interval 0 ... 300, sta Example Feedback ProjSWMode 120 ProjSWMode 120 AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 57 Use the sta argument, without brackets and including a space, to display the current settings. Syntax RS232para[W,X,Y,Z] Parameter Description Range Baud rate 2400, 9600, 19200, 38400, 56000, 57600, 115200 Data bits 7, 8 Parity bit None, Odd, Even Stop bits 1, 2 Example Feedback RS232para[115200,8,0,1] RS232para[115200,8,0,1] RS232para sta RS232para[115200,8,0,1] AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 58 Use the sta argument, without brackets and including a space, to display the current settings. Syntax RxRSparaZV[W,X,Y,Z] Parameter Description Range Port Baud rate 2400, 9600, 19200, 38400, 56000, 57600, 115200 Data bits 7, 8 Parity bit None, Odd, Even Stop bits 1, 2 Example Feedback RxRSparaZ1[115200,8,0,1] RxRSparaZ1[115200,8,0,1] RxRSparaZ1 sta RxRSparaZ1[115200,8,0,1] AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 59 RS-232 / IP Commands (page 27) section for more information. Syntax SetEnd X[Y] Parameter Description Range Command on, off, vol+, vol-, mute, fbkon, fbkoff, fbkmute EOL character None, CR, LF, CR-LF, Space, STX, ETX, null Example Feedback SetEnd off[CR-LF] SetEnd off[CR-LF] AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 60 Example Feedback SetStrgType ascii SetStrgType ascii SHARP Sets the picture sharpness. Use the sta argument to display the current setting. Syntax SHARP X Parameter Description Range Sharpness 0 ... 100, sta Example Feedback SHARP 70 SHARP 70 AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 61 1 value, respectively. To display the current value, use the sta argument. Syntax TREBLE X Parameter Description Range Value -12 ... 15, sta Example Feedback Treble 7 Treble 7 Treble - Treble 6 AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 62 Example Feedback TrigIP vol+ TrigIP vol+ TrigRS Trigger the specified command to the display using RS-232. Syntax TrigRS X Parameter Description Range Value on, off, vol+, vol-, mute Example Feedback TrigRS vol- TrigRS vol- AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 63 Example none Update MCU Version Displays the current firmware version of the AT-HDVS-200-TX-WP. Do not add a space between the X parameter and the command. Syntax VersionX Parameter Description Range Value MCU, VSTX Example Feedback VersionMCU V1.1.28 AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 64 0 ... 8 Input Timing List 4 = 1280x720 0 = Default 5 = 1920x1200 1 = 1280x800 6 = 1366x768 2 = 1920x1080 7 = 800x600 3 = 1024x768 8 = 1600x900 Example Feedback PrefTimg 3 PrefTimg 3 AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 65 Defines how the VOL button will be used to control a device. 0 = controls the volume using the HDVS, 1 = control using RS-232, 2 = control using IP. Use the sta argument to display the current setting. Syntax VolKeyOPT Parameter Description Range Value 0 ... 2, sta Example Feedback VolKeyOPT VolKeyOPT AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 66 VOUT 5 VOUTMute Mutes or unmutes the audio. on = enables muting; off = disables muting; sta = displays the current setting. Syntax VOUTMute X Parameter Description Range Value on, off, sta Example Feedback VOUTMute on VOUTMute on AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 67: Appendix

    Appendix Updating the Firmware Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, if a network connection is not available, the AT-HDVS-200- TX-WP firmware can be updated using a USB-A to USB mini-B cable...

  • Page 68: Using Usb

    USB-A to USB mini-B cable DISPLAY VOL- AUDIO IN HDMI IN 1. Disconnect power from the AT-HDVS-200-TX-WP. 2. Remove the wall plate from the AT-HDVS-200-TX-WP. 3. Locate the FW port on the front panel. LINK VGA IN FW port AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 69 8. Drag-and-drop the firmware file to the drive. 9. After the file has been copied, disconnect the USB cable from both the computer and the AT-HDVS-200-TX-WP. 10. Power-cycle the AT-HDVS-200-TX-WP by disconnecting then reconnecting the power supply. 11. The firmware update process is complete. AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 70: Default Settings

    1920x1080 Input1 HDCP Compliant Input2 HDCP Compliant Config Username (default) root Password (default) Atlona System IP Mode DHCP Static IP Address (default) 192.168.1.254 Netmask 255.255.255.0 Gateway 192.168.1.1 Telnet Port Telnet Login Mode Telnet Timeout 120 (seconds) Broadcast AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 71: Specifications

    HDMI IN / OUT CAT-5e / CAT-6 CAT-6a / CAT-7 Signal Bandwidth 10.2 Gbps HDCP Temperature Fahrenheit Celsius Operating 32 to 122 0 to 50 Storage -4 to 140 -20 to 60 Humidity (RH) 20% to 90%, non-condensing AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 72 Appendix Power Consumption Dimensions Wall 2 gang Weight Pounds Kilograms Device Certification Unit CE, FCC AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...

  • Page 73: Index

    48, 49 Description Password FreeRun front / rear panel default HDCPSet DHCP 31, 53 setting HDMIAUD HDVS help Faceplate Reset Input removal and assembly factory-default IPAddUser FCC statement Resolution IPCFG Features output 34, 65 IPDelUser Firmware IPDHCP displaying AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 74 Telnet listening port login mode timeout Timer auto power-off display warm-up lamp cool down Treble adjusting 22, 23 Users adding 30, 52 editing primary user name removing 30, 53 signal adjustment Volume adjusting Warranty Web GUI AT-HDVS-200-TX-WP / AT-HDVS-200-TX-WP-BLK...
  • Page 75 • 408.962.0515 • 877.536.3976 © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
