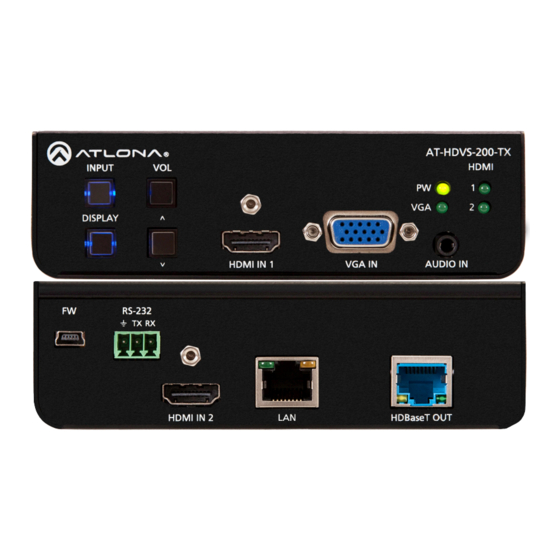

Atlona AT-HDVS-200-TX User Manual

Three-input switcher for hdmi and vga with ethernet-enabled hdbaset output
Hide thumbs Also See for AT-HDVS-200-TX:
Table of Contents

Advertisement

Quick Links

Download this manual
Three-Input
Switcher for HDMI and VGA
with Ethernet-Enabled HDBaseT Output
AT-HDVS-200-TX
AT-HDVS-200-TX-PSK
Atlona Manuals
Switchers

Advertisement

Table of Contents
loading

Related Manuals for Atlona AT-HDVS-200-TX

Summary of Contents for Atlona AT-HDVS-200-TX

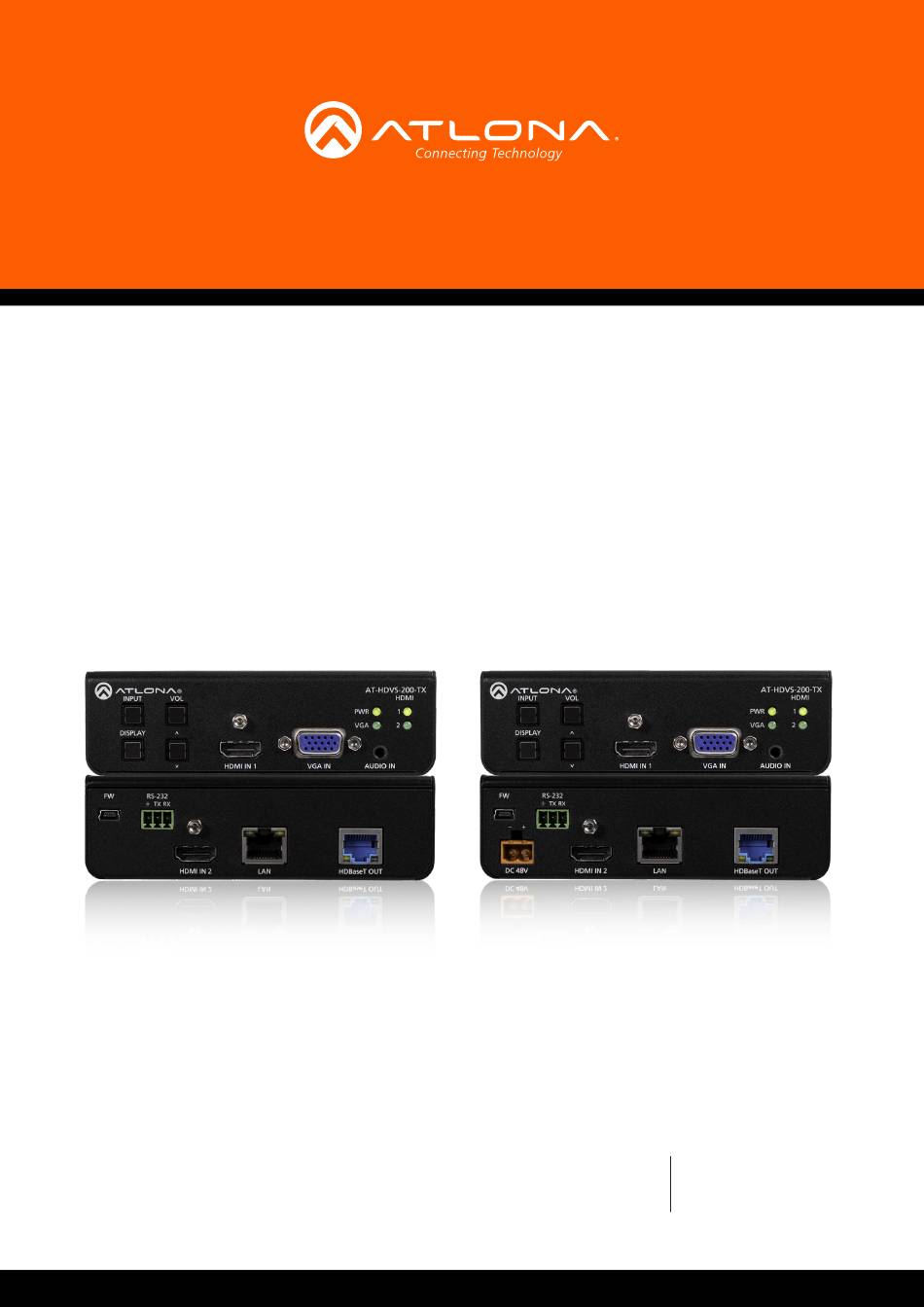

  • Page 1 Three-Input Switcher for HDMI and VGA with Ethernet-Enabled HDBaseT Output AT-HDVS-200-TX Atlona Manuals AT-HDVS-200-TX-PSK Switchers...
  • Page 2 Version Information Version Release Date Notes 01/16 Initial release 05/17 Updated 07/17 New format AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take an extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
  • Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
  • Page 6 FCC regulations. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 7: Table Of Contents

    TCP/IP Settings of Controlled Devices RS-232 / IP Commands RS-232 page EDID page Config page System page HDBT page Kit Mode Video Audio RS-232 Commands Appendix Updating the Firmware Using the Web GUI Using USB Default Settings Specifications Index AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 8: Introduction

    Introduction The Atlona AT-HDVS-200-TX is a 3×1 switcher and HDBaseT transmitter with two HDMI inputs and a VGA input with audio. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100 meters). The two-channel audio input can be assigned to any of the video inputs and embedded for HDBaseT transmission.

  • Page 9: Panel Description

    This LED indicator will glow bright green when the network. switcher is powered. 17 HDBaseT OUT AUDIO IN Use an Ethernet cable to connect an HDBaseT PoE Connect a 3.5mm mini-stereo audio cable, from an receiver to this port. analog audio source, to this port. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 10: Installation

    7. OPTIONAL: Connect an RS-232 control device to the RS-232 port on the switcher. This port is used to control functions of the AT-HDVS-200-TX, such as volume up/down, display on/off, etc. No power supply is required for the AT-HDVS-200-TX. This unit will be powered over the Ethernet cable, from an HDBaseT receiver.

  • Page 11: Connection Diagram

    Installation AT-HDVS-200-TX-PSK Only 9. Connect the included power supply to the DC 48V port. Powering the AT-HDVS-200-TX-PSK will provide power to other HDBaseT receivers or projectors that require power. 10. Connect the power supply to an available AC outlet. Connection Diagram Audio Amplifier...

  • Page 12: Ip Configuration

    IP Configuration The AT-HDVS-200-TX is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. Use an IP scanner, along with the MAC address on the bottom of the unit, to identify both the unit and its IP address on the network.

  • Page 13: Using The Web Gui

    Using the Web GUI System page (page 28), in the web GUI, allows the AT-HDVS-200-TX to use either DHCP or static IP mode. In order to access the web GUI, the IP address of the AT-HDVS-200-TX must be known. 1. Open the desired web browser and enter the IP address of the AT-HDVS-200-TX.

  • Page 14: The Web Gui

    The Web GUI Introduction to the Web GUI The AT-HDVS-200-TX includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-HDVS-200-TX, as it provides intuitive management of all features. The AT-HDVS-200-TX is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit.

  • Page 15: Menu Bar

    Once the desired menu element is highlighted, click the left mouse button to access the settings within the menu. Menu bar In this example, clicking Video, in the menu bar, will display the Video page. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 16: Toggles

    Buttons are used to execute an action or setting. Several pages within the Web GUI include a Save button. Clicking the Save button will apply and save all settings in the current page. Other buttons, such as the Factory Defaults button, under the System page, will reset the AT-HDVS-200-TX to factory-default settings. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 17: Info Page

    Displays the input resolution of the source device. RX Type The model of the connected PoE-compatible receiver unit. If the AT-HDVS-200-TX is connected to a receiver, other than the AT-HDVS-200-RX, then the text “GENERAL” will be displayed here, and in the menu ribbon. However, if connected to the AT-HDVS-200-RX (using the HDBaseT port), this text will change to the name of the device and acts as a hyperlink to the AT-HDVS-200-RX web GUI.

  • Page 18: Video Page

    Click the Fallback Time (Sec) drop-down list and select the time interval before the switcher attempts to search for the next port. Range: 3 to 600. When the system is in kit mode, additional options will be available. Refer to Kit Mode (page 31) for more information. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 19: Audio Page

    Click and drag this slider bar to adjust the bass of the audio output. Range: -12 to 15. Output Treble Click and drag this slider bar to adjust the treble of the audio output. Range: -12 to 15. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 20 Click and drag this slider bar to adjust the bass of the audio output. Range: -12 to 15. Output Treble Click and drag this slider bar to adjust the treble of the audio output. Range: -12 to 15. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 21: Display Page

    CEC command structure defined in HDMI 1.2a. It is recommended that dealers re- quest an evaluation product from Atlona, before designing a system using the CEC protocol. If this is not possible, then other control methods will need to be considered, in order to control displays using Atlona products.

  • Page 22: System Settings

    Setting Description This is the default setting. The AT-HDVS-200-TX will make four attempts to send the command, if the feedback string is not acknowledged. After the fourth attempt, the process will fail. Sends the command and ignores the feedback string.

  • Page 23: Tcp/Ip Settings Of Controlled Devices

    Enter the username for login. If the IP Mode is set to Non-Login, then this information will not be required. Password Enter the password for login. If the IP Mode is set to Non-Login, then this information will not be required. Save Click this button to save all changes in this window group. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 24: Rs-232 / Ip Commands

    No end-of-line characters included Carriage return Line feed CR-LF Carriage return + Line feed Space Space character Start-of-text character End-of-text character Null Null character (binary zero) Save Click this button to save all changes in this window group. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 25: Rs-232 Page

    RS-232 page Zone When the AT-HDVS-200-TX is connected to the AT-HDVS-200-RX, the system is placed in kit mode. In this mode, the drop-down list boxes will be disabled and the HDBaseT baud rate will be locked at 115200. If the AT-HDVS-200-TX is connected to another HDBaseT device, such as the AT-UHD-CLSO-824, each of these drop-down list boxes can be set to the baud rate of the HDBaseT RS-232 settings on the corresponding device.

  • Page 26: Edid Page

    Auto - Automatically detects the presence of HDCP-compliant sink devices. If an HDCP-compliant display is detected, then HDCP content will be sent. Otherwise, non-HDCP content will be sent. NOTE: The HDCP control feature does not provide decryption of HDCP content to non-HDCP sink devices. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 27: Config Page

    Config page Old Username This field cannot be changed. “root” is the administrator user. Old Password Enter the current password for the “root” username in this field. The default password is “Atlona”. New Username This field cannot be changed. Save Click this button to save all changes.

  • Page 28: System Page

    Click this toggle to set the IP mode of the AT-HDVS-200-TX. By default, the AT-HDVS-200-TX is set to DHCP mode. Available settings: STATIC IP, DHCP. Enter the IP address of the AT-HDVS-200-TX in this field. This field will only be available if IP Mode is set to STATIC IP. The default IP address is 192.168.1.254.
  • Page 29 Click the Factory Default button to set the AT-HDVS-200-TX to factory-default settings. Firmware Update Click the Choose File button to select the firmware file, when upgrading the firmware on the AT-HDVS-200-TX. Once the firmware file is selected, click the Update button. Refer to...

  • Page 30: Hdbt Page

    HDBT page HDBaseT Channel The AT-HDVS-200-TX has only a single HDBaseT output. Therefore, this drop-down list is disabled. Start / Stop Click the Start button to being the HDBaseT testing. During testing, the button text will change to “Stop”. Click the Stop button to halt the HDBaseT testing process.

  • Page 31: Kit Mode

    The Web GUI Kit Mode If the AT-HDVS-200-TX is connected to the AT-HDVS-200-TX, the system will be placed in kit mode. This section covers features only available in kit mode. Note that the text “GENERAL” has been replaced with the name of receiver (AT-HDVS-200-TX).
  • Page 32 Adjusts the hue of the output signal. Range: 0 - 128 Sharpness Adjusts the sharpness of the output signal. Range: 0 - 128 Reset all Picture Click this button to reset the above picture settings to their factory-default settings. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 33: Audio

    The analog source, connected to the AUDIO IN port, will be used. HDMI Audio Click this toggle to the OFF position to mute only the HDMI audio. L/R Audio Click this toggle to the OFF position to mute all audio on the output. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 34 Sets the stop bit. Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2. NOTE: In the illustration above, note that the Zone RS-232 settings are “locked” because the system is in kit mode. AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 35: Commands

    Commands The following tables provide an alphabetical list of commands available on the AT-HDVS-200-TX. All commands are case-sensitive and must be entered as documented. If the command fails or is entered incorrectly, then the feedback is “Command FAILED”. IMPORTANT: Each command is terminated with a carriage-return (0x0d) and the feedback is terminated with a carriage-return and line-feed (0x0a).
  • Page 36 Enables or disables login credentials when starting a Telnet session IPPort Sets the Telnet listening port for the AT-HDVS-200-TX IPStatic Sets the static IP address, subnet mask, and gateway for the AT-HDVS-200-TX IPTimeout Specifies the time interval of inactivity before the Telnet session is closed LRAUD...
  • Page 37 Displays the model of the transmitter Update Updates the MCU or Valens firmware from the command line Version Displays the current firmware version of the AT-HDVS-200-TX VGAAuto Performs a VGA auto-adjust VGAPrefT Set the preferred timing for the VGA input...
  • Page 38 Sets the aspect ratio of the output signal. The default setting is Full. Use the sta argument to display the current setting. Syntax Aspect X Parameter Description Range Aspect ratio 0 = Full 1 = 16:9 2 = 16:10 3 = 4:3 4 = Keep Ratio Example Feedback Aspect 1 Aspect 1 AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 39 Use the sta argument to display the current setting. Syntax ASwPrePort X Parameter Description Range Port 1 = HDMI IN 1 2 = HDMI IN 2 3 = VGA IN Prev = Previous Example Feedback ASwPrePort 1 ASwPrePort 1 AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 40 Sends the command to power-on the display when an A/V signal is detected. Use the on argument to enable this feature. Use the sta argument to return the current setting. Syntax AutoDispOn X Parameter Description Range Value on, off, sta Example Feedback AutoDispOn on AutoDispOn on AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 41 1 value, respectively. Syntax BASS X Parameter Description Range Value -12 ... 15, sta Example Feedback BASS -5 BASS -5 BASS + BASS -4 AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 42 Example Feedback Broadcast on Broadcast on Sets the picture brightness. Use the sta argument to display the current brightness setting. Syntax BRT X Parameter Description Range Value 0 ... 100, sta Example Feedback BRT 60 BRT 60 AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 43 Example Feedback CliMode login CliMode login CliPass Sets the password for the controlled device. Execute the CliPass command without arguments to display the current password. The default password is Atlona. Syntax CliPass X Parameter Description Range Password...
  • Page 44 CliPort 30 CliUser Sets the username for the controlled device. Execute the CliUser command without arguments to display the current username. Syntax CliUser X Parameter Description Range Username 20 characters (max) Example Feedback CliUser BigBoss CliUser BigBoss AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 45 Example Feedback CtlType cec CtlType cec CTRST Sets the picture contrast. Use the sta argument to display the current setting. Syntax CTRST X Parameter Description Range Contrast 0 ... 100, sta Example Feedback CTRST 65 CTRST 65 AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 46 Enables or disables the display command protocol to IP. on = enable IP, off = disable IP, sta = displays the current setting. Syntax DispIP X Parameter Description Range Setting on, off, sta Example Feedback DispIP on DispIP on AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 47 Enables or disables the display command protocol to RS-2232. on = enable RS-232, off = disable RS-232, sta = displays the current setting. Syntax DispRS X Parameter Description Range Setting on, off, sta Example Feedback DispRS on DispRS on AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 48 Disabling this feature will not decrypt HDCP content. on = enables HDCP detection; off = disables HDCP detection; sta = displays the current setting. Syntax HDCPSet X Y Parameter Description Range Value 1 ... 2 Value on, off, sta Example Feedback HDCPSet 1 on HDCPSet 1 on AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 49 Displays the list of available commands. To obtain help on a specific command, enter the help command followed by the name of the command. Syntax help X Parameter Description Range Command name (optional) Command Example Feedback help Command List: ----------------- help Input Version AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 50 Config page (page 27) of the web GUI for more information. Syntax IPAddUser X Y Parameter Description Range User name 20 characters (max) Password 20 characters (max) Example Feedback IPAddUser BigBoss b055man IPAddUser BigBoss b055man TCP/IP user was added AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 51 IPDHCP Enables or disables DHCP mode on the AT-HDVS-200-TX. on = enables DHCP mode; off = disables DHCP mode; sta = displays the current setting. If this feature is disabled, then a static IP address must be specified for the AT- HDVS-200-TX.
  • Page 52 Enables or disables the use of login credentials when starting a Telnet session on the AT-HDVS-200-TX. If this feature is set to on, then the AT-HDVS-200-TX will prompt for both the username and password. Use the same credentials as the web GUI. on = login credentials required; off = no login required; sta = displays the current setting.
  • Page 53 Syntax LRAUD X Parameter Description Range Value on, off, sta Example Feedback LRAUD off LRAUD off Mreset Resets the AT-HDVS-200-TX to factory-default settings. Syntax MReset This command does not require any parameters Example Feedback Mreset Mreset AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 54 Sets the time interval before the “display on” command is sent. This value should be the same as the projector’s delay setting. Use the sta argument to display the current setting. Syntax ProjSWMode X Parameter Description Range Time interval 0 ... 300, sta Example Feedback ProjSWMode 120 ProjSWMode 120 AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 55 RS232para Sets the baud rate, data bits, parity bit, and stop bits for the RS-232 port on the AT-HDVS-200-TX. Each argument must be separated by a comma; no spaces are permitted. Brackets must be used when typing this command. Use the sta argument, without brackets and including a space, to display the current settings.
  • Page 56 Use the sta argument, without brackets and including a space, to display the current settings. Syntax RxRSparaZV[W,X,Y,Z] Parameter Description Range Port Baud rate 2400, 9600, 19200, 38400, 56000, 57600, 115200 Data bits 7, 8 Parity bit None, Odd, Even Stop bits 1, 2 Example Feedback RxRSparaZ1[115200,8,0,1] RxRSparaZ1[115200,8,0,1] RxRSparaZ1 sta RxRSparaZ1[115200,8,0,1] AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 57 RS-232 / IP Commands (page 24) section for more information. Syntax SetEnd X[Y] Parameter Description Range Command on, off, vol+, vol-, mute, fbkon, fbkoff, fbkmute EOL character None, CR, LF, CR-LF, Space, STX, ETX, null Example Feedback SetEnd off[CR-LF] SetEnd off[CR-LF] AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 58 Commands SetFbVerify Sets the feedback verification state. on = the AT-HDVS-200-TX will make four attempts to send the command. If the feedback string is not acknowledged after the fourth attempt, the process will fail. off = sends the command and ignores the feedback string.
  • Page 59 Commands System Displays system information about the AT-HDVS-200-TX. The sta argument must be specified. Syntax System X Parameter Description Range Status Example Feedback System sta Model: AT-HDVS-200-TX MAC Addr: b8-98-b0-00-10-e6 Address Type: DHCP IP Addr: 10.0.1.161 Netmask: 255.255.255.0 Gateway: 10.0.1.1...
  • Page 60 Example Feedback TrigIP vol+ TrigIP vol+ TrigRS Trigger the specified command to the display using RS-232. Syntax TrigRS X Parameter Description Range Value on, off, vol+, vol-, mute Example Feedback TrigRS vol- TrigRS vol- AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 61 Description Range Value MCU, VSTX Feedback Example none Update MCU Version Displays the current firmware version of the AT-HDVS-200-TX. Do not add a space between the X parameter and the command. Syntax VersionX Parameter Description Range Value MCU, VSTX Example...
  • Page 62 0 ... 8 Input Timing List 4 = 1280x720 0 = Default 5 = 1920x1200 1 = 1280x800 6 = 1366x768 2 = 1920x1080 7 = 800x600 3 = 1024x768 8 = 1600x900 Example Feedback PrefTimg 3 PrefTimg 3 AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 63 Defines how the VOL button will be used to control a device. 0 = controls the volume using the HDVS, 1 = control using RS-232, 2 = control using IP. Use the sta argument to display the current setting. Syntax VolKeyOPT Parameter Description Range Value 0 ... 2, sta Example Feedback VolKeyOPT VolKeyOPT AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 64 VOUT 5 VOUTMute Mutes or unmutes the audio. on = enables muting; off = disables muting; sta = displays the current setting. Syntax VOUTMute X Parameter Description Range Value on, off, sta Example Feedback VOUTMute on VOUTMute on AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 65: Appendix

    Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, if a network connection is not available, the AT-HDVS-200-TX firmware can be updated using a USB-A to USB mini-B cable...

  • Page 66: Using Usb

    USB-A to USB mini-B cable AT-HDVS-200-TX HDMI INPUT 1. Disconnect power from the AT-HDVS-200-TX. 2. Connect the USB-A to USB mini-B cable from the computer to the FW port on the AT-HDVS-200-TX. DISPLAY FW port HDMI IN 1 VGA IN...
  • Page 67 7. Delete all files from the USB UPDATE drive, if any are present. 8. Drag-and-drop the firmware file to the drive. 9. After the file has been copied, disconnect the USB cable from both the computer and the AT-HDVS-200-TX. 10. Power-cycle the AT-HDVS-200-TX by disconnecting then reconnecting the power supply.

  • Page 68: Default Settings

    Appendix Default Settings The following tables list the factory-default settings for the AT-HDVS-200-TX. Feature Settings Video Input Selection HDMI 1 Aspect Full Auto Switch mode Fallback Port Previous Fallback Time (Sec) Audio HDMI 1 Auto HDMI 2 Auto Audio Freerun Status...

  • Page 69: Specifications

    HDMI IN / OUT CAT-5e / CAT-6 CAT-6a / CAT-7 Signal Bandwidth 10.2 Gbps HDCP Temperature Fahrenheit Celsius Operating 32 to 122 0 to 50 Storage -4 to 140 -20 to 60 Humidity (RH) 20% to 90%, non-condensing AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 70 Appendix Power Consumption 12 W; 30 W (when paired) Dimensions Inches Millimeters H x W x D 1.5 x 5 x 4.02 38 x 127 x 102 Weight Pounds Kilograms Device 0.64 0.29 Certification Unit CE, FCC AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...

  • Page 71: Index

    DispKeyLock DispRS DC 48V DisWarmUp 46, 47 port FreeRun Default setttings Panel descriptions HDCPSet Description Password HDMIAUD front / rear panel default HDVS DHCP 28, 51 setting help Power port Input IPAddUser FCC statement IPCFG Features AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 72 Telnet listening port login mode timeout Timer auto power-off display warm-up lamp cool down Treble adjusting 19, 20 Users adding 27, 50 editing primary user name removing 27, 51 signal adjustment Volume adjusting Warranty Web GUI AT-HDVS-200-TX / AT-HDVS-200-TX-PSK...
  • Page 73 • 408.962.0515 • 877.536.3976 © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
