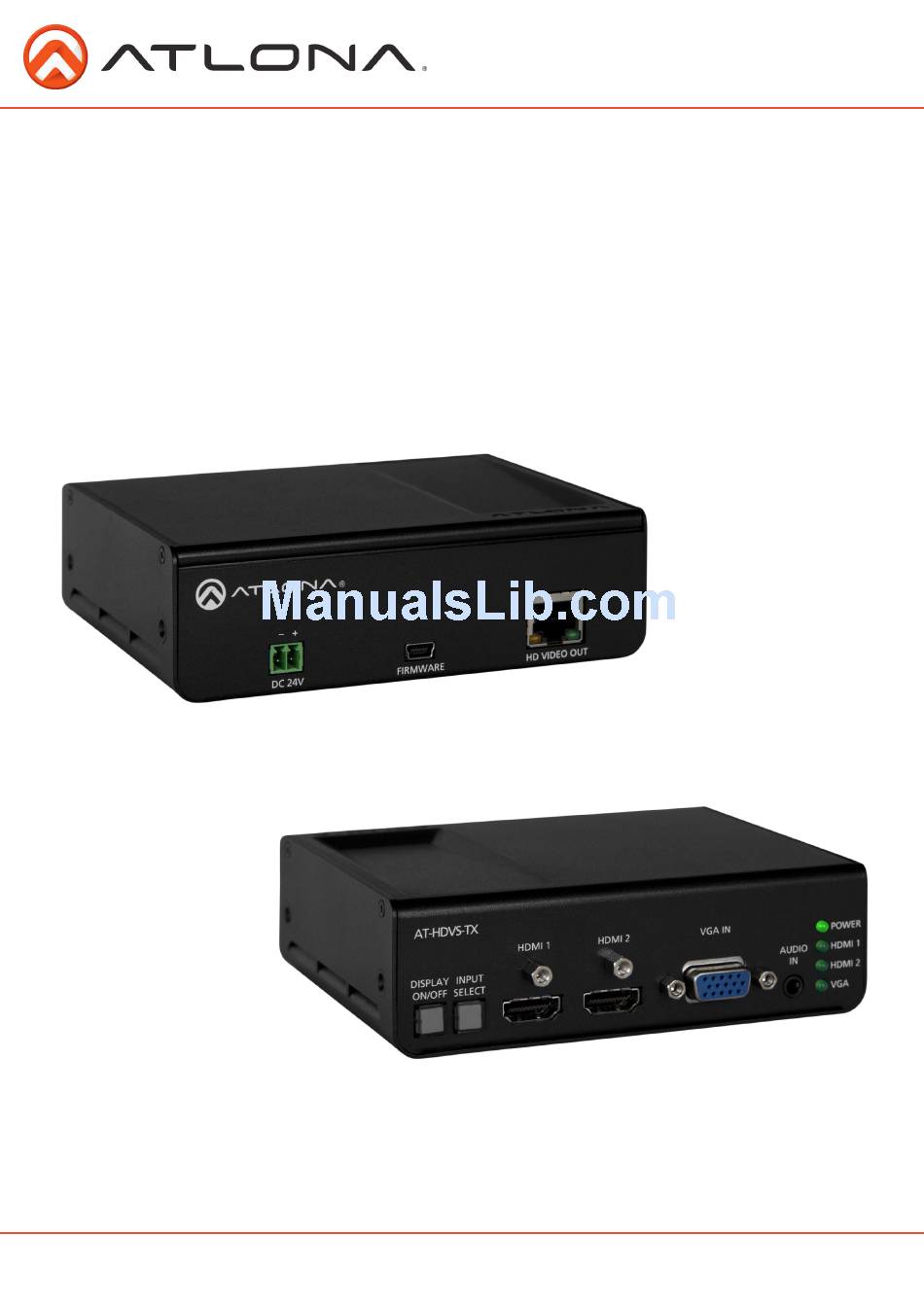

Page 1: User Manual
Atlona VGA/Audio & 2 HDMI to HDBaseT Extender Switcher w/Display Control AT-HDVS-TX User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
7. Captive Screw Connection ................... 5 8. RS-232 ................... 6 9. Connection and Installation ................... 7 10. Specifications ................... 8 11. Safety Information ................... 9 12. Warranty ................... 10-11 13. Atlona Product Registration ................... 11 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction Atlona HDVS transmitter was designed to smooth the transition from analog to digital displays in schools and businesses, allowing advanced HDMI display devices to be used with the many VGA computers still in use. HDBaseT and power over category cable (PoCc™) allow signal and power over a single category cable, with RS-232 control capability. -

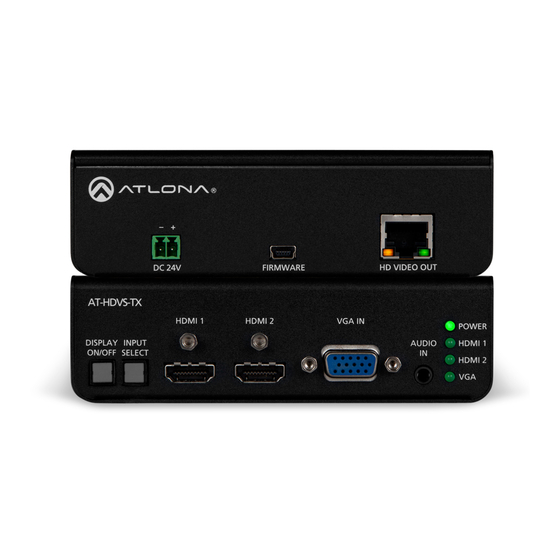

Page 4: Panel Description
2. FIRMWARE: To update firmware connect mini USB to USB A cable from this port to a Windows computer. Note: Update instructions will be included with firmware download found on atlona.com 3. HD VIDEO OUT: Connect category cable from there to a compatible receiver. (ex. AT-HDVS-RX) Toll free: 1-877-536-3976 atlona.com... -
Page 5: Captive Screw Connection
The power pin out (see picture 1) and wire configuration (see picture 2 and 3) are shown below. Black: - White: + Note: When using the HDVS-RX do not connect a power supply to the HDVS-TX Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Rs-232
Control Software Control software and instructions for use can be found on the AT-HDVS-TX webpage on atlona. com (can only be used with compatible receivers - AT-HDVS-RX) URL: http://www.atlona.com/HDVS-TX.html (instructions/software found under the “Downloads” tab) Set Up RS-232 control is easiest when used with the HDVS-RX receiver. -
Page 7: Connection And Installation
Connection and Installation Video HDBaseT Audio AT-HDVS-TX HDMI 1 HDMI 2 VGA IN POWER DISPLAY INPUT AUDIO ON/OFF SELECT HDMI 1 HDMI 2 DC 24V FIRMWARE HD VIDEO OUT CAT5e/6/7 IN FIRMWARE DC 24V POWER LINK HDMI OUT AUDIO OUT... -
Page 8: Specifications
1.46 x 5.08 x 3.94 (inch) 38 x 127 x102 (mm) Weight 0.44 lbs 0.2 kg Temperature Operating Storage 32°F to 104°F -4°F to 140°F 0°C to 40°C 20°C to 60°C Certifications CE, FCC, RoHS, cULus for power supplies Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 10: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 11: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
