Summary of Contents for Atlona AT-HDVS-150-KIT
- Page 1 Three-Input Switcher for HDMI and VGA with HDBaseT Output ™ AT-HDVS-150-TX Atlona Manuals Switchers AT-HDVS-150-TX-PSK...
- Page 2 Version Information Version Release Date Notes 09/16 Initial release 01/17 Combined TX and TX-PSK manual AT-HDVS-150-TX / AT-HDVS-150-TX-PSK...
- Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
- Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
- Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
- Page 6 The information bubble is intended to alert the user to helpful or optional opera- product. tional instructions in the literature accompanying the product. 11. Only use attachments/accessories specified by Atlona. 1. Read these instructions. 12. To reduce the risk of electric shock and/or damage 2. Keep these instructions.
-
Page 7: Table Of Contents
Table of Contents Introduction Features Package Contents Panel Description Installation Basic Operation Powering the Display Selecting the Input Auto Switching Passing Analog Audio Appendix Updating the Firmware Specifications Index AT-HDVS-150-TX / AT-HDVS-150-TX-PSK... -
Page 8: Introduction
Introduction The Atlona AT-HDVS-150-TX is a 3×1 switcher with display control for HDMI and VGA transmission over HDBaseT™. It features two HDMI inputs plus a VGA input with 3.5mm audio connector. The AT-HDVS-150-TX combines the benefits of a switcher with built-in auto-switching and the advantages of long-distance HDBaseT signal extension over a single cable. -

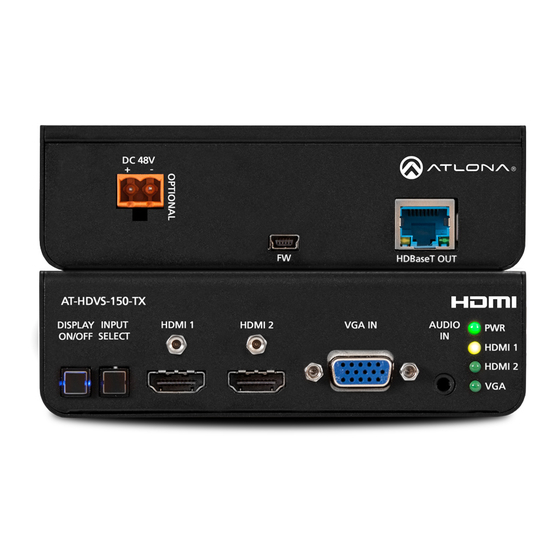

Page 9: Panel Description
Panel Description Front Rear DC 48V 8 10 DC 48V HDMI 1 / HDMI 2 Connect the power supply to this port to power an Connect up to two HD sources using these HDMI HDBaseT receiver, projector, or other PoE device. ports. -
Page 10: Installation
Installation Connection Instructions AT-HDVS-150-TX / AT-HDVS-150-TX-PSK 1. Use HDMI cables to connect up to two HD sources to the HDMI 1 and HDMI 2 ports on the switcher. 2. Connect a VGA cable from a VGA source to the VGA IN port on the switcher. 3. -
Page 11: Basic Operation
Basic Operation Connection Diagram ri c R SY RS -2 ID GE M ON 3. 5m ST ER M IC ri c R SY IN PU AT-PA100-G2 Speakers Display se T AT-HDVS-150-RX AT-HDVS-150-TX Desktop PC Laptop Laptop AT-HDVS-150-TX / AT-HDVS-150-TX-PSK... -
Page 12: Powering The Display
When the unit is connected to a compatible receiver and display, pressing the DISPLAY ON/OFF button will send a toggle or trigger command to set the display power state. This is a programmable button and requires a compatible Atlona receiver. 1. Press the DISPLAY ON/OFF button. -
Page 13: Auto Switching
Basic Operation Auto Switching Both products have auto-switching capability. The default setting is OFF and can be set using a compatible receiver. The unit will automatically switch to the most recently-connected or powered source when a source is disconnected. For example, if the connection sequence is HDMI 2 > HDMI 1 > VGA, then disconnecting the source from HDMI 1 will result in the product automatically switching to the VGA port. -
Page 14: Appendix
• Computer with USB port 1. Download the latest firmware from the Atlona web site. 2. Connect the USB cable to the computer. Make sure that the AT-HDVS-150-TX is powered. 3. Disconnect the Ethernet cable from the HDBaseT OUT port on the AT-HDVS-150-TX. It is unnecessary to disconnect the AT-HDV-150-TX from the system. - Page 15 Appendix If the folder is not displayed, open Windows Explorer and locate the drive named USB UPDATER. 7. Delete all files from the USB drive, if any are present. 8. Drag-and-drop the AT-HDVS-150-TX_[version].bin firmware file to the drive. 9. After the file has been copied, disconnect the USB cable from both the computer and the AT-HDVS-150-TX. 10.
-
Page 16: Specifications
Appendix Specifications Video HD/SD 4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz* (UHD), 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i VESA 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x864, 1024x768, 800x600, 640x480 Color Space YUV, RGB Chroma Subsampling 4:4:4, 4:2:2, 4:2:0* Color Depth 8-bit, 10-bit, 12-bit... - Page 17 Appendix Power AT-HDVS-150-TX AT-HDVS-150-TX-PSK Consumption 18.7 W (when paired) 18.7 W (when paired) Idle Consumption 22 W Supply Input: 100 - 240 V AC, 50/60 Hz Output: 48 V DC, 3.125 A Dimensions Inches Millimeters H x W x D 1.50 x 5.00 x 4.02 38 x 127 x 102 Weight...
-
Page 18: Index
Index Operating notes Audio AUDIO IN port Power passing analog audio port Auto switching indicator Connection diagram Resolutions instructions supported Contents package table of Customer support Safety information Specifications Switching auto DC 48V port Display controlling the power Warranty DISPLAY ON/OFF button FCC statement Features Firmware... - Page 19 877.536.3976 © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.
