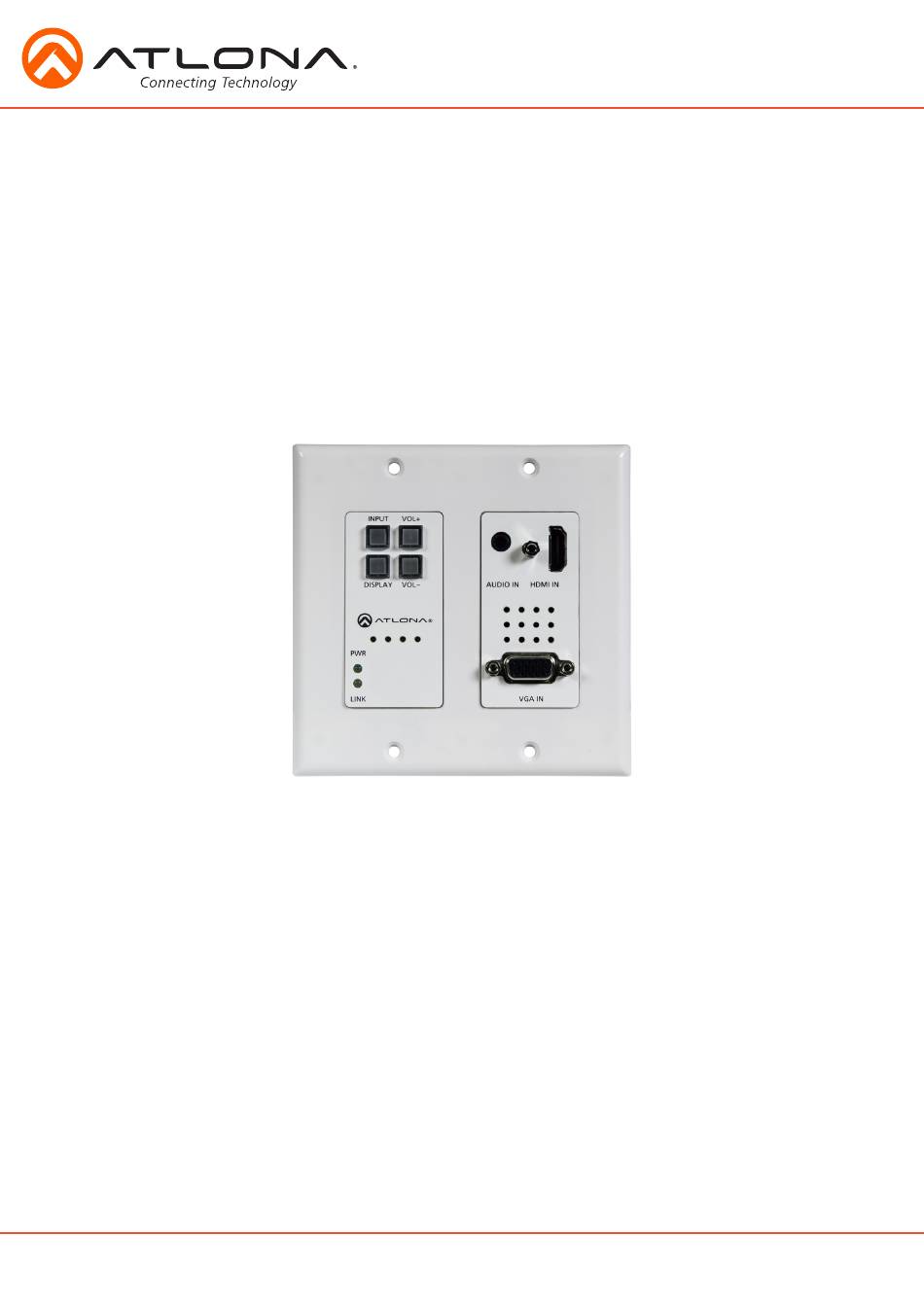

Two-Input Wall Plate Switcher
for HDMI and VGA with
Ethernet-Enabled HDBaseT
Output
AT-HDVS-200-TX-WP Installation Guide
Please check http://www.atlona.com/product/AT-HDVS-200-
TX-WP for the most recent firmware update or manual.

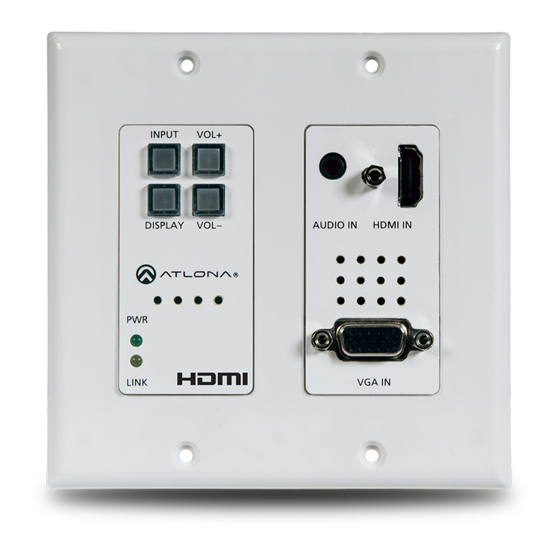

The AT-HDVS-200-TX-WP is a 2×1 wall plate switcher for HDMI and VGA inputs with HDBaseT
output. It features a US, two-gang, Decora form factor with one HDMI and one VGA input with an
always-on 3.5mm audio connector. HDMI signals up to 4K/UHD @ 60Hz
,
(YUV 4:2:0 color sub-sampling)
VGA input signals up to 1920×1200, embedded audio, and control signals can be extended up to
328 feet
. The switcher receives power from the AT-HDVS-200-RX scaler via Power over
(100 meters)
Ethernet and together they create a standalone AV switching and control system with scaling for
classrooms and huddle rooms. Display control and volume commands are transmitted via CEC, IP,
or RS-232 to any display, control system, switcher or other controllable device.

Package Contents

• 1 x AT-HDVS-200-TX-WP (w/face plate - LAN port exposed)
• 1 x Captive screw connector
(3 pin: RS-232)
• 1 x Face plate (w/LAN port covered)
• 1 x Installation Guide
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HDVS-200-TX-WP and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlona AT-HDVS-200-TX-WP

  • Page 1 TX-WP for the most recent firmware update or manual. The AT-HDVS-200-TX-WP is a 2×1 wall plate switcher for HDMI and VGA inputs with HDBaseT output. It features a US, two-gang, Decora form factor with one HDMI and one VGA input with an always-on 3.5mm audio connector.
  • Page 2 Note: To ensure compatibility, please be certain both transmitter and receiver have blue or blue bordered HDBaseT ports. This ensures both products are PoE (48V) compliant. The HDVS-200-TX is not compatible with PoCC (black RJ45, 24V) devices Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 3 Note: IP addresses may also be found using common free IP scanner software such as “Advanced IP Scanner” *Atlona does not assume responsibility for damage caused by other programs installed onto a computer, verify programs before installing* Important: If any stability issues are experienced, disable any anti-virus or firewall that may interfere with network communication to the switcher.
  • Page 4 (this is the same log in for admin and general users) (and future the username is “root” and password is “Atlona”. admin changes) Note: Only the admin password can be changed (see User Manual). The username will always remain “root”.
  • Page 5 Control INPUT VOL + Video DISPLAY VOL - AUDIO IN HDMI IN Document Camera RX TX LINK VGA IN RS-232 AT-HDVS-200-TX-WP Audio AT-PA100-G2 Drop down projector screen (contact closure controlled) AT-HDVS-200-RX AUDIO RS-232 MENU AUTO LINK RELAY AT-HDVS-200-RX DC 48V...
  • Page 6 Connection Diagram (with PoE UHD-CLSO series) Video HDBaseT Audio Laptop Ethernet AT-HDVS-200-TX-WP INPUT VOL + Video DISPLAY VOL - AUDIO IN HDMI IN Document Camera RX TX LINK VGA IN RS-232 MENU AT-UHD-CLSO-824 ENTER MASTER LINE LINE RX TX RX TX...
  • Page 7 The baud rate can be set through the webGUI or by using the RxRSparaZ1 command via TCP/IP or RS-232. When using the RxRSparaZ1 command, use the following syntax: RxRSparaZ1[baudrate,data-bits,parity,stop-bits]. Example: RxRSparaZ1[115200,8,0,1] Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
