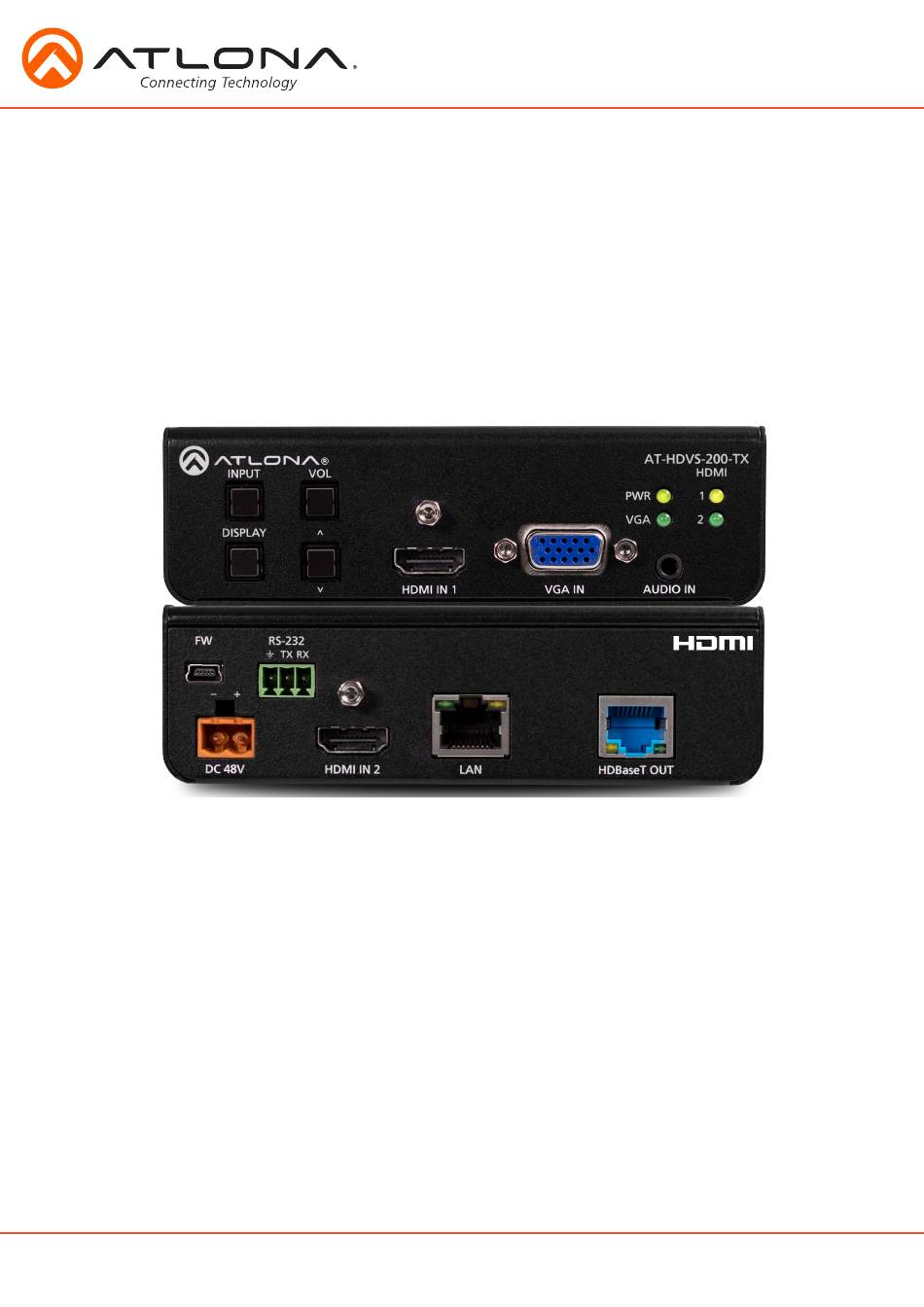

Three-Input Switcher for HDMI and
VGA Sources with Automatic Display
Control and Ethernet-Enabled
HDBaseT Output
AT-HDVS-200-TX Installation Guide
Please check http://www.atlona.com/product/AT-HDVS-200-
TX for the most recent firmware update or manual.

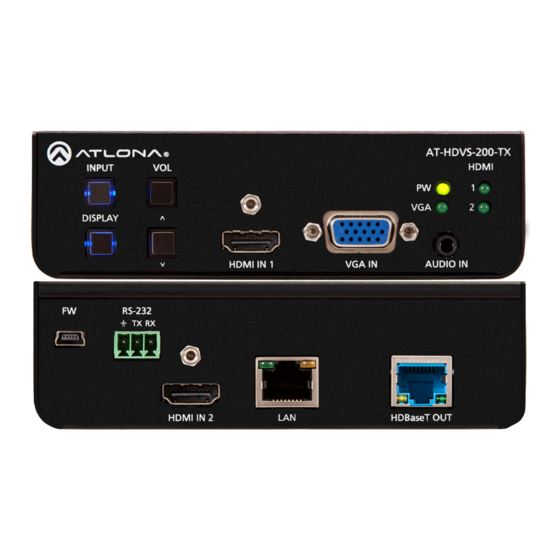

The AT-HDVS-200-TX is a 3×1 switcher for HDMI and VGA Inputs with HDBaseT Output. It features
two HDMI inputs, a VGA input, and an always on 3.5mm audio connector. The AT-HDVS-200-
TX can be the central component of a small, automated A/V system. Automatic display control
turns on the display automatically whenever a source is connected. When the source is removed,
the display is turned off. Volume is controlled by using the front panel buttons. Automatic input
selection on the AT-HDVS-200-TX works by sensing the presence of any video signal. With
automatic input selection, manual control systems can be eliminated.
Package Contents
• 1 x AT-HDVS-200-TX
• 1 x Captive screw connector
(3 pin: RS-232)
• 1 x Pair of mounting brackets
• 1 x Installation Guide
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515

Advertisement

loading
Need help?

Need help?

Do you have a question about the AT-HDVS-200-TX and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlona AT-HDVS-200-TX

  • Page 1 TX for the most recent firmware update or manual. The AT-HDVS-200-TX is a 3×1 switcher for HDMI and VGA Inputs with HDBaseT Output. It features two HDMI inputs, a VGA input, and an always on 3.5mm audio connector. The AT-HDVS-200- TX can be the central component of a small, automated A/V system.
  • Page 2: Panel Description

    HDBaseT OUT 1. FW port: Firmware update port, connect a mini USB to USB A cable to a computer Firmware is downloadable through http://www.atlona.com/products/AT-HDVS-200-TX/ 2. RS-232 port: Connect control system here 3. HDMI 2 port: Connect second HDMI source here 4.
  • Page 3 Use the screws at the upper contact plate and hold contact bar to release the top of the connector to compress the wires in place. wires. the wire against the contact plate. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 4 1. Use the IPCFG command to display the IP address. Launch a web browser and enter the IP address of the switcher. A login screen will appear (this is the same log in for admin and general users). The login for the webGUI will be username “root” and password “Atlona”. Toll free: 1-877-536-3976 atlona.com...
  • Page 5: Connection Diagram

    Connection Diagram (with HDVS-200-RX) Video HDBaseT Audio Video Ethernet Audio Dry CC Laptop Video Control Document Camera AT-HDVS-200-TX INPUT HDMI DISPLAY HDMI IN 1 AUDIO IN VGA IN RS-232 AT-HDVS-200-TX HDMI IN 2 HDBaseT OUT Audio Video Media Player AT-PA100-G2...
  • Page 6 Connection Diagram (with PoE UHD-CLSO series) Video HDBaseT Audio Video Ethernet Audio Video Laptop Document Camera AT-HDVS-200-TX INPUT HDMI DISPLAY HDMI IN 1 VGA IN AUDIO IN RS-232 AT-HDVS-200-TX HDMI IN 2 HDBaseT OUT Video MENU Media Player AT-UHD-CLSO-824 ENTER...
  • Page 7: Troubleshooting

    5. How do I switch between DHCP and Static IP modes? For the AT-HDVS-200-TX, DHCP can be turned on/off by pressing the INPUT button for 15 seconds. For the AT-HDVS-200-RX, DHCP can be turned on/off by pressing the AUTO button for 15 seconds.
