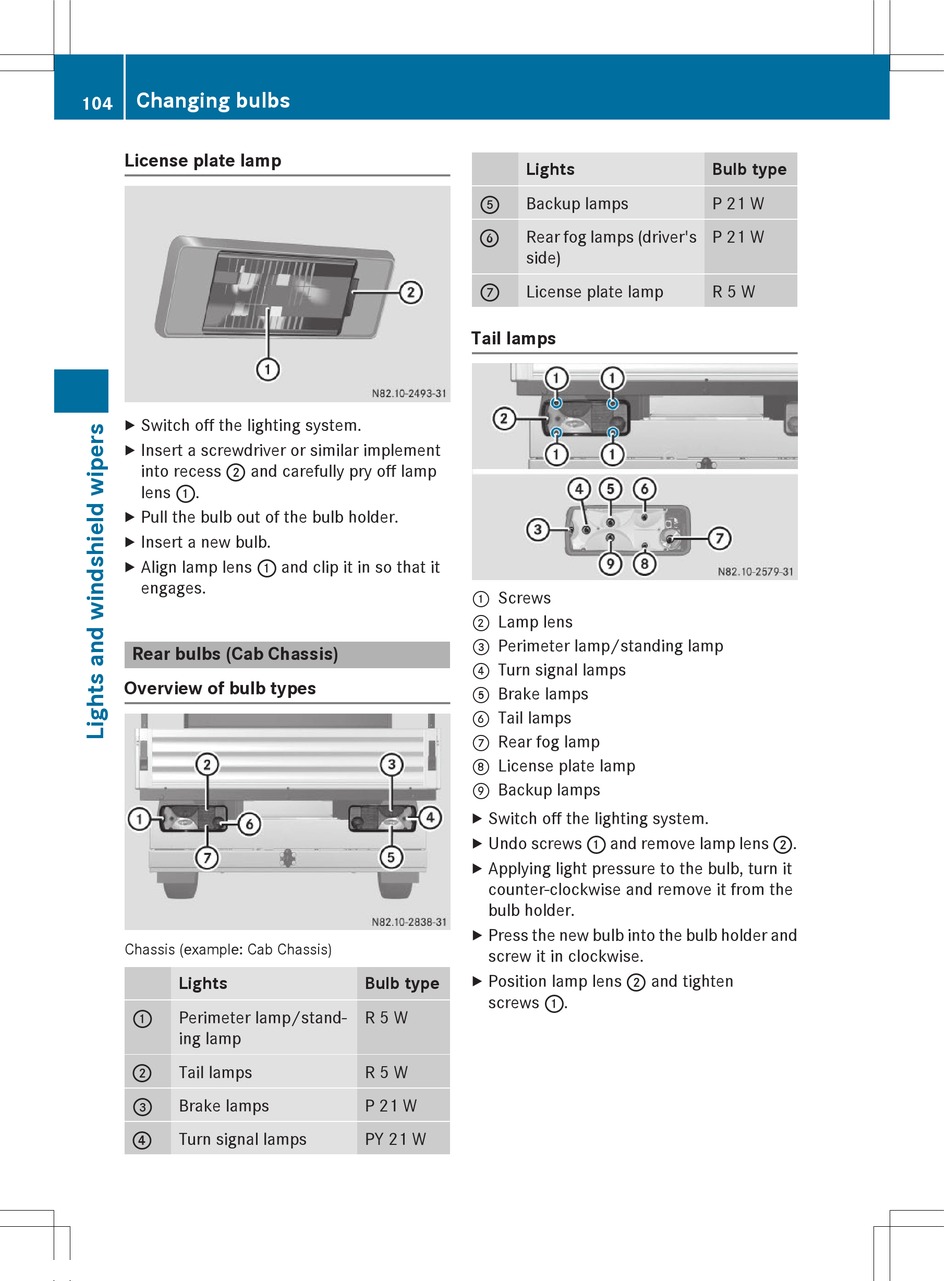

Changing bulbs
104

License plate lamp

Switch off the lighting system.
X
Insert a screwdriver or similar implement
X
into recess ; and carefully pry off lamp
lens :.
Pull the bulb out of the bulb holder.
X
Insert a new bulb.
X
Align lamp lens : and clip it in so that it
X
engages.

Rear bulbs (Cab Chassis)

Overview of bulb types
Chassis (example: Cab Chassis)
Lights
Perimeter lamp/stand-
:
ing lamp

Tail lamps

;
Brake lamps
=
Turn signal lamps
?
Lights
Backup lamps
A
Rear fog lamps (driver's
B
side)
License plate lamp
C
Tail lamps
Screws
:
Lamp lens
;
Perimeter lamp/standing lamp
=
Turn signal lamps
?
Brake lamps
A
Tail lamps
B
Rear fog lamp
C
License plate lamp
D
Backup lamps
E
Switch off the lighting system.
X
Undo screws : and remove lamp lens ;.
X
Applying light pressure to the bulb, turn it
X
counter-clockwise and remove it from the
bulb holder.
Press the new bulb into the bulb holder and
X
screw it in clockwise.
Position lamp lens ; and tighten
Bulb type
X
screws :.
R 5 W
R 5 W
P 21 W
PY 21 W
Bulb type
P 21 W
P 21 W
R 5 W
