Honeywell TH8320R1003 Vision Pro 8000 Product Data page 9

ALTERNATE MOUNTING LOCATION FOR DISCHARGE
SENSOR. WHEN SETTING THE LIMITS, BE SURE TO
CONSIDER THE AFFECT THAT THE HUMIDIFIER HAS
ON DELTA T.
VENTILATOR
OR
DEHUMIDIFIER
MOUNT RETURN
SENSOR HERE
DOWNSTREAM OF
VENTILATOR OR
DEHUMIDIFIER

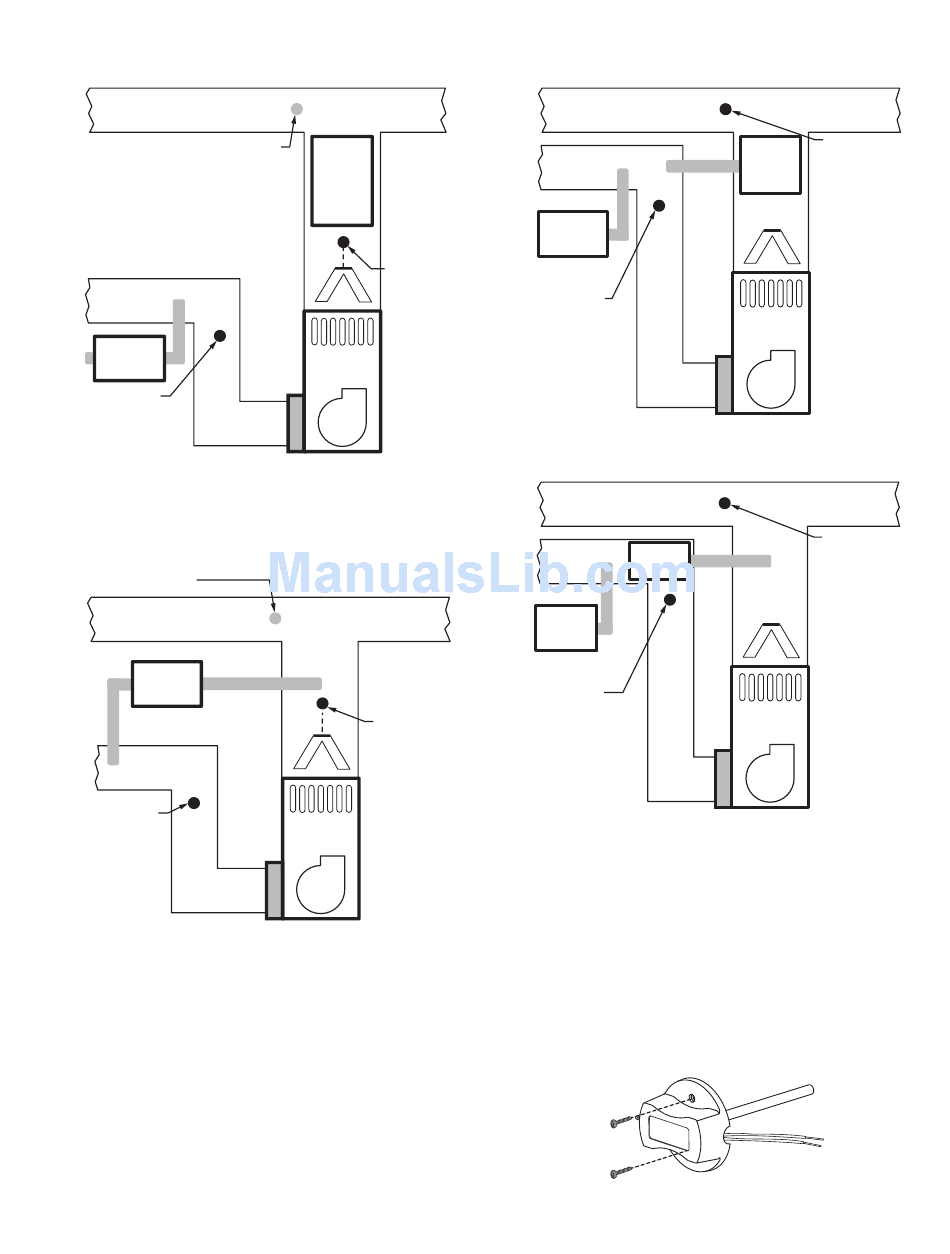

Fig. 8.
ALTERNATE MOUNTING LOCATION FOR DISCHARGE
SENSOR. WHEN SETTING THE LIMITS, BE SURE
TO CONSIDER THE AFFECT THAT THE DEHUMIDIFIER
HAS ON DELTA T.
DEHUMIDIFIER
MOUNT RETURN
SENSOR HERE
DOWNSTREAM OF
DEHUMIDIFIER
Fig. 9.
STEAM OR
FAN
POWERED
HUMIDIFIER
MOUNT
DISCHARGE
SENSOR HERE
ABOVE CENTER
OF A COIL
UPSTREAM OF
HEAT
STEAM OR FAN
EXCHANGER
POWERED
HUMIDIFIER
BLOWER
M33075A
MOUNT
DISCHARGE
SENSOR HERE
ABOVE CENTER
OF A COIL
UPSTREAM OF
DEHUMIDIFIER
HEAT
EXCHANGER
BLOWER
M33076A
VENTILATOR
OR
DEHUMIDIFIER
MOUNT RETURN
SENSOR HERE
MOUNT DOWNSTREAM
OF BYPASS HUMIDIFIER,
DEHUMIDIFIER OR
VENTILATOR
BYPASS
HUMIDIFIER
VENTILATOR
OR
DEHUMIDIFIER
MOUNT RETURN
SENSOR HERE
MOUNT DOWNSTREAM
OF BYPASS HUMIDIFIER,
DEHUMIDIFIER OR
VENTILATOR
Installing Discharge and Return Air
Temperature Sensors
Use the following steps to mount the Discharge/Return Air
Sensors:
1. Attach plastic cover to the sensor probe.
2. Drill 1/4-inch hole for the sensor probe and mount it to
the ductwork with enclosed screws (see Fig. 12).
3. Connect wires to S1–S4 terminals at the EIM.
4. Setup the S1–S4 terminals in the Installer Setup at the
thermostat.
Fig. 12. Mounting Discharge/Return Air Sensor.
9
®
VISIONPRO 8000 WITH REDLINK™
MOUNT
DISCHARGE
BYPASS
SENSOR HERE
HUMIDIFIER
MOUNT
DOWNSTREAM
OF BYPASS
HUMIDIFIER
HEAT
EXCHANGER
BLOWER
Fig. 10.
MOUNT
DISCHARGE
SENSOR HERE
HEAT
EXCHANGER
BLOWER
Fig. 11.
M32995
M33078A
M33079A
68-0312—01
