Honeywell TH8320R1003 Vision Pro 8000 Product Data page 125

TO THERMOSTAT
1 HZ311, HZ322, OR HZ432 ZONE PANELS COULD BE USED TO CONTROL A FORCED AIR FURNACE
ZONED WITH DAMPERS.
2 THE BOILER IS CONTROLLING THE CIRCULATOR PUMP IN THIS DIAGRAM.

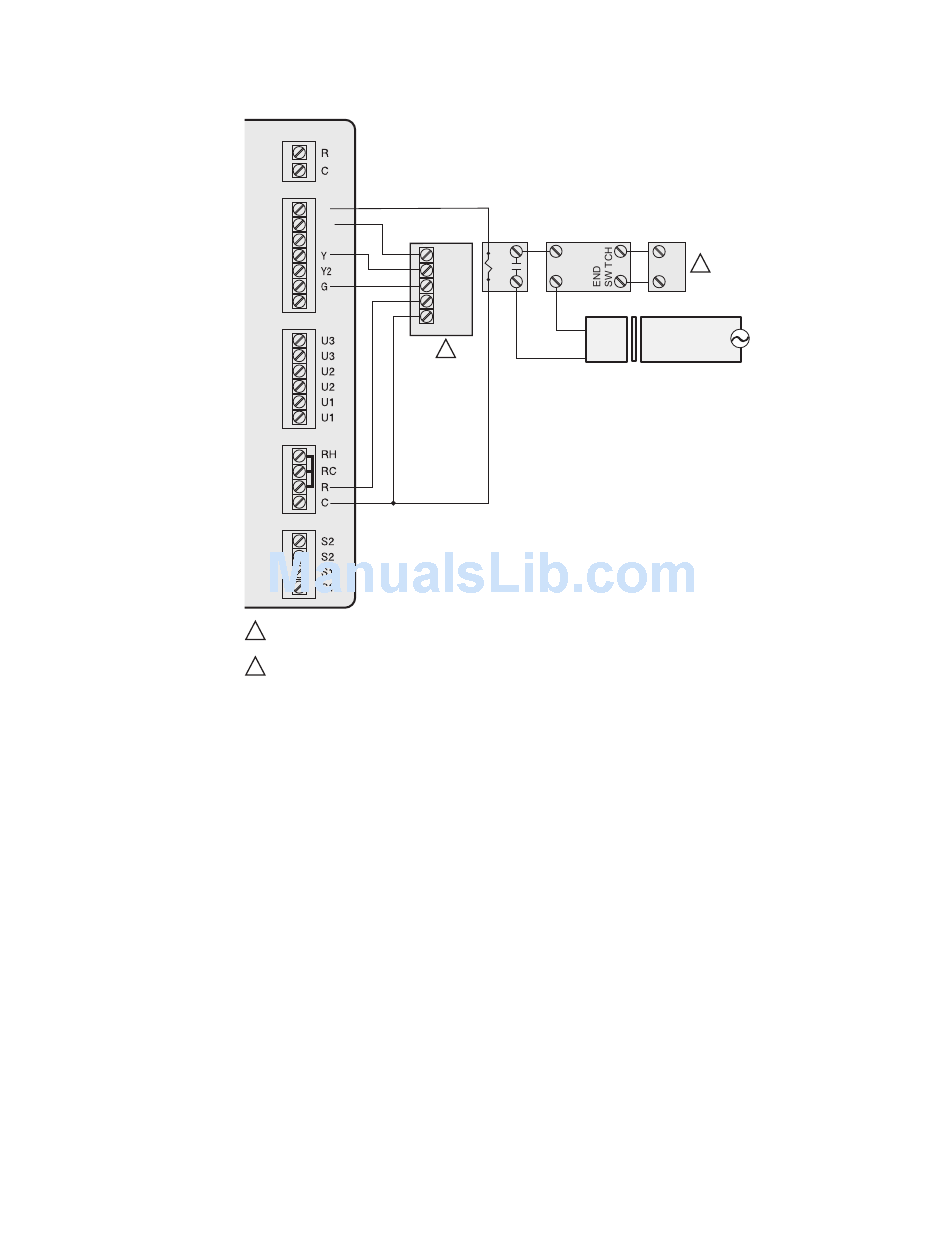

Fig. 323. Hot water radiant heat with backup forced air heat. Zoned with forced air zone panel and zone valves.
THERMOSTAT/EIM
CONV
W
W2
ZONE 1
W3
W
Y
G
L
R
C
1
RELAY ZONE VALVE BOILER
3 TR
1 TH
TRANSFORMER
C
24
VAC
R
125
®
VISIONPRO 8000 WITH REDLINK™
T
2
T
120
VAC
M34526
68-0312—01
