Humidity Display

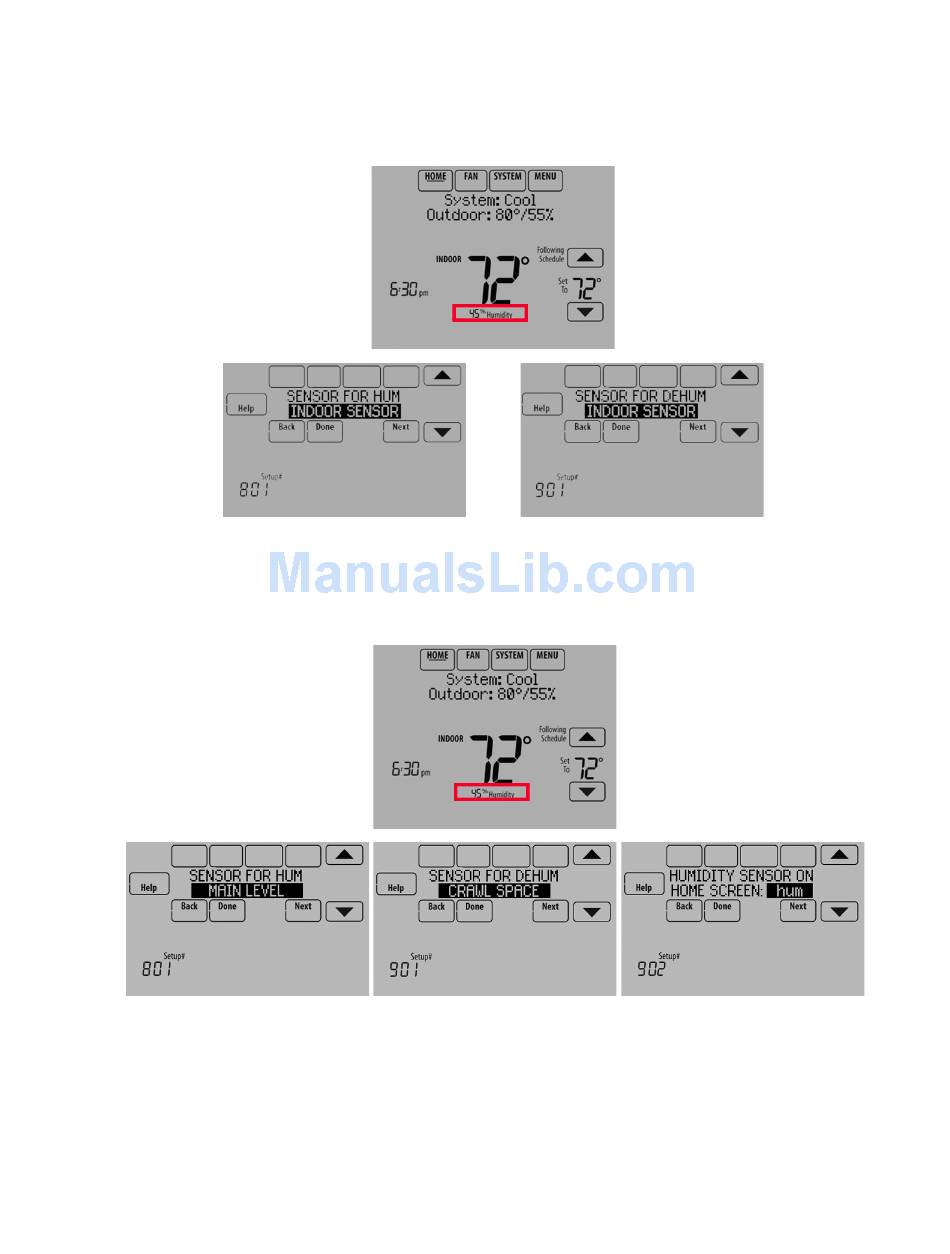

If you are sensing Humidity from one location (internal or remote), the humidity reading displayed on the home screen is from the
sensor that is being used for control. In Fig. 308, the humidity reading is from the remote indoor sensor.
If you are sensing Humidity from two separate locations (one for humidification and another for dehumidification), you can select
which humidity reading to display on the home screen. In Fig. 309, the humidity reading is from the Main Level remote indoor
sensor based on the setting in ISU.
Fig. 308.
Fig. 309.
113
®
VISIONPRO 8000 WITH REDLINK™
68-0312—01
