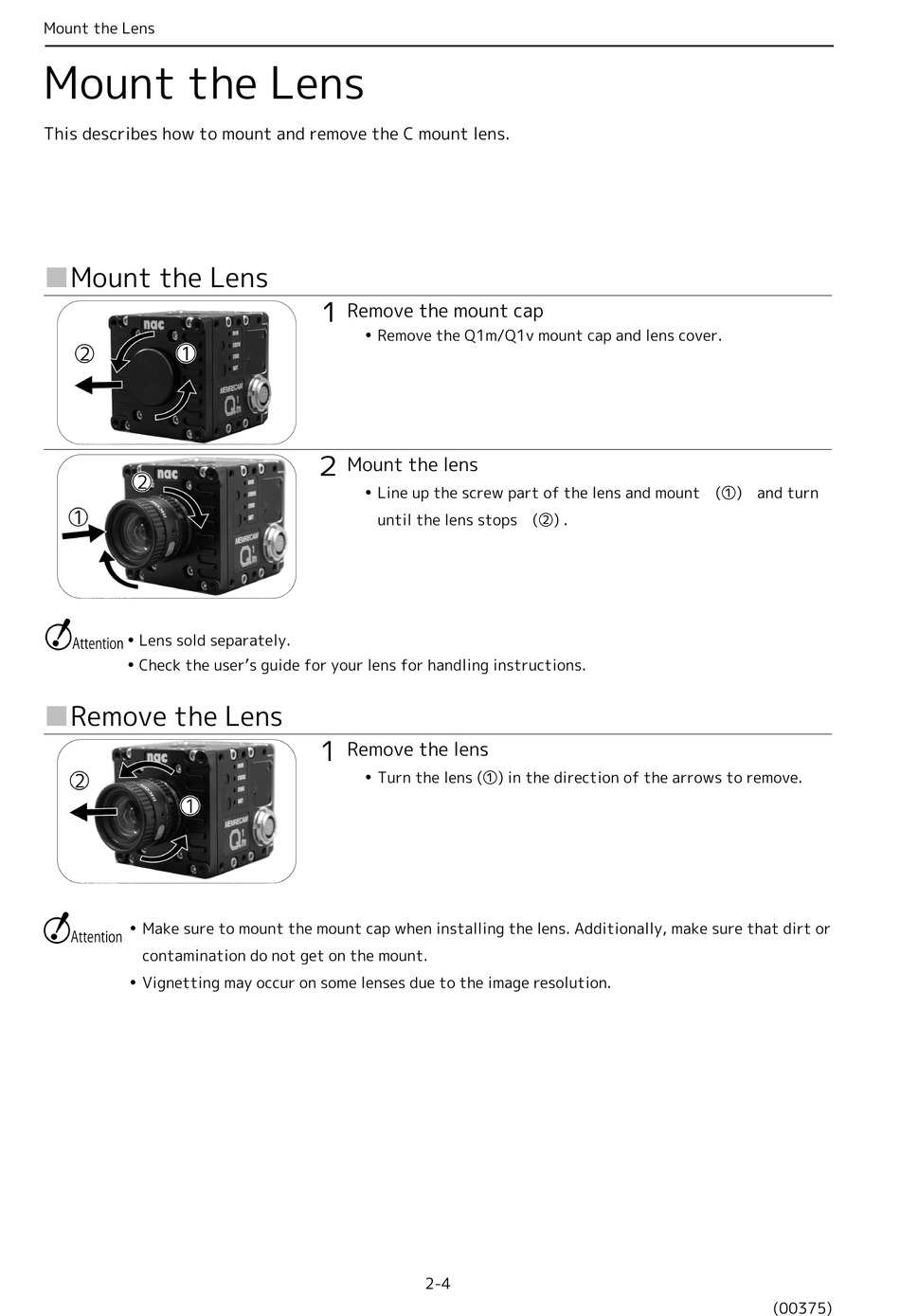

Mount the Lens

Mount the Lens

This describes how to mount and remove the C mount lens.
■Mount the Lens
 Lens sold separately.
 Check the user's guide for your lens for handling instructions.
■Remove the Lens
 Make sure to mount the mount cap when installing the lens. Additionally, make sure that dirt or
contamination do not get on the mount.
 Vignetting may occur on some lenses due to the image resolution.
１
Remove the mount cap
 Remove the Q1m/Q1v mount cap and lens cover.
２
Mount the lens
 Line up the screw part of the lens and mount (①) and turn
until the lens stops (②) .
1
Remove the lens
 Turn the lens (①) in the direction of the arrows to remove.
2-4
