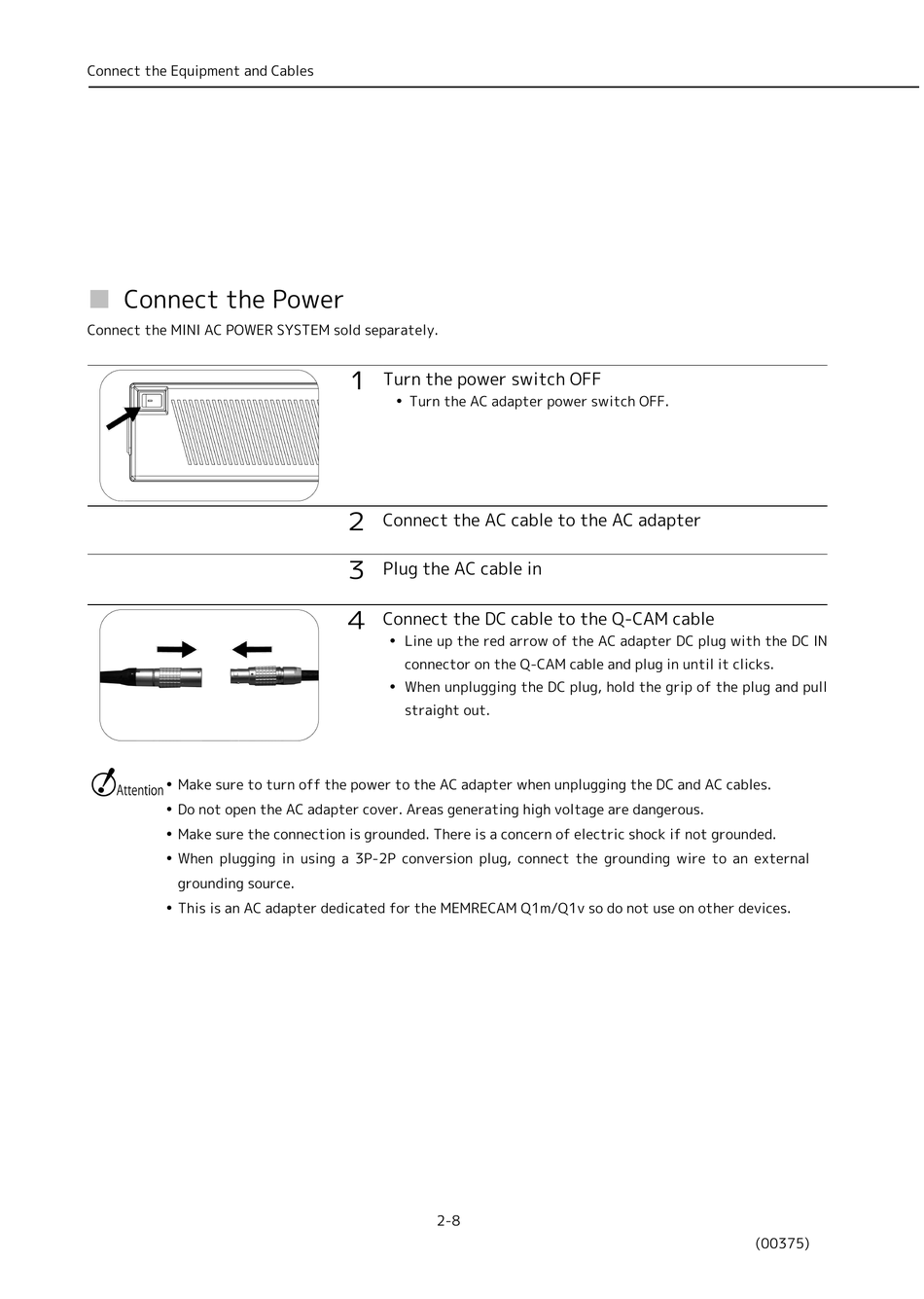

Connect the Equipment and Cables
■ Connect the Power
Connect the MINI AC POWER SYSTEM sold separately.
 Make sure to turn off the power to the AC adapter when unplugging the DC and AC cables.
 Do not open the AC adapter cover. Areas generating high voltage are dangerous.
 Make sure the connection is grounded. There is a concern of electric shock if not grounded.
 When plugging in using a 3P-2P conversion plug, connect the grounding wire to an external
grounding source.
 This is an AC adapter dedicated for the MEMRECAM Q1m/Q1v so do not use on other devices.
１
Turn the power switch OFF
 Turn the AC adapter power switch OFF.
２
Connect the AC cable to the AC adapter
３
Plug the AC cable in
４
Connect the DC cable to the Q-CAM cable
 Line up the red arrow of the AC adapter DC plug with the DC IN
connector on the Q-CAM cable and plug in until it clicks.
 When unplugging the DC plug, hold the grip of the plug and pull
straight out.
