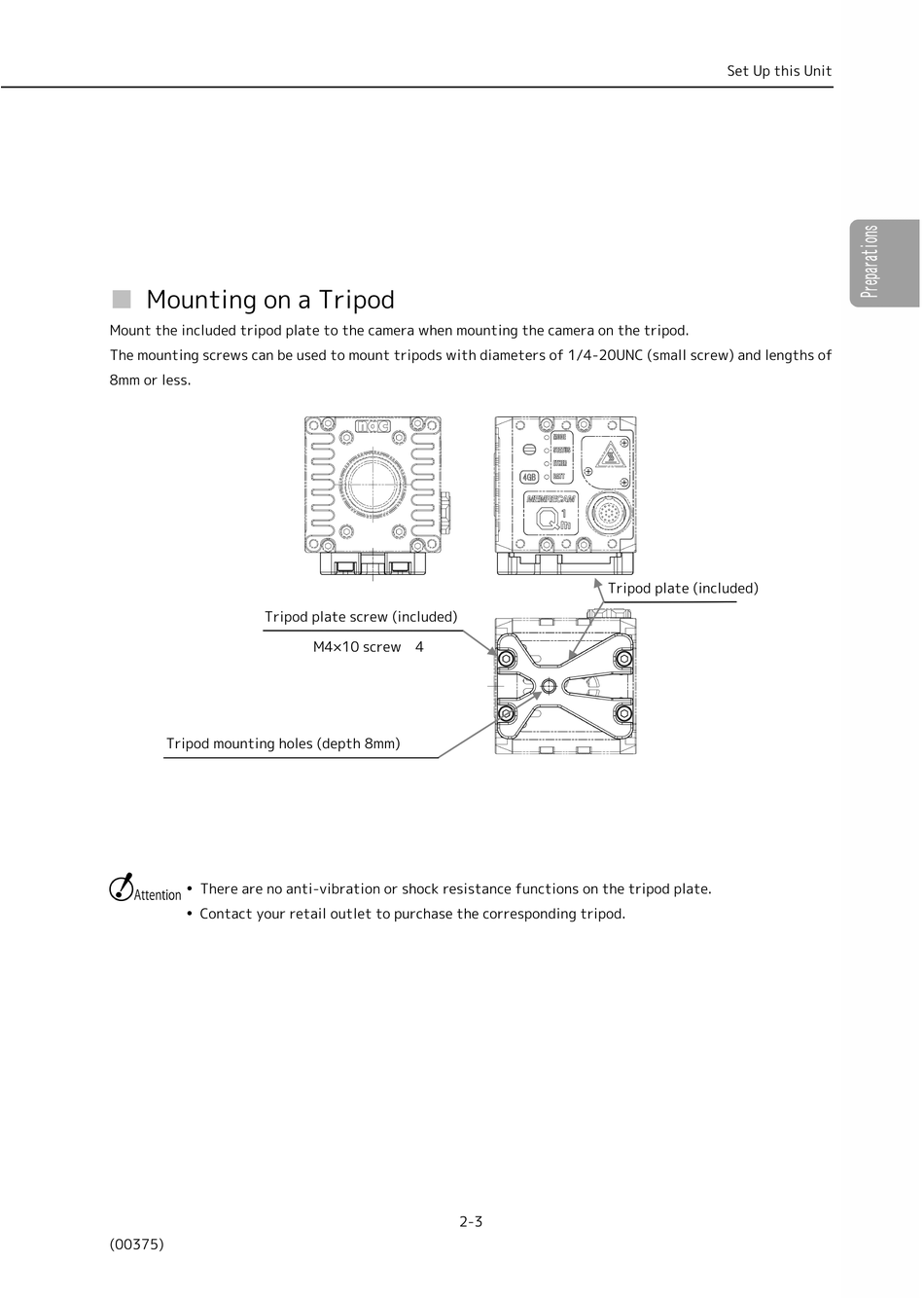

Mounting on a Tripod

Mount the included tripod plate to the camera when mounting the camera on the tripod.
The mounting screws can be used to mount tripods with diameters of 1/4-20UNC (small screw) and lengths of
8mm or less.
Tripod plate screw (included)
Tripod mounting holes (depth 8mm)
 There are no anti-vibration or shock resistance functions on the tripod plate.
 Contact your retail outlet to purchase the corresponding tripod.
(00375)
M4×10 screw 4
2-3
Set Up this Unit
Tripod plate (included)
