1.2.2 Lens Mount

The aperture ring is installed in the lens mount in MEMRECAM GX-3.（Figure 1-6）
This aperture ring is used by correspond the following.
Type of F mount lens
Lens without aperture ring
Lens with aperture ring
CAUTION When it is used by MEMRECAM GX-3, depending on representation resolution,
vignetting may produce some F mount lenses. (Example: Nikon DX Nikkor Lens)
(00235)
Stopping down the lens is adjusted with the mount aperture ring.
However, please adjust it while confirming an actual image because
the index of the mount is a rough guide.
Please turn the mount aperture ring to the conduct oneself that
stops in the direction of CLOSE (The function of the mount aperture
ring is released).
CLOSE
Lens aperture ring

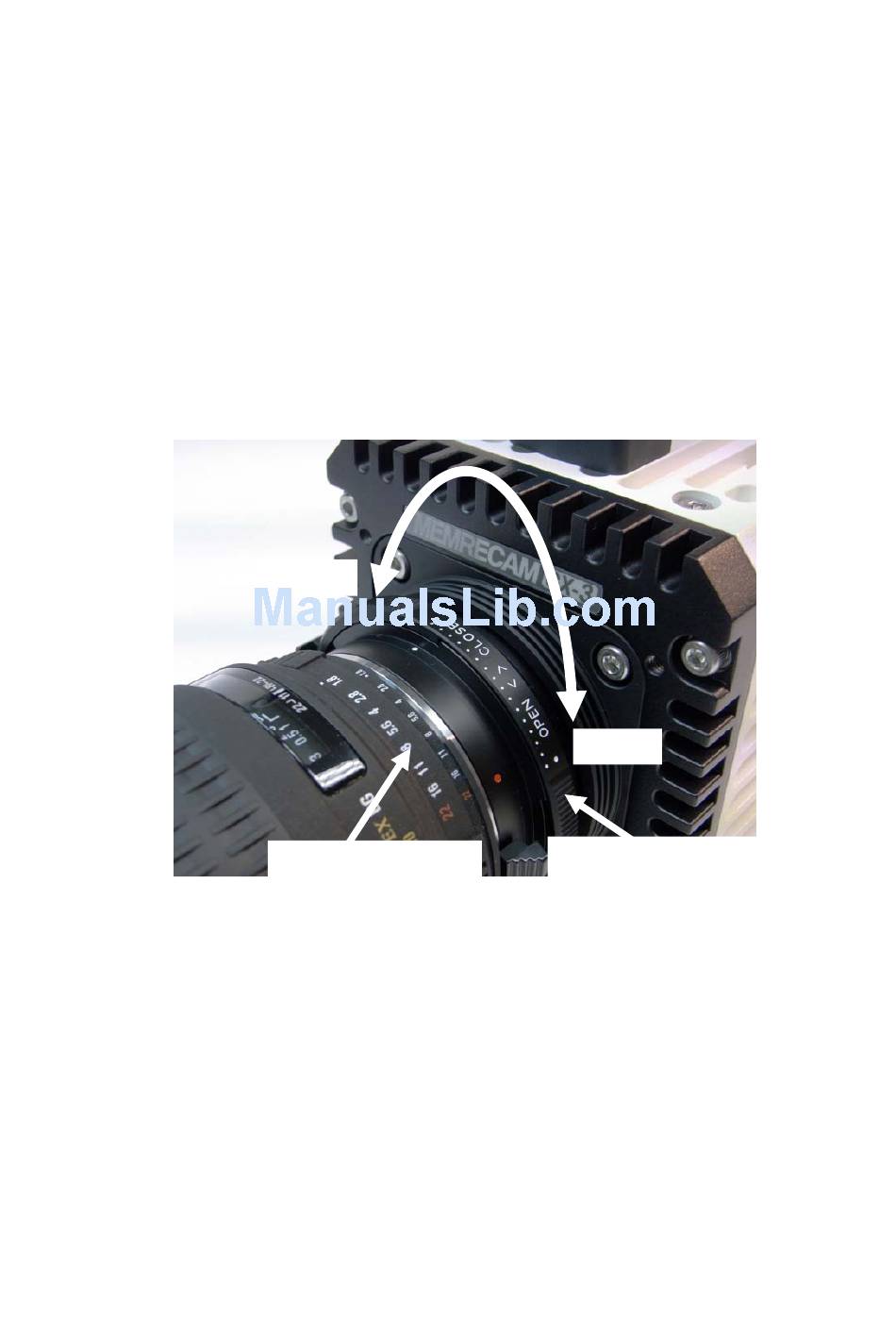

Figure 1-6 MEMRECAM GX-3（Lens Mount）
(lens: SIGMA 24 ㎜ (sold separately))
OPEN
Mount aperture ring
