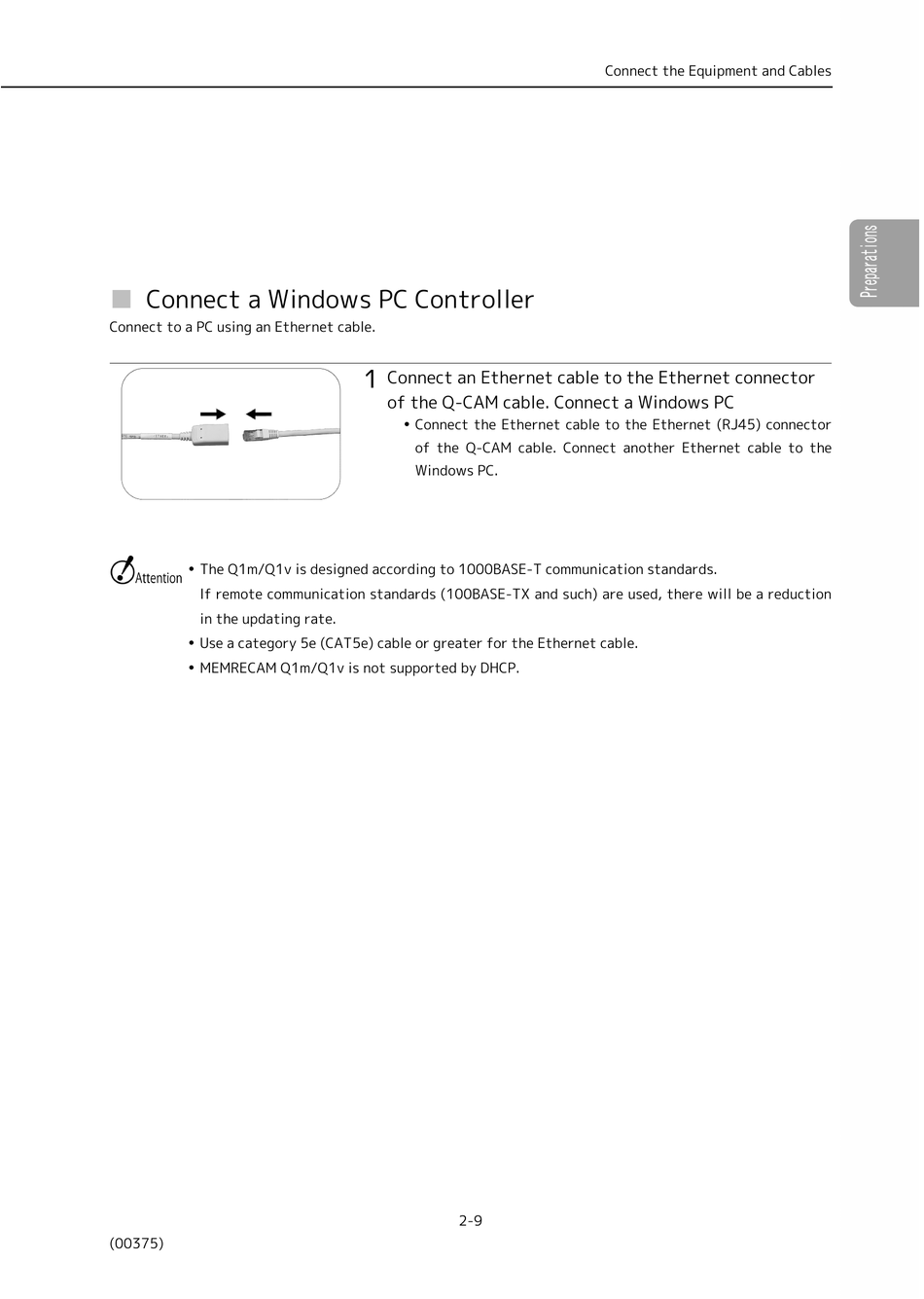

■ Connect a Windows PC Controller
Connect to a PC using an Ethernet cable.
 The Q1m/Q1v is designed according to 1000BASE-T communication standards.
If remote communication standards (100BASE-TX and such) are used, there will be a reduction
in the updating rate.
 Use a category 5e (CAT5e) cable or greater for the Ethernet cable.
 MEMRECAM Q1m/Q1v is not supported by DHCP.
(00375)
１
Connect an Ethernet cable to the Ethernet connector
of the Q-CAM cable. Connect a Windows PC
 Connect the Ethernet cable to the Ethernet (RJ45) connector
of the Q-CAM cable. Connect another Ethernet cable to the
Windows PC.
2-9
Connect the Equipment and Cables
