Elevator control horn.
INSTALL RUDDER CONTROL HORN.
Repeat steps to install the rudder control horn
as same as steps done for ailerons.
3x35mm.
CONTROL HORN
M3 SCREW.
Aluminum Washer.
Fuselage
.
Aluminum Washer.
www.seagullmodels.com
1 sets.
3mm.
Epoxy.
Rudder
.
.
M3 LOCK NUT
Fuselage
.
16mm
.

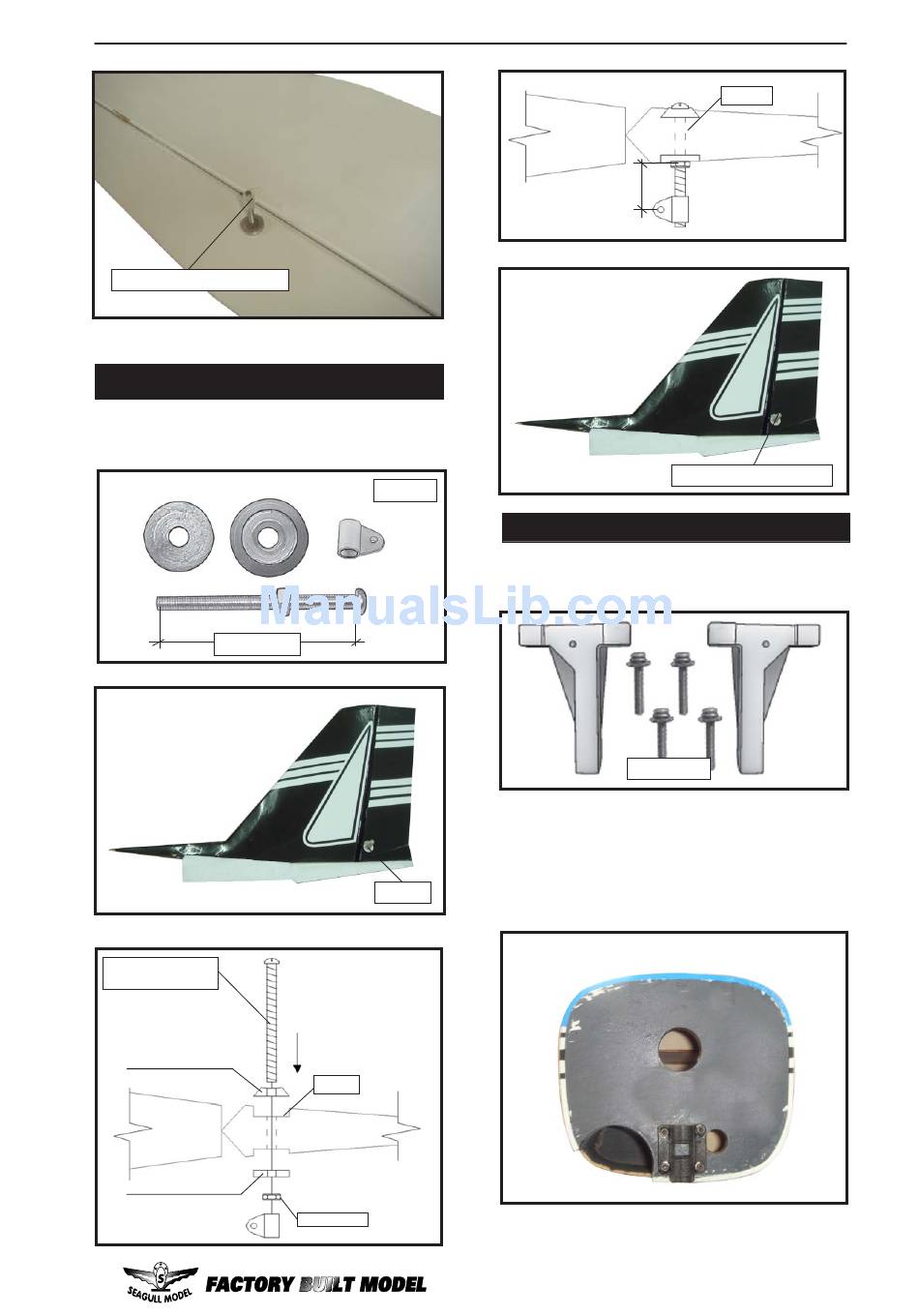

ENGINE MOUNT INSTALLATION.

1) Locate the items necessary to install the
engine mount included with your model. .
4x30mm.
2) Use four 4x30mm head bolts and four 4mm
washers to attach the engine mount rails to
the firewall. Tighten the screws . Make sure to
use threadlock on the screws to help prevent
them from vibrating loose.
Epoxy.
Rudder
.
Rudder control horn.
9
