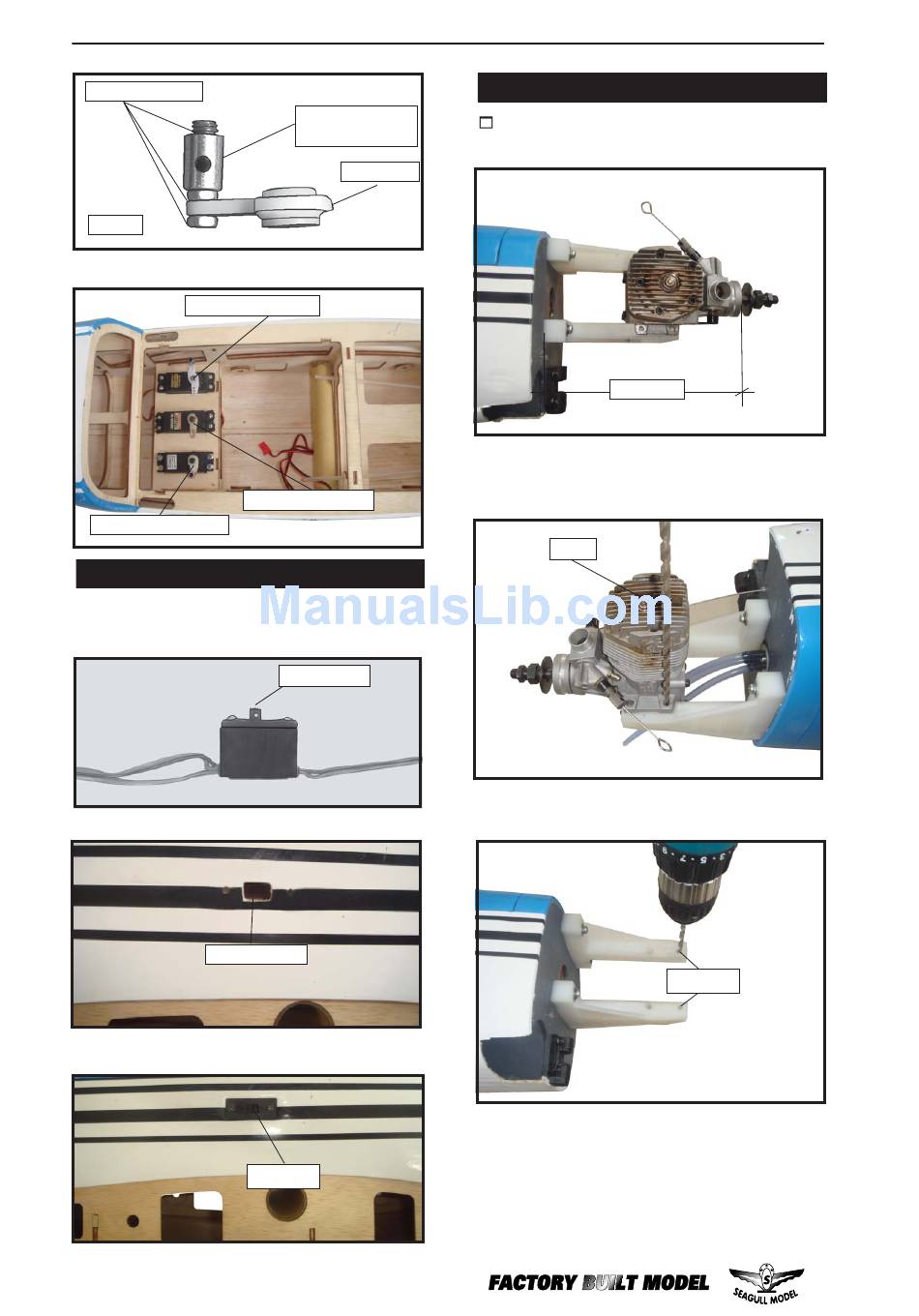

Mounting The Engine; Installing The Switch - Seagull Models Piper Comanche MS:142 Assembly Manual

PIPER COMANCHE
Loctite secure.
1 PCS.
Throttle servo arm.
Elevator servo arm.

INSTALLING THE SWITCH.

Install the switch into the precut hole in the
side, in the fuselage.
Trim and cut.
12
.
Adjustable Servo
connector.
Servo arm.
Rudder servo arm.
3/ 32" Hole.
Switch.
Instruction Manual.

MOUNTING THE ENGINE.

1) Position the engine with the drive washer
(150mm) forward of the firewall as shown.
140mm.
2) Use a pin drill and 2mm drill bit to drill a
small indentation in the mount for the engine
mounting screw.
4mm.
3) Use a drill to drill the four holes in the engine
mount rails.
4) On the fire wall has the location for the
throttle pusshrod tube (pre-drill).
4.5mm.
