Top Margin Parallel Adjustment
1. Power off
2. Remove the rear cover
3. Using a 300gsm or 14 pt. sheet as gauge, rotate the feed roller by hand to feed it into apex of
registration roller firm.

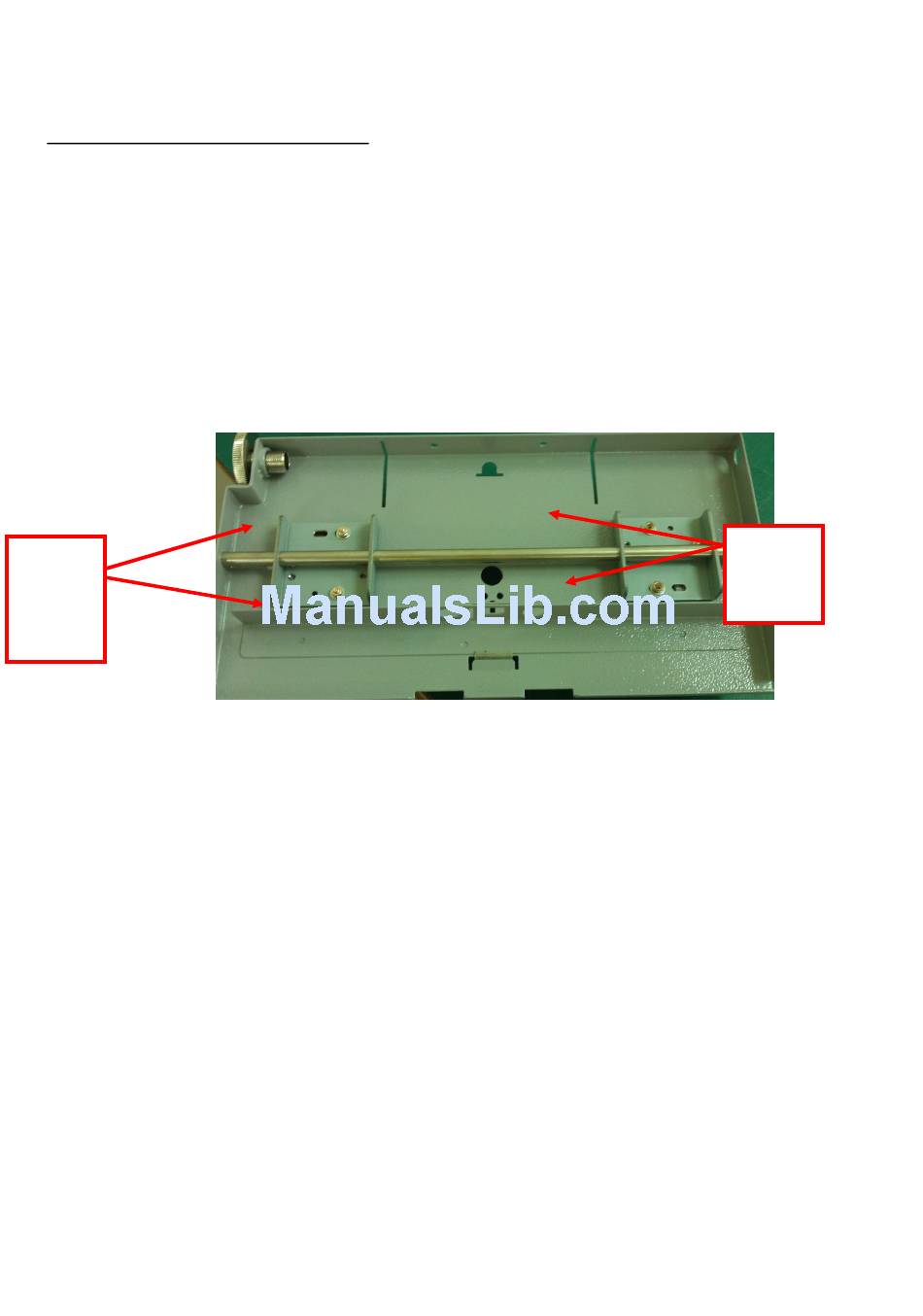

4. Underneath the feed tray has 5.5mm nut to hold the side guide, loosen the nut and align it against the
paper to make it straight. Fasten the nut.
Side
Guide
Fastening
Screw
5. Feed a sheet to cut, measure the left and right of the top margin cut is 12.7mm +/- 0.1mm, if not, re
adjust the side guide.
- 31 -
Side
Guide
Fastening
