Rear Panel

AM713
DIGITAL ANALOG
INPUTS INPUTS
MADI
OUT

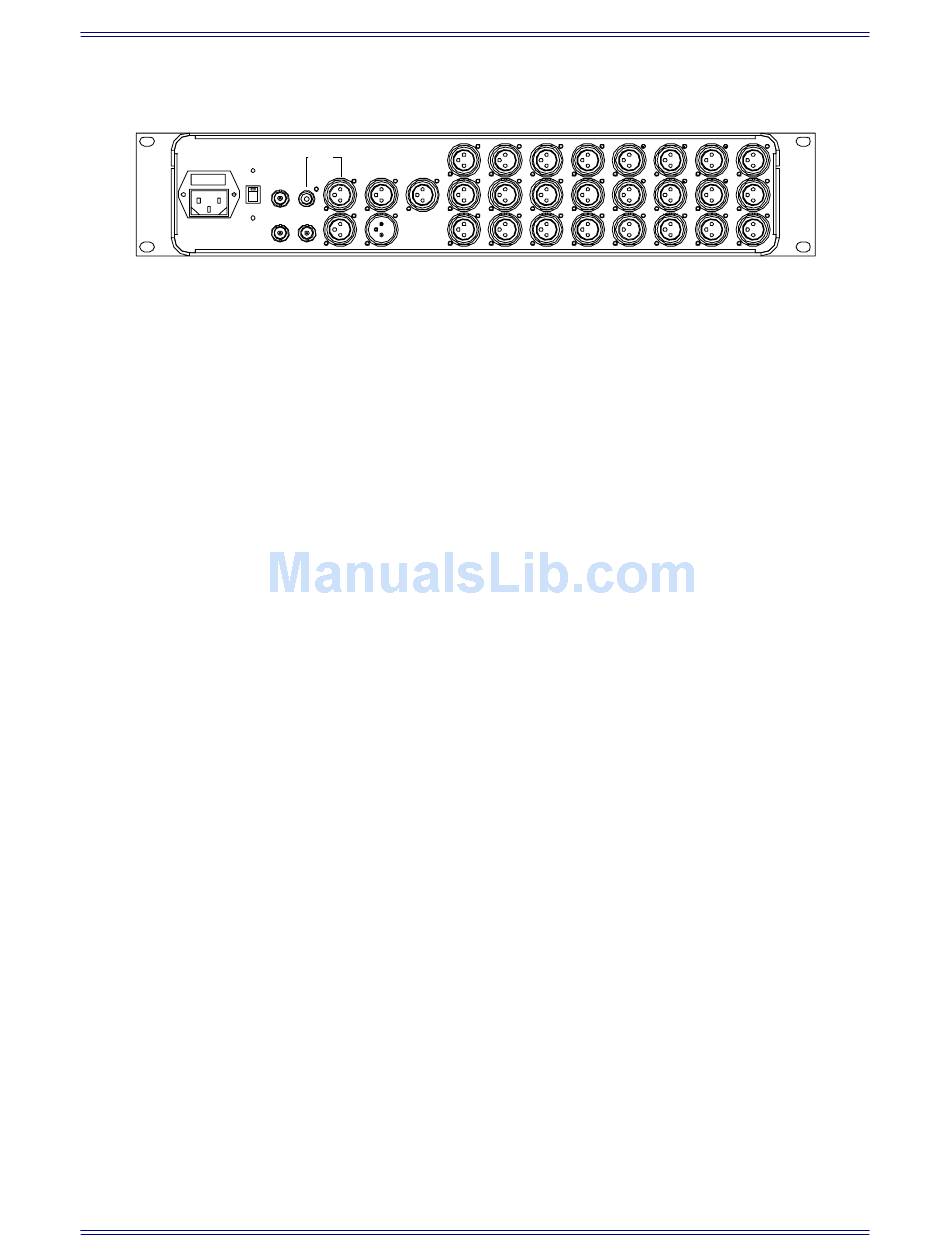

Figure 3-20 AM713 Rear Panel
Input Voltage Selector: This red switch allows the unit to operate in either 100/110/115
VAC or 220/230/240 VAC environments. A fuse must also be changed for 220/230/240
VAC operation. Units are shipped set and fused for 100/110/115 VAC.
Power Connector (IEC) and Fuse Tray: The IEC power connector accepts standard IEC
power cords. The fuse tray contains both the active fuse and a spare fuse for 220/230/240
VAC operation.
Analog Inputs (female XLR): 24 balanced, analog inputs on XLR connectors. Input sen-
sitivity is set from the front panel.
Auxiliary Analog Inputs (female XLR): Two balanced analog inputs on XLR connectors. In-
put sensitivity is set from the front panel.
AES/EBU Digital Input (female XLR): Stereo AES/EBU digital input on one XLR con-
nector. Functions in parallel with the auxiliary S/PDIF input and the two inputs should not
be used simultaneously.
S/PDIF Digital Input (RCA): Stereo S/PDIF digital input on one RCA connector. Func-
tions in parallel with the auxiliary AES/EBU input and the two inputs should not be used
simultaneously.
AES Sync In (female XLR): Master clock input for the converter when using AES as Sam-
ple Rate Source.
AES Sync Thru (male XLR): Outputs the same signal connected to AES Sync In.
Word In (BNC): Master clock input for the converter when using Word Clock as Sample
Rate Source.
Word Out (BNC): Outputs a Word clock signal synchronized to the Sample Rate Source.
In the presence of an external Word clock input, this connector provides a regenerated
version of that input signal. Without an external sample rate source, this connector outputs
the internally generated clock signal.
