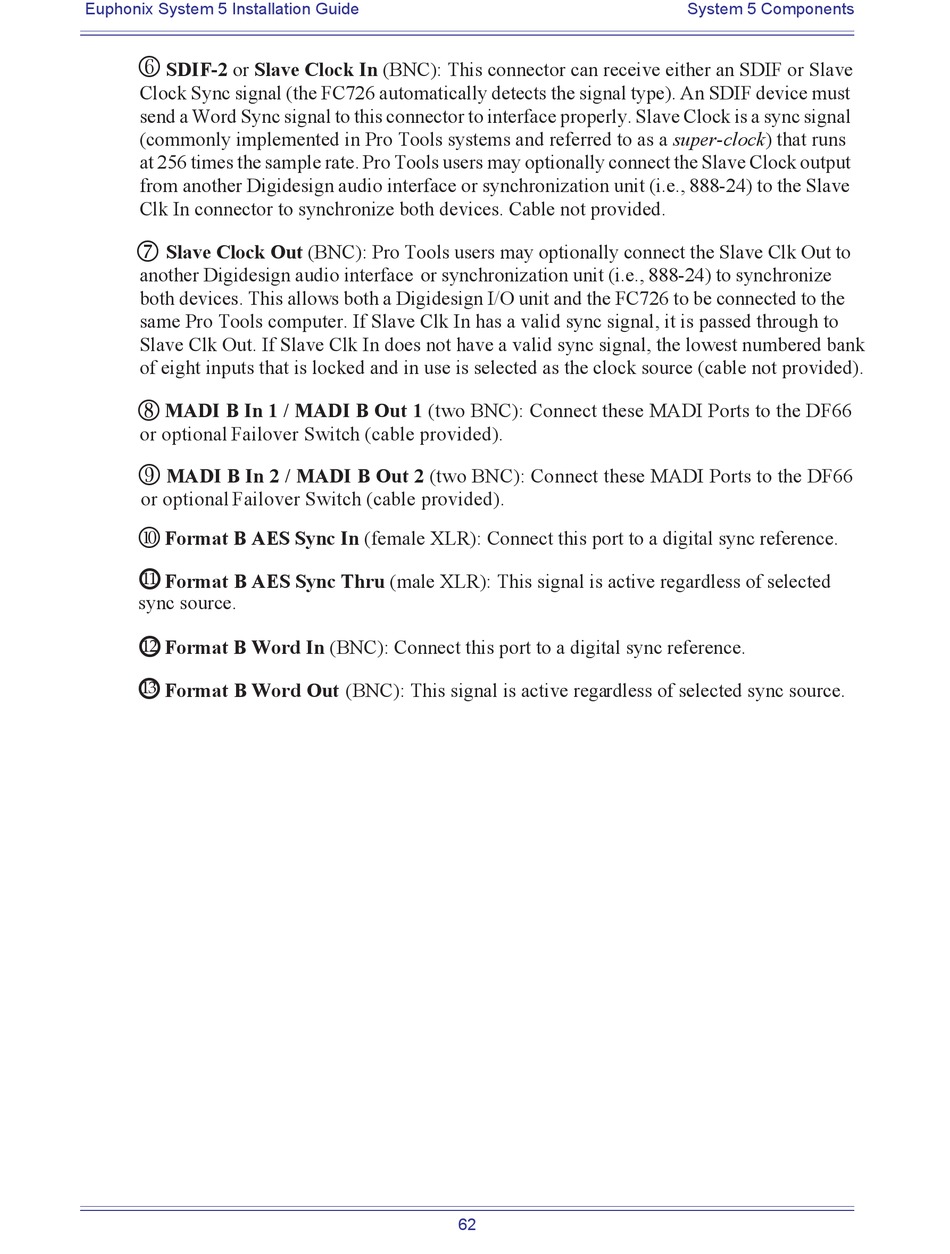

Euphonix System 5 Installation Guide

SDIF-2 or Slave Clock In (BNC): This connector can receive either an SDIF or Slave

Clock Sync signal (the FC726 automatically detects the signal type). An SDIF device must

send a Word Sync signal to this connector to interface properly. Slave Clock is a sync signal

(commonly implemented in Pro Tools systems and referred to as a super-clock) that runs

at 256 times the sample rate. Pro Tools users may optionally connect the Slave Clock output

from another Digidesign audio interface or synchronization unit (i.e., 888-24) to the Slave

Clk In connector to synchronize both devices. Cable not provided.

Slave Clock Out (BNC): Pro Tools users may optionally connect the Slave Clk Out to

another Digidesign audio interface or synchronization unit (i.e., 888-24) to synchronize

both devices. This allows both a Digi design I/O unit and the FC726 to be connected to the

same Pro Tools computer. If Slave Clk In has a vali d sync signal, it is passed through to

Slave Clk Out. If Slave Clk In does not have a vali d sync signal, the lowest numbered bank

of eight inputs that is locked and in use is sel ected as the clock source (cable not provided).

MADI B In 1 / MADI B Out 1 (two BNC): Connect these MADI Ports to the DF66

or optional Failover Switch (cable provided).

MADI B In 2 / MADI B Out 2 (two BNC): Connect these MADI Ports to the DF66

or optional Failover Switch (cable provided).

Format B AES Sync In (female XLR): Connect this port to a digital sync reference.

Format B AES Sync Thru (male XLR): This signal is active regardless of selected

sync source.

Format B Word In (BNC): Connect this port to a digital sync reference.

Format B Word Out (BNC): This signal is active regardless of selected sync source.

System 5 Components
