Euphonix System 5 Installation Guide
Word Out (BNC): Outputs a Word clock signal synchronized to the Sample Rate Source.
In the presence of an external Word clock input, this connector provides a regenerated ver-
sion of that input signal. Without an external sample rate source, this connector outputs the
internally generated clock signal.
MADI Out (BNC): Outputs the digital audio signal.
1–24:
•
• 25–26: Aux analog inputs
• 27–28: Aux digital inputs
NOTE: 28 channels are always transmitted; dual channels are not used.
Pin #

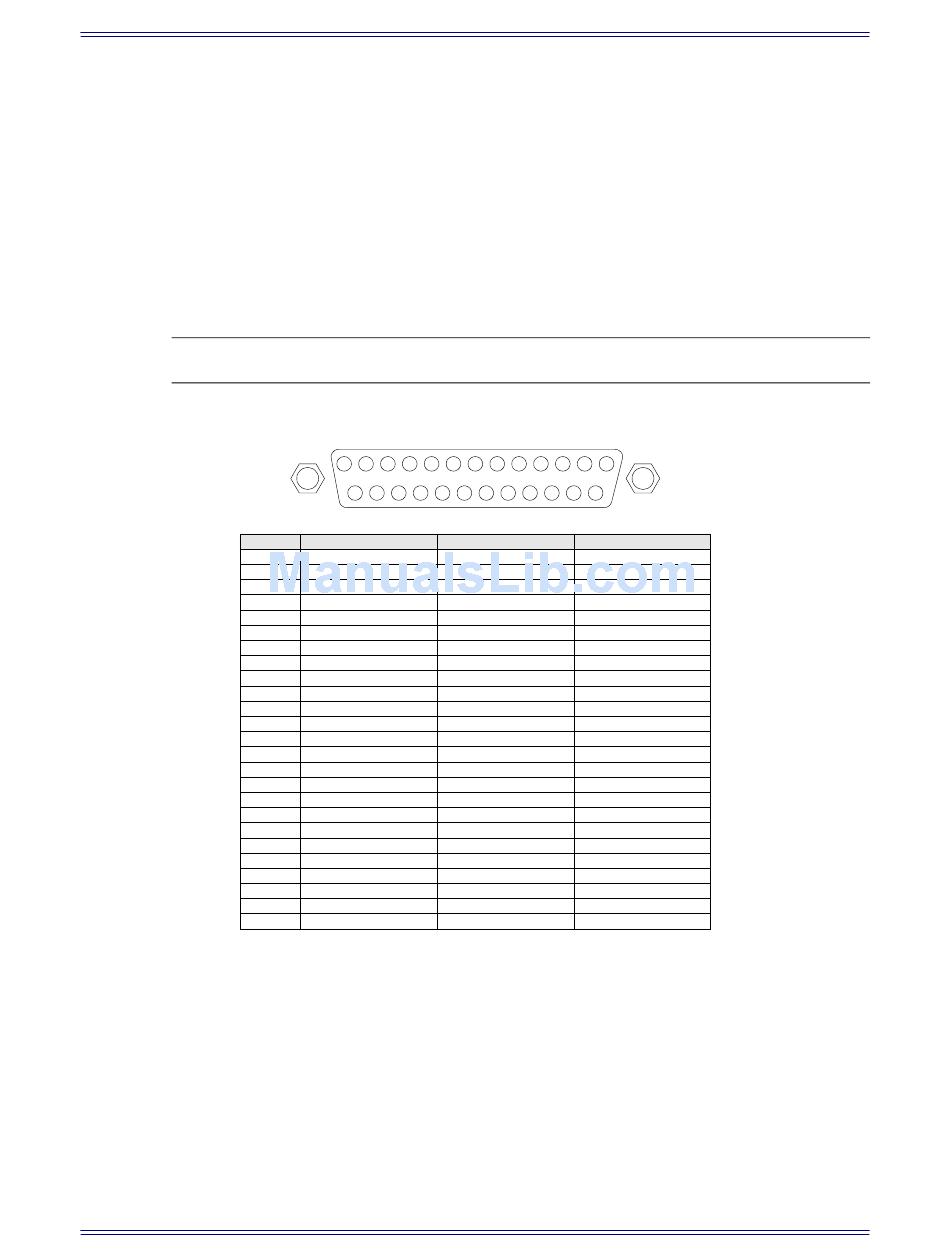

Figure 3-25 DM714 Parallel AES/EBU Digital Inputs: Female DB-25
Main digital inputs
13
25
Connector 1
1 N/C
2 N/C
3 N/C
4 N/C
5 N/C
6 N/C
7 Digital In 7/8+
8 GND
9 Digital In 5/6-
10 Digital In 3/4+
11 GND
12 Digital In 1/2-
13 N/C
14 N/C
15 N/C
16 N/C
17 N/C
18 N/C
19 N/C
20 Digital In 7/8-
21 Digital In 5/6+
22 GND
23 Digital In 3/4-
24 Digital In 1/2+
25 GND
1
14
Connector 2 Connector 3
N/C N/C
N/C N/C
N/C N/C
N/C N/C
N/C N/C
N/C N/C
Digital In 15/16+ Digital In 23/24+
GND GND
Digital In 13/14- Digital In 21/22-
Digital In 11/12+ Digital In 19/20+
GND GND
Digital In 9/10- Digital In 17/18-
N/C N/C
N/C N/C
N/C N/C
N/C N/C
N/C N/C
N/C N/C
N/C N/C
Digital In 15/16- Digital In 23/24-
Digital In 13/14+ Digital In 21/22+
GND GND
Digital In 11/12- Digital In 19/20-
Digital In 9/10+ Digital In 17/18+
GND GND
57
System 5 Components
