Euphonix System 5 Installation Guide

ML530 Mic/Line Interface

1
2
9
10
17
18
Inputs (two 38-pin ELCO sockets): A total of 24 microphone inputs are received on two
38-pin ELCO connectors (connectors and pins provided).
Outputs (two 38-pin ELCO sockets): A total of 24 outputs are provided on two 38-pin
ELCO connectors. These outputs feed an AM713 Analog to MADI Converter (a 24 male
XLR to 38-pin ELCO cable is provided).
Control (DA-15): Connect to PC254i Interface Pi lot Computer via TCC breakout cable
(provided). All patching, switching and gain controls are communicated via this connection.
AC Line In (IEC) and Fuse Tray: Accepts standard IEC power cord (provided). An
autoranging switching supply accepts voltages between 90–250 VAC, 50–60 Hz.
3
4
5
6
11
12
13
14
15
19
20
21
22
23
ML530
CONTROL

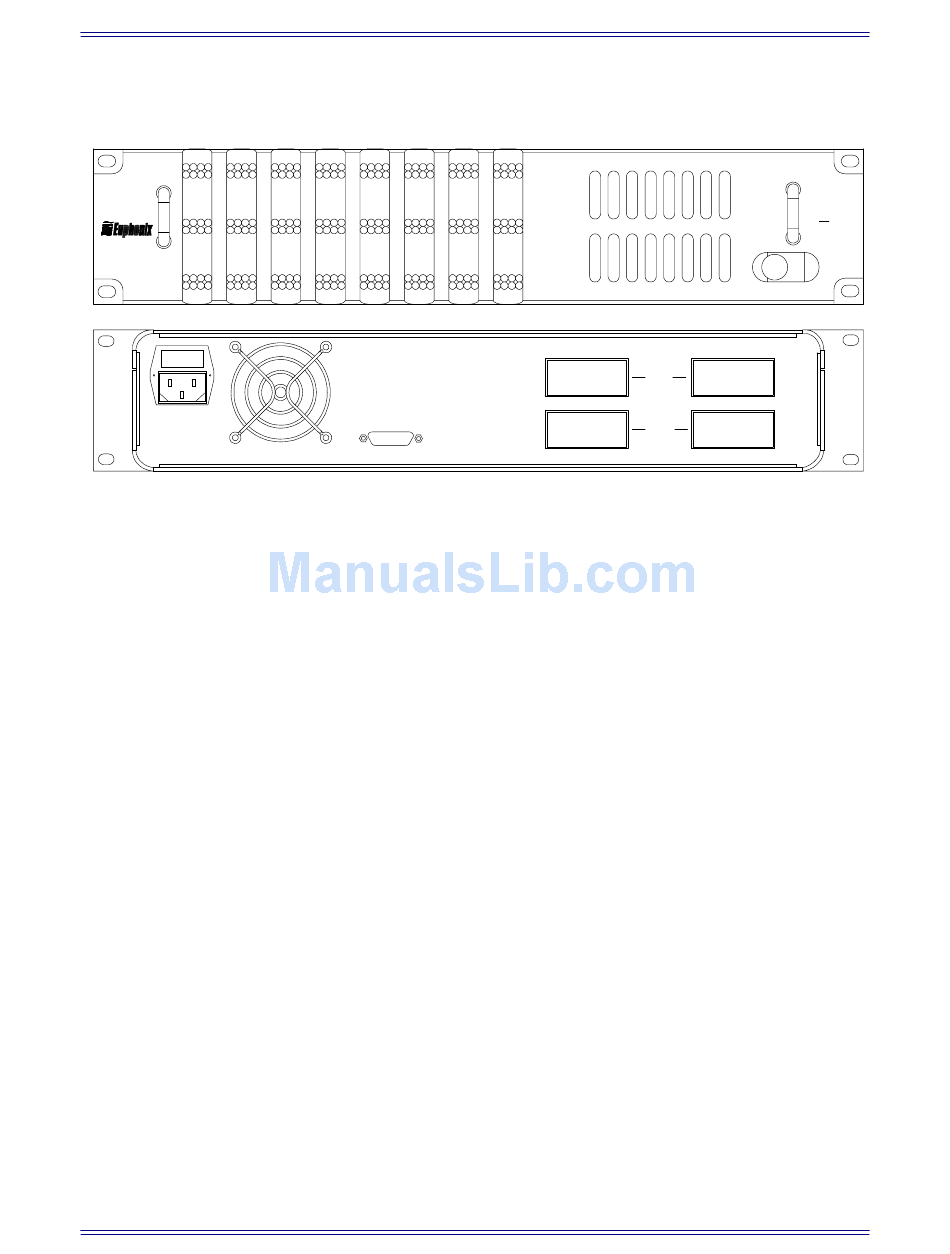

Figure 3-15 ML530 Front and Rear Panels
7
8
16
24
OUTPUTS
46
System 5 Components
MIC LINE INTERFACE
ML
INPUTS
1-12
13-24
530
