Euphonix System 5 Installation Guide

TT007

The TT007 is an optional rack-mount device that provides machine control for all Eu-
phonix consoles. The TT007 allows the console to become the single, centralized machine
control hub within any studio. Virtually every machine, in or out of the control room, can
be remotely controlled from the console at the press of a button. The flexibility gained from
the addition of the TT007 is unprecedented. These are a few of the many features that can
be seamlessly implemented with the TT007:
• Entire machine networks can be configured and set into motion directly from
the console.
• user nameable, instantly accessible locate points
• automatic transport cycling
• jogging and variable shuttle
• control tape decks, DAWs, and other synchronizers
All timecode formats and frame rates are supported, including MIDI Time Code (MTC)
and external video sync. MIDI Machine Control (MMC), the TimeLine Lynx™ network,
and Sony 9-pin (P2) protocols work right "out of the box" to insure that starting to work
with the TT007 is quick and easy. Three MIDI and three serial machine ports are available.
The TT007 also has a built-in timecode generator and LTC reader.
TT007
6
VIDEO
RS422
OUT IN S 1
TC WINDOW SYNC
OUT IN S 1
TC WINDOW SYNC
Video In
Video Out/Thru
The TT007's front panel is very easy to master. Dedicated Port buttons instantly access in-
dividual assignments for each machine control Port. Any Port can be defined as a master,
controller, or slave. A single master acts as the synchronization source for all machines in
the network.
Port keys Menu keys
PC V
S1 S2 S3 I U E
1 4 5 P XIT
2 3
7 8 9 0
M1 M2 M3 T R T G
D E
C C
OWN NTER
MIDI M1
TT007
O
UT
S 2 S 3 S 4
O
S 2 S 3 S 4 UT
Serial Ports (S 1-3)
Expansion Port

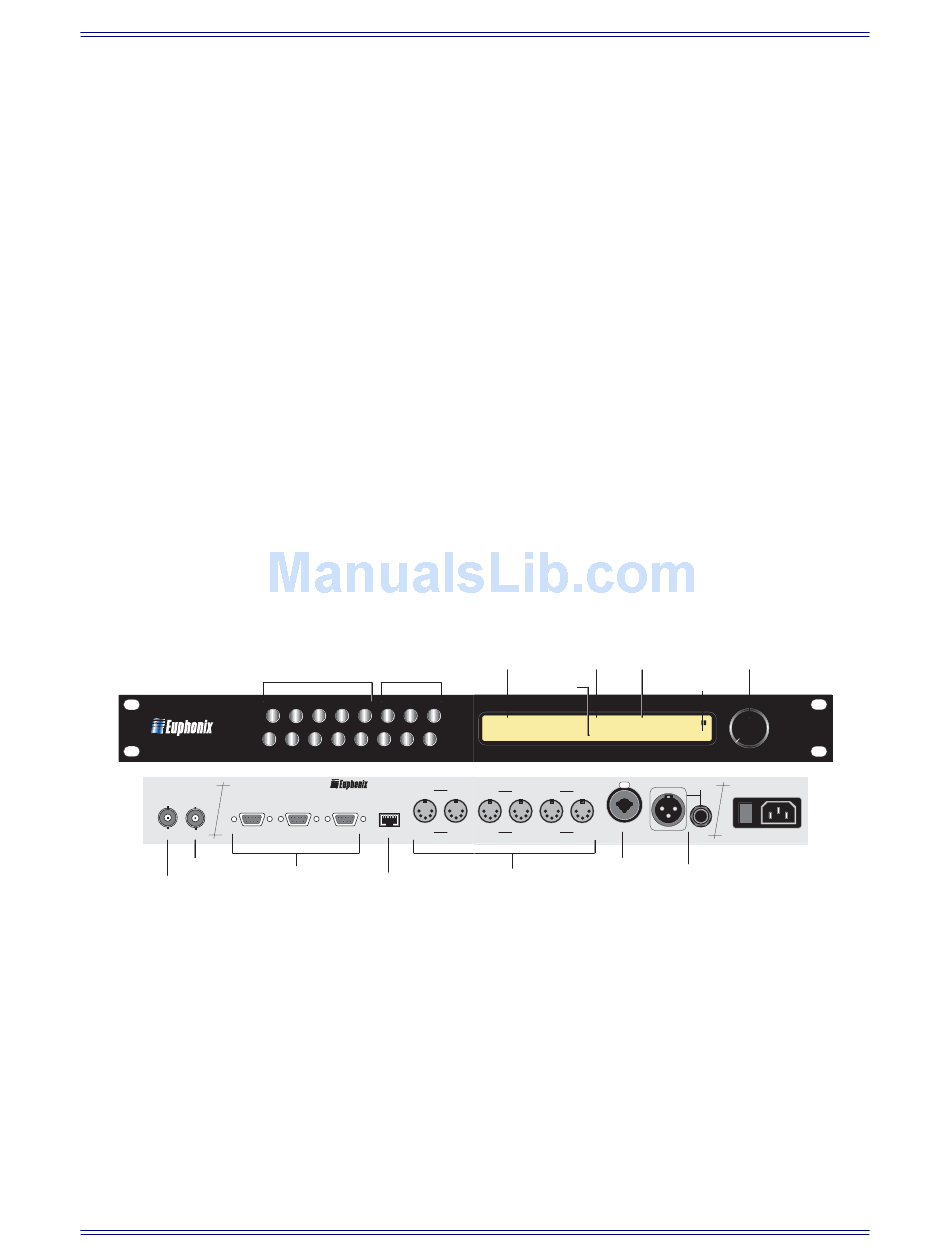

Figure 3-32 TT007 front and rear panels
Timecode Timecode
LCD Display
Format Readouts
Preset #
S 1s S 2 S 3 - - Vi - 30: S T G 00: 50: 02: 06
M 1s M 2c M 3 T R T G P: 01 M 2 00: 50: 02. 06
M 2 M 3
I O I O I
N UT N UT N
I O I O I TR I
N
N UT N UT N
Timecode Reader
MIDI Ports (M 1-3) (TR In)
70
System 5 Components
Data Wheel
Transport Status Icon
TR I
N TG O AC I 100 260
UT NPUT V TO V
50 60 H
TO Z
O
I
TG O
UT
T
I MECODE
Timecode Generator
(TG Out)
