Failover Switch

n
l
o
j
Network Port (RJ45): Connect to the Eucon Network Switch via the RJ-45 cable
provided.
k
MADI In / Out Ports (96 Combo D): Digital audio in and outs. See the MADI
Hookup
l
GP Inputs (DE-9): Can be configured using internal jumpers to accept momentary
or closed control inputs.
m
SNMP Network Port (RJ45): Optional connection for external network.
n
SNMP Service Port (DE-9): Optional connection for SNMP management.
o
Power Connectors (IEC): Accepts two standard IEC power cords (provided). Two autorang-
ing switching supplies accept voltages between 100–240 VAC, 50–60 Hz.
SNMP Monitoring (Optional)
The SNMP System Management Controller monitors operating condtions and notifies
the user to take action to avert system failure. It provides a simple way to manage
remote devices and adds a dimension of security to critical applications. The system
management controller is web-enabled and supports mulitple communication protocols.
m
j

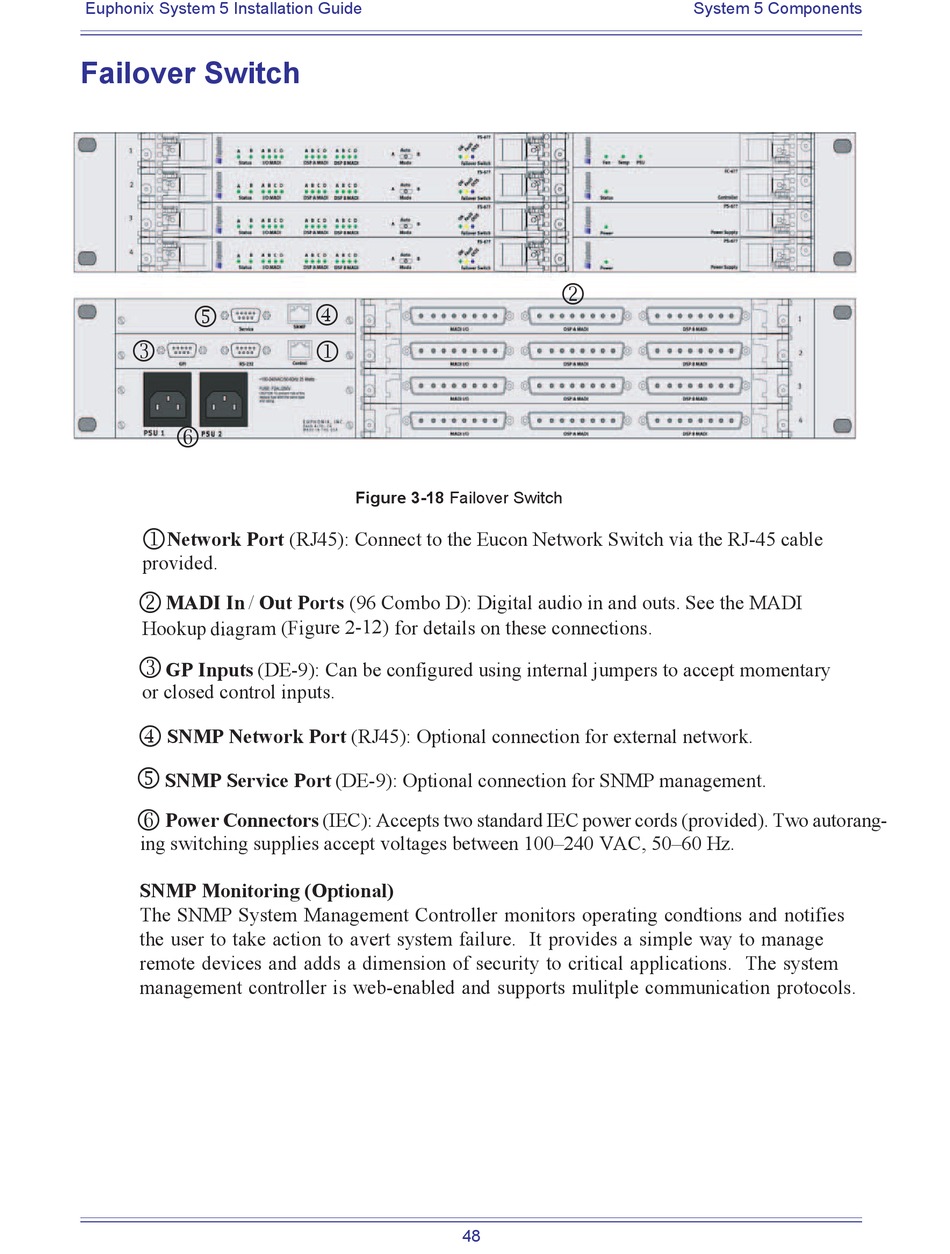

Figure 3-18 Failover Switch
for details on these connections.
