Euphonix System 5 Installation Guide
MADI Hookup
DF66 with 1 DSP
Line Card
One DF66 with >1
DSP Line Cards
DF66
MADI Inputs
A
B
C
D
MADI Outputs
MA703 MADI to Analog
A
Converter for MC524
Monitor Interface
B
C
D
card 1
SP662 Line DSP Cards

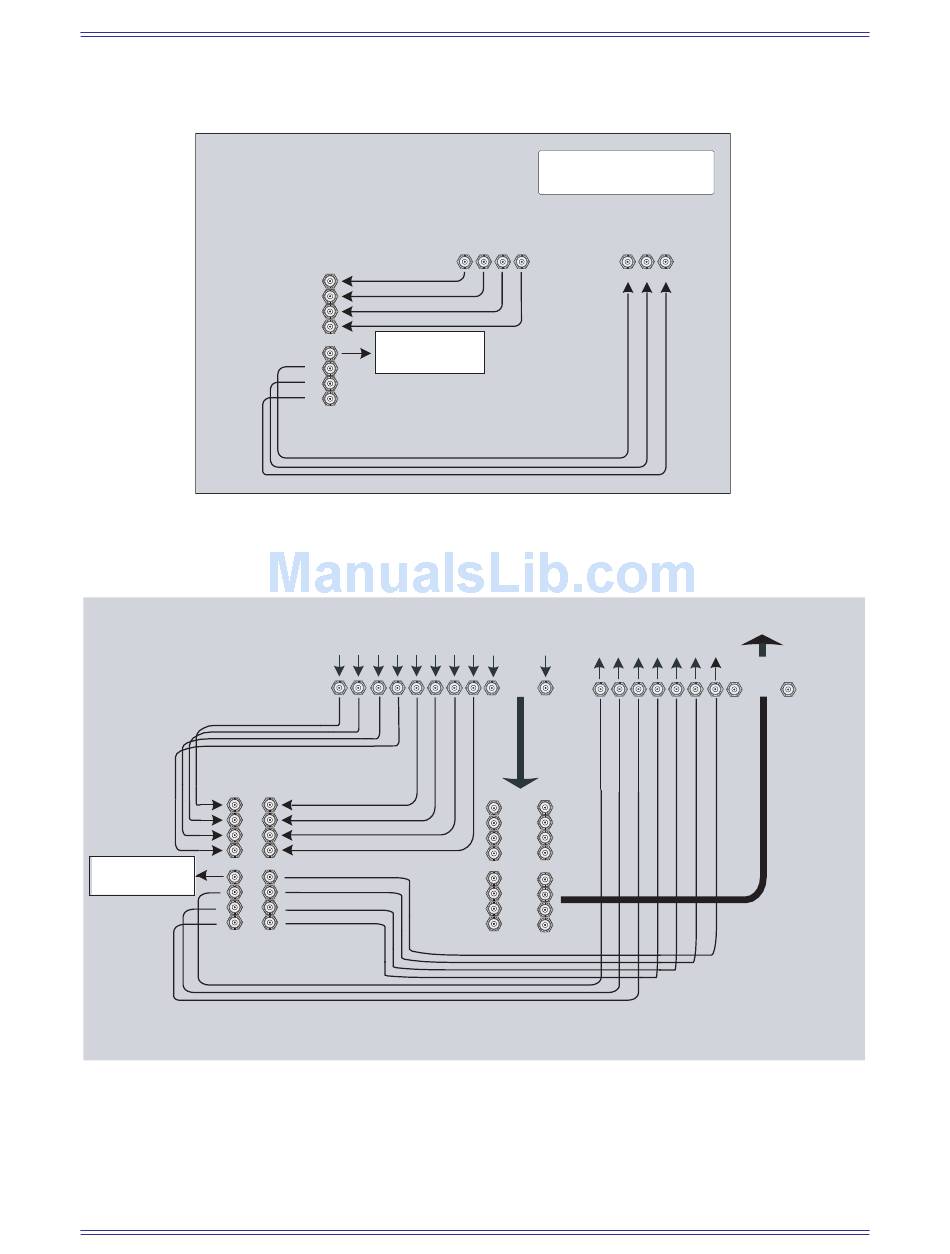

Figure 2-12: MADI hookup: one DF66 core, 1 or >1 DSP Line Cards.
DF66
MADI Inputs
A
B
C
D
MADI Outputs
MA703 MADI to Analog
A
Converter for MC524
B
Monitor Interface
C
D
SP662
DSP Line
Card
Source MADI Outputs
card 2
Interconnecting System Components
Maximum MADI
Cable Distance: 165 ft (50m)
Source
Destination
MADI Inputs
MADI Outputs
Destination MADI Inputs
up to 16
more
Source
outputs
..........
MADI Inputs
.........
MADI Outputs
.........
up to 4
more cards
29
up to 16 more
Destination
inputs
..........
