Rear Panels
INTERNAL INTERNAL EXTERNAL EXTERNAL
TALKBACK MIC TALKBACK MIC TALKBACK MIC TALKBACK MIC
TO KVM TO KVM
EXTENDER EXTENDER
MOUSE MOUSE
KEYBOARD KEYBOARD
SERVICE SERVICE
Power Connectors (IEC): Accepts two standard IEC power cords (provided). Two au-
toranging switching supplies accept voltages between 100–240 VAC, 50–60 Hz.
LAN Port (RJ45): Connect to EuCon Network Hub via RJ45 through the console
ethernet harness (provided).
To KVM Extender (RJ45): Connection to KVM extender (CM404 only)
Talkback (XLR): Connection to the internal and external talkback microphones.
Keyboard and Mouse (PS2): Connection to the keyboard and mouse or trackball.
Serial 1, 2 (DB9): RS232 serial ports (for service only).
Service (DB15HD, PS2): VGA video and keyboard connection (for service only).

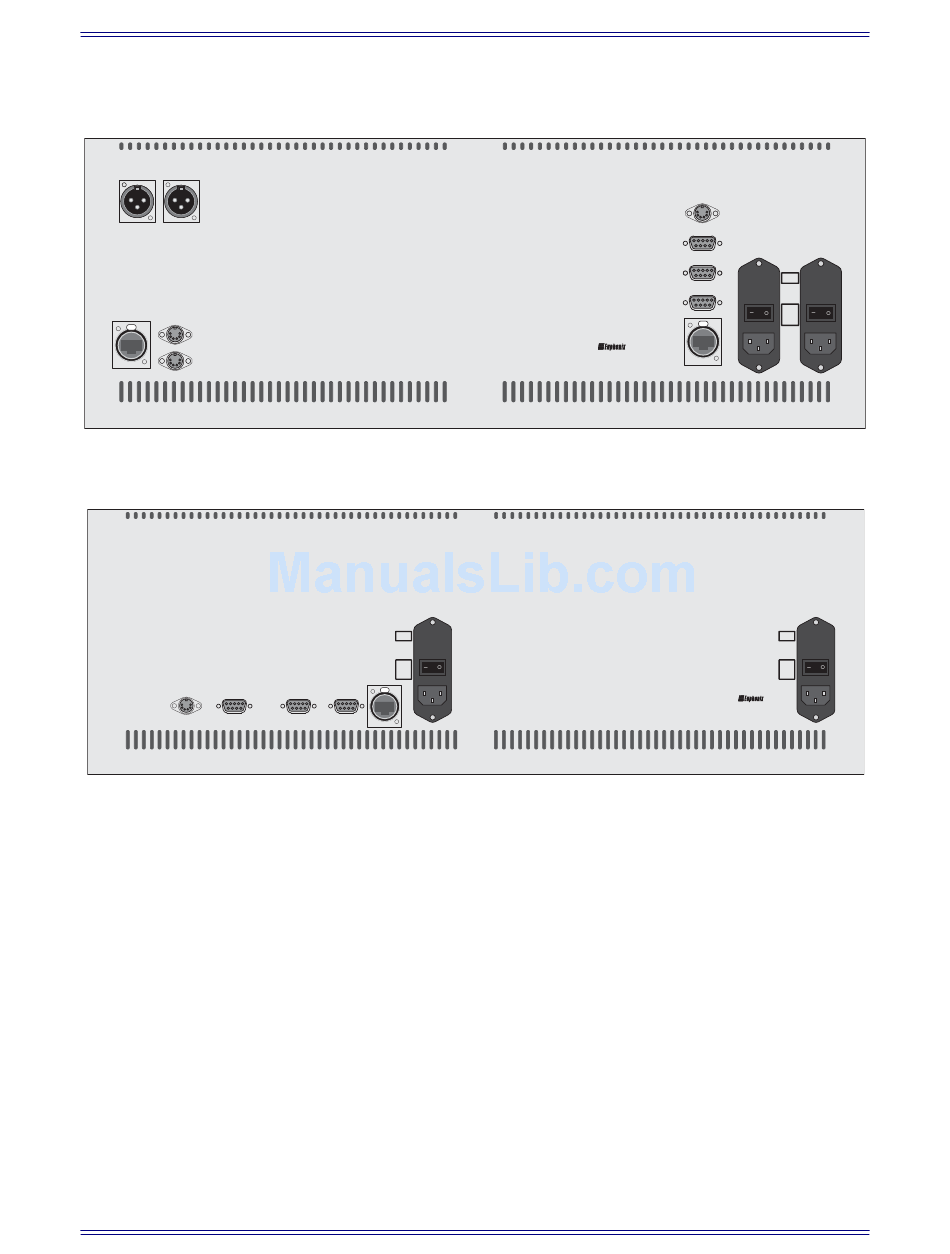

Figure 2 CM404 Rear Panel
AC IN 1 AC IN 1
T 5.0 AH
250 V
Caution:
To prevent risk
of fire, replace
fuse with the
same type and
rating.
~100-240V
AC
50-60 Hz
250 Watts
LAN LAN
SERIAL 1 SERIAL 1 SERIAL 2 SERIAL 2
Figure 3 CM416 Rear Panel

CM404

CM404
8
SERVICE SERVICE
AC IN 1 AC IN 1 AC IN 2 AC IN 2
SERIAL 1 SERIAL 1
T 5.0 AH
250 V
Caution:
To prevent risk
of fire, replace
fuse with the
same type and
rating.
SERIAL 2 SERIAL 2
~100-240V
AC
50-60 Hz
250 Watts
LAN LAN
AC IN 2 AC IN 2
T 5.0 AH
250 V
Caution:
To prevent risk
of fire, replace
fuse with the
same type and
rating.
~100-240V
AC
50-60 Hz
250 Watts

CM416

CM416
