Paper Feed Unit (D573)

1.2.13 PAPER FEED CLUTCH AND RELAY CLUTCH

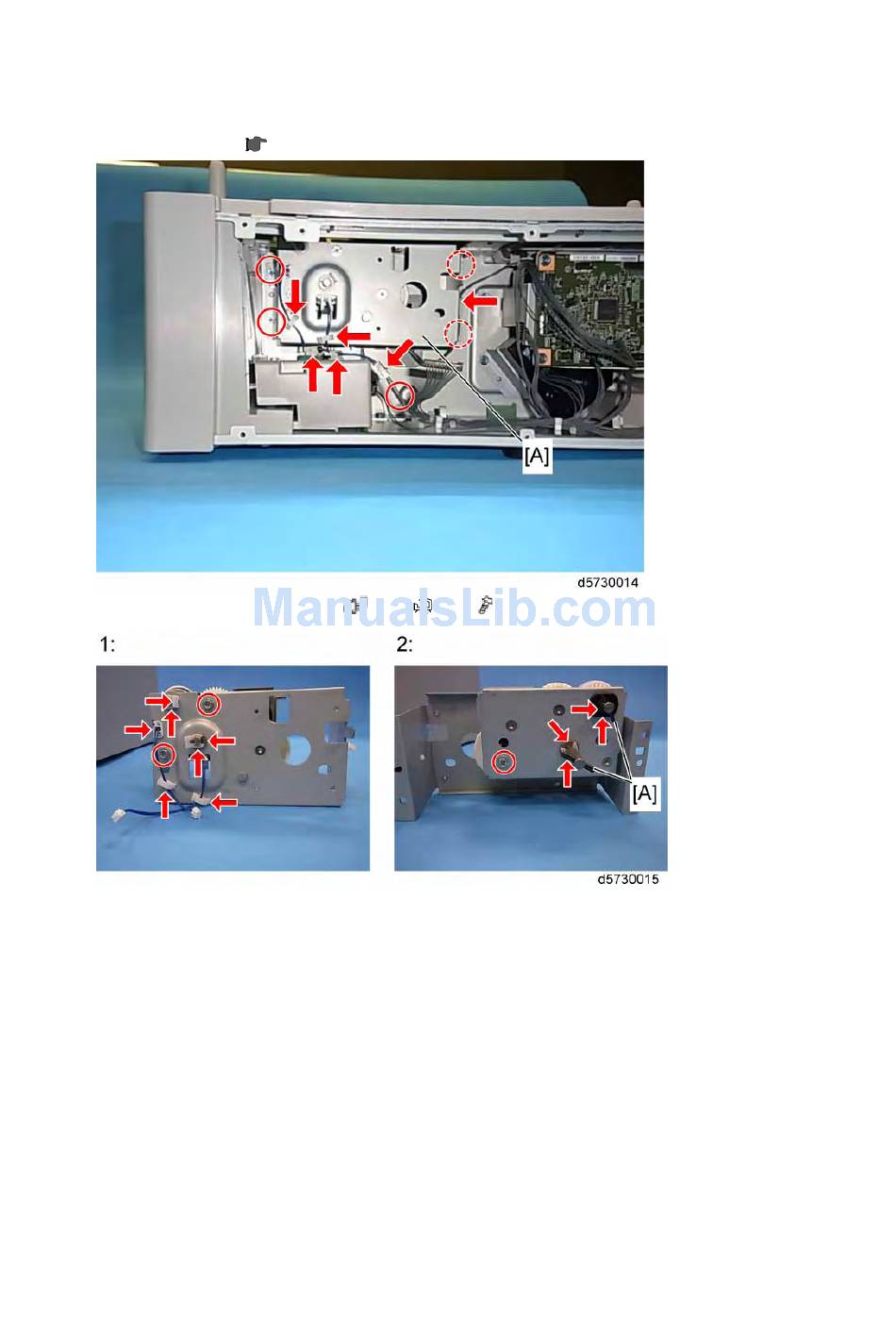

1. Paper feed motor (
2. Paper feed gear assembly [A] (
1: Front
2: Rear
3. Remove all screws, clips, clamps, e-rings and bearings.
4. Pull out the wedges [A].
SM
p.19)
x 2, x 4,
20
x 4)
D573
