A.6 Securing the Intercom
Use the four Security Torx screws to secure the Intercom. See
Note: To mount the intercom, use methods
GENERAL ALERT
Operations Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

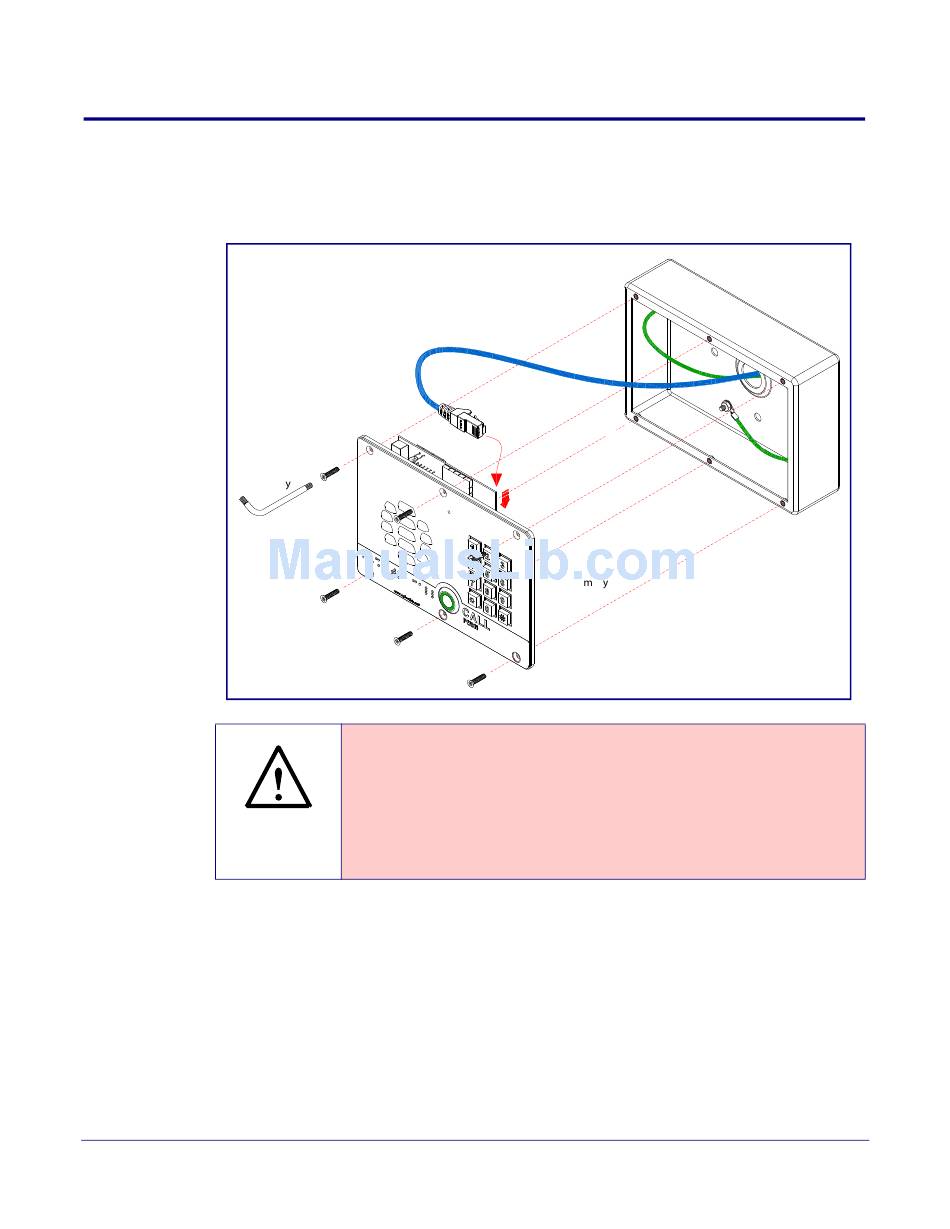

Figure A-9. Securing the Intercom
compliant with local electrical codes.
Torx Ke
Torx Screws
Caution
Equipment Hazard: Do not use an electric or power screwdriver to fasten the face
plate and PCB assembly to the gang box. To prevent over-torque damage to the
gasket, do not apply more than 10 inch-pounds force. Over-torquing will cause the
gasket to tear, risk moisture intrusion, and effectively void the manufacturer's
warranty.
930923B
Figure
Network Cable &
Ground Wire
(Not Provided)
J1
Faceplate &
PCB Asse bl

Securing the Intercom

A-9.
3-Gang Box
CyberData Corporation
98
