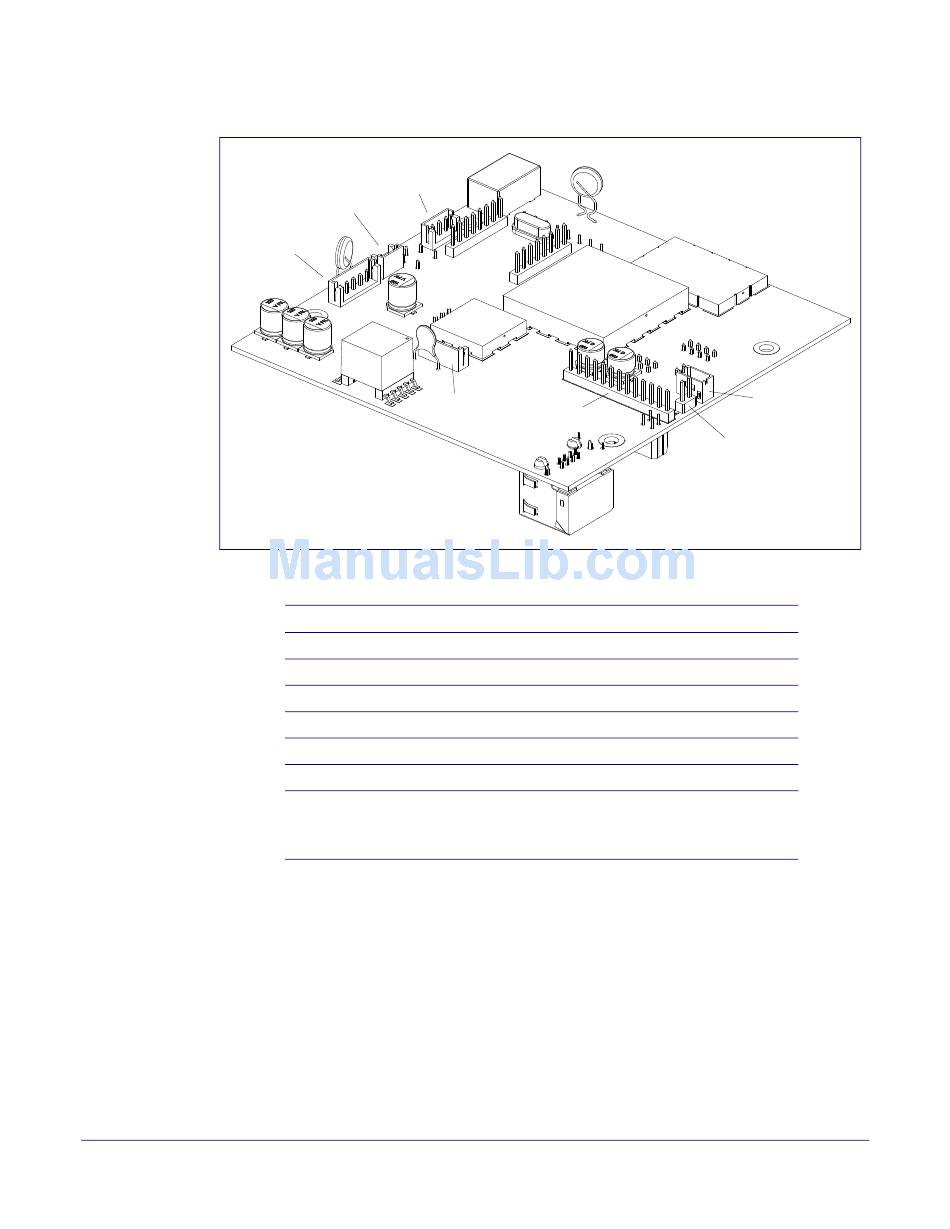

Figure 2-8. Connector Locations
J7 J6
J9
Table 2-3. Connector Functions
Connector Function
J2 Call Button LED Interface
J6 Microphone Interface
J7 Speaker Interface
J8 Keypad Interface
J9 Auxiliary Strobe Connector — Not Used
J10 Proximity Sensor Interface — Not Used
JP10 Disables the intrusion sensor when installed.
Note: Placing a jumper on JP10 will disable the intrusion
detection circuit.
930923B
Installing the VoIP Outdoor Intercom with Keypad
J2 J8
Intercom Setup
J10
JP10
