CyberData 011310 Operation Manual page 43

2. On the Button Configuration page, you may enter values for the parameters indicated in
Table
Web Page Item
Dial Mode
Enable Telephone Operation
Enable Cellphone Operation
Enable Speed Dial Operation
Enable Security Operation
Security Mode Settings
Security Code 0
Security Code 1
Security Code 2
Security Code 3
Security Code 4
Security Code 5
Security Code 6
Operations Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
2-12.

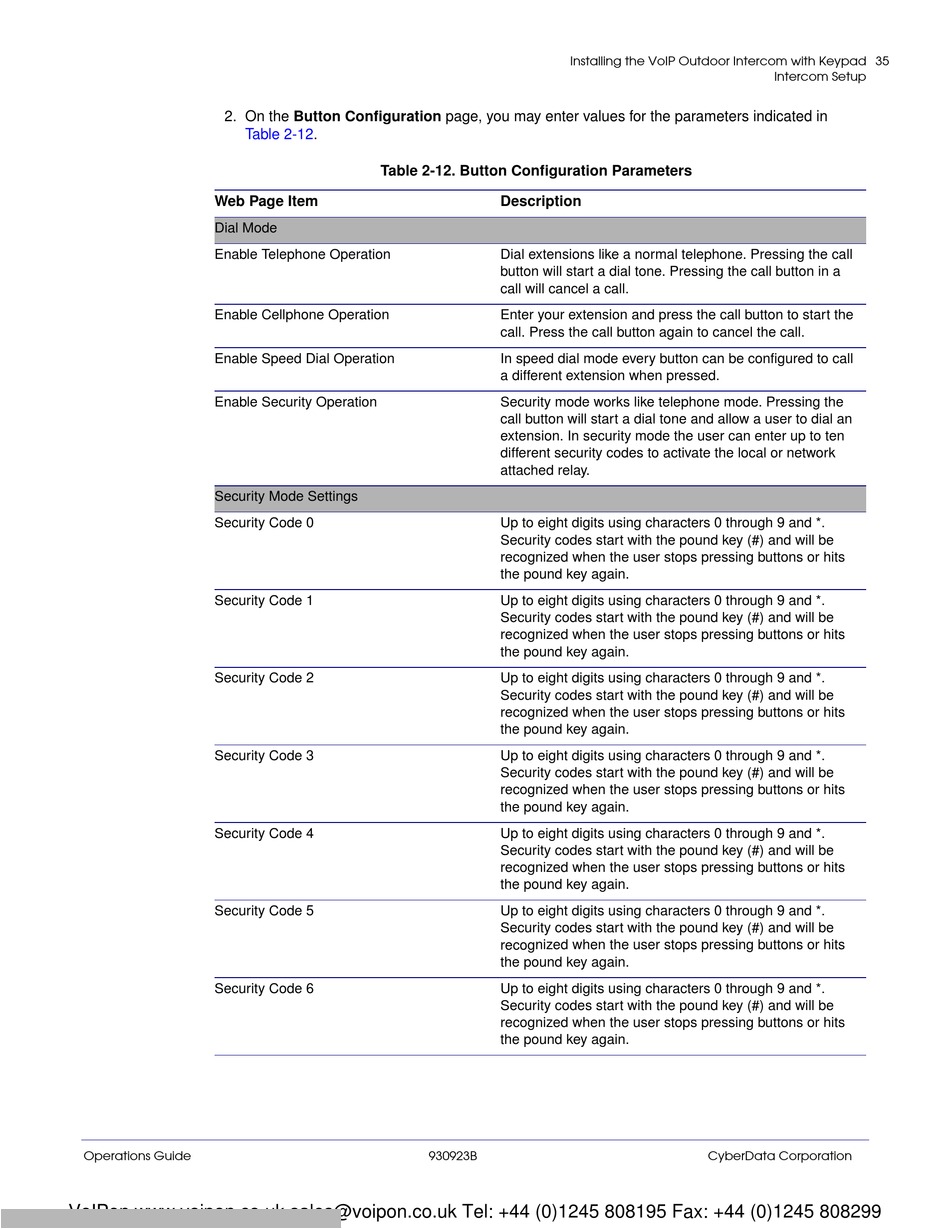

Table 2-12. Button Configuration Parameters
930923B
Installing the VoIP Outdoor Intercom with Keypad
Description
Dial extensions like a normal telephone. Pressing the call
button will start a dial tone. Pressing the call button in a
call will cancel a call.
Enter your extension and press the call button to start the
call. Press the call button again to cancel the call.
In speed dial mode every button can be configured to call
a different extension when pressed.
Security mode works like telephone mode. Pressing the
call button will start a dial tone and allow a user to dial an
extension. In security mode the user can enter up to ten
different security codes to activate the local or network
attached relay.
Up to eight digits using characters 0 through 9 and *.
Security codes start with the pound key (#) and will be
recognized when the user stops pressing buttons or hits
the pound key again.
Up to eight digits using characters 0 through 9 and *.
Security codes start with the pound key (#) and will be
recognized when the user stops pressing buttons or hits
the pound key again.
Up to eight digits using characters 0 through 9 and *.
Security codes start with the pound key (#) and will be
recognized when the user stops pressing buttons or hits
the pound key again.
Up to eight digits using characters 0 through 9 and *.
Security codes start with the pound key (#) and will be
recognized when the user stops pressing buttons or hits
the pound key again.
Up to eight digits using characters 0 through 9 and *.
Security codes start with the pound key (#) and will be
recognized when the user stops pressing buttons or hits
the pound key again.
Up to eight digits using characters 0 through 9 and *.
Security codes start with the pound key (#) and will be
recognized when the user stops pressing buttons or hits
the pound key again.
Up to eight digits using characters 0 through 9 and *.
Security codes start with the pound key (#) and will be
recognized when the user stops pressing buttons or hits
the pound key again.
35
Intercom Setup
CyberData Corporation
