3.4.4.1 Installing the Anti-Tipper

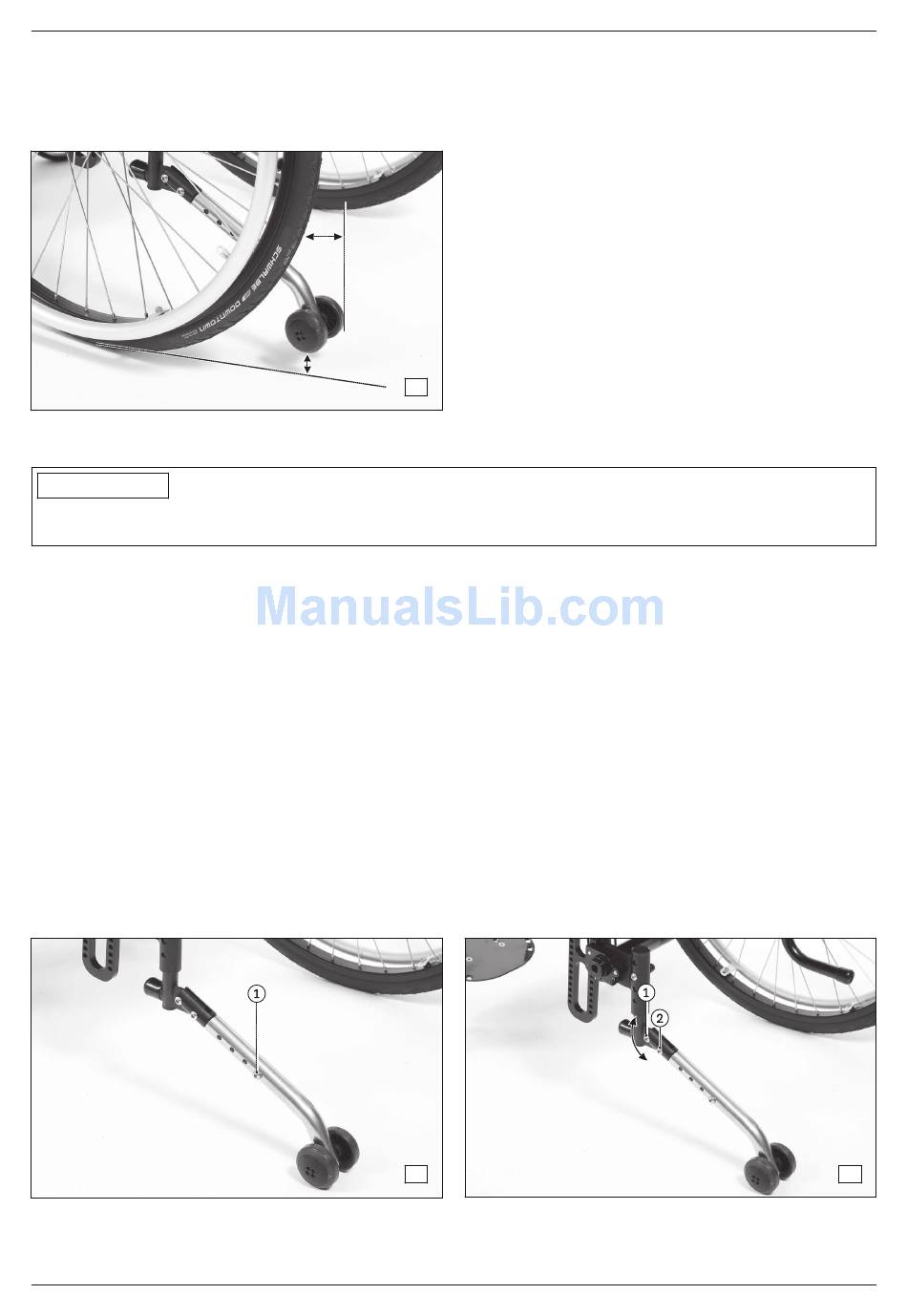

The anti-tipper (see Fig. 12) is supplied as an assembly together with the accessory mount. The anti-tipper is prein­
stalled on the accessory mount.
To install the anti-tipper, see the section "Replacing/Retrofitting the Accessory Mount" (see Page 8).

3.4.4.2 Adjusting the Anti-Tipper

INFORMATION
In order to adjust the anti-tipper correctly, it may be necessary to combine the steps to adjust the length and
angle.
Adjusting the length of the pivot arm
1) Remove the Allen head screw on the pivot arm (see Fig. 13, item 1).
2) Adjust the length of the pivot arm.
3) Bolt down the pivot arm. The outer edge of the anti-tipper roller has to project beyond the largest diameter of
the tyre (see Fig. 12).
Adjusting the angle of the pivot arm option 1
1) Remove the Allen head screw between the anti-tipper tube and the angle adjuster (see Fig. 14, item 1).
2) Loosen the second Allen head screw on the angle adjuster (see Fig. 14, item 2).
3) Set the angle of the pivot arm.
4) Bolt down the pivot arm. The max. distance between the anti-tipper rollers and floor is 5 cm (see Fig. 12).
Adjusting the angle of the accessory mount option 2
1) Remove the 3 Allen head screws between the accessory mount and the clamping flange (see Fig. 15, item 1).
2) Set the angle of the accessory mount (3 settings at intervals of 10°: see Fig. 2).
3) Tighten the accessory mount to 10 Nm. The max. distance between the anti-tipper rollers and floor is 5 cm (see
Fig. 12).
