  • Page 1 Ventus Instructions for use (user) ..................
  • Page 2 Ventus...

  • Page 3: Table Of Contents

    7.9.1 Using the wheel locks .......................... 7.9.2 Using the plug-on wheel lock lever extension ..................7.10 Wheelbase extension ........................... 7.11 Anti-tipper/tip-assist ..........................7.11.1 Activating and deactivating the anti-tipper ....................7.11.2 Using the tip-assist ..........................7.12 Shock absorber system ........................Ventus...
  • Page 4 Inner tube, rim tape and tyre replacement ....................Disposal ................................Disposal information ..........................Legal information .............................. 10.1 Liability .............................. 10.2 Warranty ............................10.3 Service life ............................Technical data ..............................Appendices ................................ 12.1 Threshold values for wheelchairs transportable by train ................Ventus...

  • Page 5: Foreword

    Your product may differ from the models shown. In particular, not all the options described in these instruc­ tions for use will be installed on your product. • The manufacturer reserves the right to make technical changes to the model described in these instructions for use. Ventus...

  • Page 6: Product Description

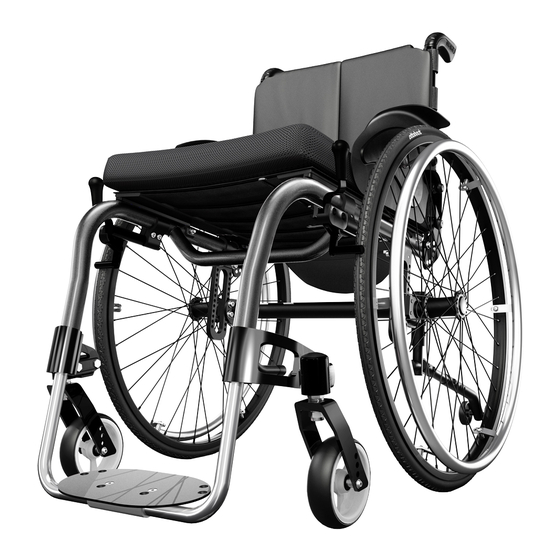

    Max. load: 100 kg (effective seat width: 280–440 mm); 140 kg (effective seat width: 460–500 mm) The lightweight Ventus wheelchair is a modular rigid-frame wheelchair for active use in open frame design. The one-piece light metal frame, combined with a single-panel foot plate or a tube foot support, offers high stability with a low net weight.

  • Page 7: Intended Use

    ► Do not modify the settings established by the qualified personnel. Only the settings described in the section “Use” in these instructions for use may be adjusted independently. ► In case of problems with the settings, please contact the qualified personnel who adjusted your product. Ventus...
  • Page 8 ► Do not lean too far out of the wheelchair when trying to pick up objects. ► Lean well forward with your upper body when climbing gradients, overcoming obstacles on gradients or on ramps. If users cannot lean their upper body forward, accompanying persons must support the wheelchair from behind. Ventus...
  • Page 9 Tipping over, falling of the user due to lifting by removable components ► Only lift the product by firmly mounted components (e.g. main frame, push handles). ► Be sure that the clamping levers of the height-adjustable push handles are firmly tightened. Ventus...
  • Page 10 This includes uncontrolled movements as well as sounds that are unexpected or previously not noted or odours that deviate significantly from the state of the product at the time of delivery. ► Contact the qualified personnel. Ventus...

  • Page 11: Side Effects

     UDI-DI to GS1 standard; UDI = Unique Device Identifier, DI = Device Identifier Label Meaning (Safety loop on the wheelchair) Caution! The rear wheels have been pre-positioned according to your indications. Before using the wheelchair, this pre-adjusted position must be checked by the wheelchair user for function Ventus...

  • Page 12: Delivery

    1) Fold up the backrest (see fig. 2): → Pull the backrest cable until the locking mechanism releases the backrest. → Fold the backrest rearwards until the locking bolts lock in on both sides. 2) Fold out the folded-in side panels: Ventus...

  • Page 13: Use

    The wheelchairs in this series fully satisfy the minimum technical requirements for wheelchairs transportable by train. However, please note that it is possible that not every individual wheelchair will fulfil the minimum require­ ments due to the variation in designs (please see see Page 36 for further details). Ventus...

  • Page 14: Getting In And Transferring

    1) Guide the calf strap around the frame tube above the caster attachment device (see fig. 8, item 1). 2) +Close the hook-and-loop closure (see fig. 8, item 2). Removing the calf strap 1) Unfasten the hook-and-loop closure. 2) Remove the calf strap from the frame tube. Ventus...

  • Page 15: Seat Cushion And Back Upholstery

    → Pull the part of the flap that can be fastened forwards and fasten tightly to the seat upholstery (see fig. 9, item 2). INFORMATION: The part of the flap that can be fastened prevents sliding or falling through the gaps between the straps and protects against draughts. 6) Fasten the seat pad (see fig. 9, item 1) and the seat cushion. Ventus...

  • Page 16: Side Panels

    1) Press in the release button on the inner side of the side panel (see fig. 13, item 1). 2) Slide the armrest to the desired position (see fig. 13, item 2). 3) Let go of the release button. → The armrest locks into place automatically. Ventus...

  • Page 17: Folding Down The Side Panels

    1) Pull the side panels up out of the guides of the side panel supports (see fig. 16). 2) Fold the side panels up by 90° (see fig. 17). 3) After getting in, fold the side panels down again into the guides of the side panel supports. Ventus...

  • Page 18: Removing The "Padded" Armrest

    2) Move the arm support to the desired rotation setting (see fig. 23, item 2). 3) Let go of the release button. The arm support will be secured in its position. Continuously adjusting the rotation setting 1) Pull the release button downwards (see fig. 23, item 1). Ventus...

  • Page 19: Push Handles

    Improper assembly of removable wheels Tipping, falling over of the user due to wheels coming off ► After each assembly, verify the proper fit of the removable wheels. The quick-release axles must be firmly locked in the wheel attachment. Ventus...

  • Page 20: Removing And Mounting The Drive Wheels

    After mounting: The drive wheels must not be removable after releasing the push-button on the quick-release axle. Drive wheels with lock-release assist The quick-release axle with lock-release assist for people with quadriplegia makes it possible to install the drive wheels even in case of severely limited mobility of the arms and hands. Ventus...

  • Page 21: Caster Wheels And Caster Forks

    Different caster wheel types (e.g. luminous casters, design casters, solid rubber casters, skater casters) or caster forks may be installed depending on the order. The caster wheels and caster forks have been chosen by the qualified personnel according to the needs of the user. Ventus...

  • Page 22: Special Requirements For The Frogleg Caster Fork

    ► Ensure that the knee lever wheel lock is properly adjusted (max. 5 mm gap to the tyre). The lock bolt must lock the drive wheel securely when stationary. ► Please contact the qualified personnel who adjusted your product for readjustment of the wheel lock. Ventus...

  • Page 23: Using The Plug-On Wheel Lock Lever Extension

    2) Fold the wheel lock lever extension either forward (see fig. 35, right) or to the side (see fig. 36). 3) To mount, pull on the handle of the wheel lock lever extension and slide the wheel lock lever extension back onto the wheel lock lever. Ventus...

  • Page 24: Wheelbase Extension

    This wheelbase extension option version offers the user a permanently large wheelbase (see fig. 39). This allows characteristics such as a particularly high wheelchair stability for particularly safety-conscious or inexperienced users. The wheel lock on the wheelchair has been installed by qualified personnel and can continue to be used. Ventus...

  • Page 25: Anti-Tipper/Tip-Assist

    Activation 1) The anti-tipper is pressed down with the hand or foot (see fig. 41, item 1; see fig. 42, item 1). 2) Swing the anti-tipper back and allow it to engage (see fig. 41, item 2; see fig. 42, item 2). Ventus...

  • Page 26: Using The Tip-Assist

    1) At an obstacle, place one foot on the tip-assist (see fig. 45) and push down. 2) Slightly tip the wheelchair by simultaneously pressing down on the push handles. 7.12 Shock absorber system The shock absorber system reduces impacts which occur, for example, when driving over small steps or curbs or on uneven ground. Ventus...

  • Page 27: Lap Belt (Seat Belt)

    If the lap belt is too loose, the user can shift/slide out to the front. • During the installation/adjustment, the lap belt is routed over parts of the seating system (e.g. over forearm supports or seat pads). This causes the lap belt to lose its retaining function. Ventus...

  • Page 28: Frame Pads

    Crushing, pinching due to incorrect handling ► When folding out the backrest, only grip by the specified components. NOTICE Deformation of the folded backrest Problems unfolding due to unallowable loads ► Never rest heavy objects on the backrest when it is folded in. Ventus...
  • Page 29 → Pull the backrest cable until the locking mechanism releases the backrest. → Fold the backrest down towards the seat surface and press until the locking bolts lock in on both sides. 5) Place the wheelchair in its folded-up state in the vehicle (see fig. 52). Ventus...

  • Page 30: Use In Vehicles For Transporting Persons With Reduced Mobility

    ► Information on the current status of our measures is available from the qualified personnel. The Ventus wheelchair has not been approved by the manufacturer for use as a seat in vehicles for transporting persons with reduced mobility.

  • Page 31: Cleaning Belts/Straps

    2) Wipe all parts of the wheelchair with a disinfectant. Important information about disinfecting • If the product is used by more than one person, using a conventional disinfectant is required. • Only use colourless water-based disinfectants. Observe the instructions for use provided by the manufacturer. Ventus...

  • Page 32: Maintenance And Repair

    The drive wheels are equipped with a quick-release axle system as standard equipment. To keep this system operational, ensure that no dirt adheres to the quick-release axle or receiver bushing. Periodically lubricate the quick-release axle lightly with thin, resin-free oil (sewing machine oil). • If the wheelchair becomes wet, it should be rubbed dry again. Ventus...

  • Page 33: Repair

    1) Behind the valve, push one side of the tyre over the edge of the rim. 2) Slightly inflate the tube until it starts to assume its round shape. 3) Unscrew the valve nut from the tube and push the valve through the valve opening in the rim. Ventus...

  • Page 34: Disposal

    10.3 Service life Expected lifetime: 4 years The design, manufacturing and requirements for the intended use of the product are based on the expected life­ time. These also include the requirements for maintenance, ensuring effectiveness and the safety of the product. Ventus...

  • Page 35: Technical Data

    – cannot be adjusted in the mm range but only in increments of approx. 0.5 cm or 1 cm. ► Note that the values achieved during adjustment may deviate from the values specified below. The deviation can be ±10 mm and ±2°. General information Ventus Maximum load capacity [kg] 100 (for seat width 280–440) 140 (for seat width 460–500) Weight [kg] approx.

  • Page 36: Appendices

    60 mm under the footrest for going forward at the end of the slope) Maximum inclination angle on which the wheelchair will 6 (dynamic stability in all directions) remain stable [°] 9 (static stability in all directions, also when wheel lock engaged) Ventus...
  • Page 37 Ventus...
  • Page 38 Ventus...
  • Page 39 · www.ottobock.de 143441 Moscow Region/Krasnogorskiy Rayon info@ottobock.com.co · www.ottobock.com.co Russian Federation Otto Bock Healthcare Products GmbH Otto Bock de Mexico S.A. de C.V. T +7 495 564 8360 · F +7 495 564 8363 Brehmstraße 16 · 1110 Wien · Austria Prolongación Calle 18 No. 178-A info@ottobock.ru · www.ottobock.ru F +43 1 5267985...
  • Page 40 Ihr Fachhändler | Your specialist dealer Otto Bock Mobility Solutions GmbH Lindenstraße 13 · 07426 Königsee/Germany www.ottobock.com...
