Ventus
Instructions for Use (User) .....................................................................................
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ventus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Otto Bock Ventus

Summary of Contents for Otto Bock Ventus

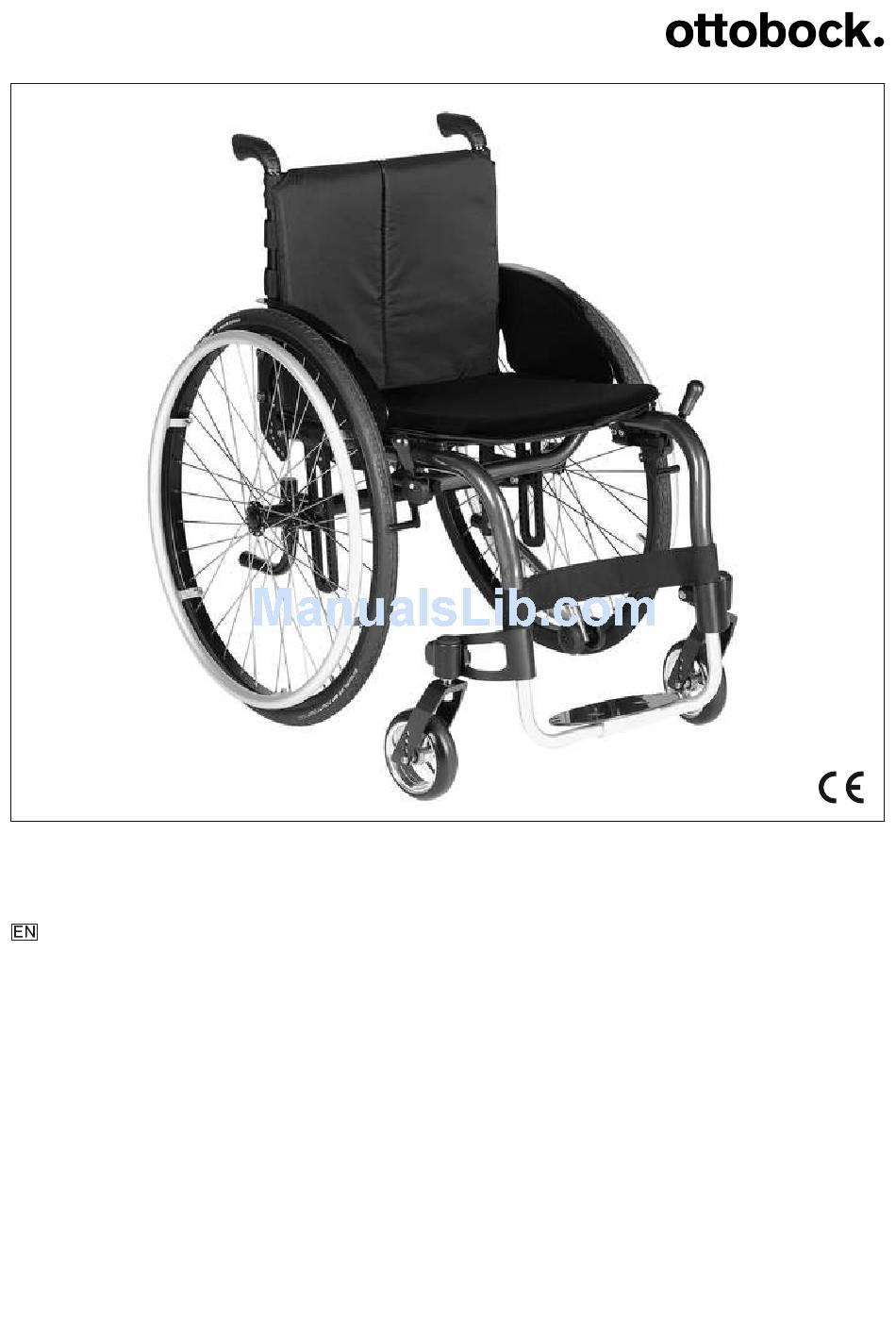

  • Page 1 Ventus Instructions for Use (User) ..................
  • Page 2 2 | Ottobock Ventus...

  • Page 3: Table Of Contents

    Wheelbase extension ........................... 6.3.10 Shock absorber system ........................6.3.11 Headrests and neckrests ........................6.3.12 Additional options ..........................Disassembly / Transport ........................Use in a wheelchair accessible vehicle ....................Care ..............................6.6.1 Cleaning ............................6.6.2 Disinfection ............................Ventus Ottobock | 3...
  • Page 4 Scopes of maintenance ........................Repair ............................... 7.2.1 Inner tube/rim tape/tyre replacement ..................... Disposal ................................Disposal information ..........................Legal Information .............................. Service life ............................Liability .............................. CE Conformity ............................ Warranty terms ........................... Trademarks ............................Technical Data ..............................4 | Ottobock Ventus...

  • Page 5: Foreword

    The wheelchair is designed solely for individual use by persons who are unable to walk or who have a walking impediment, and can be operated either by the patient or by another person. The wheelchair can be used on solid ground both indoors and outdoors. Ventus Ottobock | 5...

  • Page 6: Product Overview

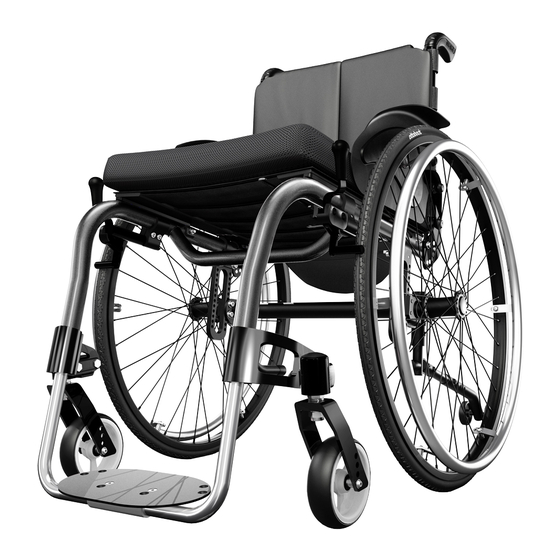

    Max. load capacity: 100 kg (effective seat width: 280 - 440 mm); 140 kg (effective seat width: 460 - 500 mm) The lightweight Ventus wheelchair is a modular rigid-frame wheelchair for active use in open frame design. The one-piece light metal frame, combined with a single-panel footrest or a footplate, offers high stability with a low net weight.

  • Page 7: Safety

    Incorrect fitting of the rear wheels Risk of falling or tipping due to wheels coming loose ► After every assembly, check the proper mounting of the rear wheels. The wheel axles must be securely locked in the fitting. Ventus Ottobock | 7...
  • Page 8 ► Do not lean too far out of the wheelchair when trying to pick up objects. ► Lean well forward with your upper body when climbing gradients, overcoming obstacles on gradients or on ramps. If users cannot lean their upper body forward, accompanying persons must support the wheelchair from behind. 8 | Ottobock Ventus...
  • Page 9 ► If only 1 accompanying person helps in overcoming steps, the accompanying person must first adjust the anti- tipper so that it cannot collide with the steps during transport. ► The accompanying person must adjust the anti-tipper again correctly after overcoming the steps. Ventus Ottobock | 9...
  • Page 10 Use in wrong ambient conditions Risk of damage to the product ► Do not use the wheelchair in salty water ► Also avoid – if possible – sand or other dirt particles that may damage the wheel bearings. 10 | Ottobock Ventus...

  • Page 11: Name Plate And Warning Labels

    The wheelchair is delivered preassembled and with the rear wheels removed packed in a crate. The scope of delivery includes: • Preassembled wheelchair • 2 rear wheels • Footplate • Options according to the order • Instructions for Use (User) 4.2 Standard equipment The standard equipment includes: Ventus Ottobock | 11...

  • Page 12: Options

    A few simple steps are sufficient for preparing the wheelchair for use: 1) Fold down the backrest (see Fig. 2): → Pull the backrest cable until the locking mechanism releases. → Fold the backrest rearwards until the locking bolts lock in on both sides. 12 | Ottobock Ventus...

  • Page 13: Usage

    Should the brochure not be included with the product, it can be ordered under order number 646D60. Further information on obtaining the brochure can be provided by the qualified personnel supplying the wheelchair or by Ottobock Service (addresses: see back inside cover or back cover). Ventus Ottobock | 13...

  • Page 14: Getting Into The Wheelchair/Transfers

    The height of the footrest has been adjusted by qualified personnel to the length of the user's lower leg. The angle of the footplate has been set by the qualified personnel so that it allows the ankles to rest in a comfort­ able position. 14 | Ottobock Ventus...

  • Page 15: Adjusting The Footrest (Footplate)

    ► The seat cushion and backrest cover are not highly flammable, but there is a possibility they may catch fire. Therefore utmost caution is required near open flame. ► Keep away from any sources of fire, especially burning cigarettes. Ventus Ottobock | 15...

  • Page 16: Fastening / Removing The Seat Cushion

    INFORMATION: The part of the flap that can be fastened prevents sliding or falling through the gaps between the straps and protects against draughts. 6) Fasten the seat pad (see Fig. 15, item 1) and the seat cushion. 16 | Ottobock Ventus...

  • Page 17: Side Panels

    1) Press in the release button on the inner side of the side panel (see Fig. 19, item 1). 2) Push the armrest to the desired position (see Fig. 19, item 2). 3) Let go of the release button. → The armrest locks into place automatically. Ventus Ottobock | 17...

  • Page 18: Folding Down The Side Panels

    1) Pull the side panels up out of the guides of the side panel supports (see Fig. 22). 2) Fold the side panels up by 90° (see Fig. 23). 3) After getting in, fold the side panels down again into the guides of the side panel supports. 18 | Ottobock Ventus...

  • Page 19: Removing The "Padded" Armrest

    1) Pull the release button downwards (see Fig. 29, item 1). 2) Move the channel forearm pad to the desired rotation setting (see Fig. 29, item 2). 3) Let go of the release button. The channel forearm pad will be secured in its position. Ventus Ottobock | 19...

  • Page 20: Push Handles

    INFORMATION: Both push handles must be adjusted to the same height. 6.3.5 Rear wheels CAUTION Heat development when braking with push rings Risk of burns to the hands ► Wear leather gloves when travelling at high speeds. 20 | Ottobock Ventus...

  • Page 21: Removing / Fitting The Rear Wheels

    2) Pull off/push on the rear wheel. 3) Close the lock-release assist (see Fig. 33, see Fig. 34 = pull up or push down). NOTE: The wheels must fit on to the wheel attachments without there being any play after closure. Ventus Ottobock | 21...

  • Page 22: Castors / Castor Forks

    1) Push the handle of the knee lever wheel lock forward (see Fig. 36). → The wheel lock bolt secures the wheel. 2) Pull the wheel lock lever upwards (see Fig. 37). → The wheel lock lever releases the wheel. 22 | Ottobock Ventus...

  • Page 23: Anti-Tipper / Tip-Assist

    5 cm and so that the anti-tippers, as a minimum, project fully beyond the largest diameter of the rear wheels. The tip-assist makes overcoming obstacles easier for the attendant. 6.3.8.1 Activating / deactivating the anti-tipper Activating per hand 1) Push the anti-tipper down using your hand (see Fig. 40, item 1). Ventus Ottobock | 23...
  • Page 24 Deactivating per foot 1) Press on the anti-tipper from above until it disengages (see Fig. 45, item 1). 2) Rotate the anti-tipper forwards by 180° and release it (see Fig. 45, item 2). → The anti-tipper is deactivated (see Fig. 43). 24 | Ottobock Ventus...

  • Page 25: Using The Tip-Assist

    After the rear wheels have been moved, the wheel lock on the wheelchair can no longer be used. INFORMATION After the rear wheels have been moved, the "Clothing protector" side panels can only be slightly folded out against the tyres (see Fig. 50). Ventus Ottobock | 25...

  • Page 26: Shock Absorber System

    After the rear wheels have been moved, the "Clothing protector" side panels can only be slightly folded out against the tyres (see Fig. 50). 6.3.10 Shock absorber system The shock absorber system absorbs loading peaks, for example when driving over steps or curbs or on uneven ground. 26 | Ottobock Ventus...

  • Page 27: Headrests And Neckrests

    → Pull the backrest cable until the locking mechanism releases. → Fold the backrest down towards the seat surface and press until the locking bolts lock in on both sides. 5) Place the wheelchair in its folded-up state in the vehicle (see Fig. 55). Ventus Ottobock | 27...

  • Page 28: Use In A Wheelchair Accessible Vehicle

    Some maintenance tasks can be carried out to a certain extent by the user at home (see the section "Mainten­ ance Tasks"). • The manufacturer also recommends regular maintenance every 12 months by an authorised dealer. 28 | Ottobock Ventus...

  • Page 29: Maintenance Intervals

    4) Before fitting the tyre again, inspect the rim bed and tyre inner wall for foreign objects. This could have caused the puncture. 5) Before installing the tube, check that the rim band is in proper condition. The rim band protects the tube from being damaged by the ends of the spokes. Ventus Ottobock | 29...

  • Page 30: Disposal

    5) Firmly screw the valve cap onto the valve. 8 Disposal 8.1 Disposal information In the case of disposal, return the wheelchair to the dealer. All components of the product must be disposed of in accordance with the respective national environmental laws. 30 | Ottobock Ventus...

  • Page 31: Legal Information

    Should trademarks in this accompanying document fail to be explicitly identified as such, this does not justify the conclusion that the denotation in question is free of third-party rights. 10 Technical Data General information Ventus Maximum load capacity [kg] 100 (for seat width 280 - 440) 140 (for seat width 460 - 500) Weight [kg] approx.
  • Page 32 ISO 7176-5, 8.12 Varies according to tyre option; see the print on the tyre wall The anti-tipper is mandatory for an inclination of more than 10°. Additional information Ventus Minimum Maximum Mass of the heaviest component [kg]...

  • Page 33: Ventus Ottobock

    Ventus Ottobock | 33...
