MFP stapler assembly sensor (deflector HP) removal

1. Remove the left cover. See

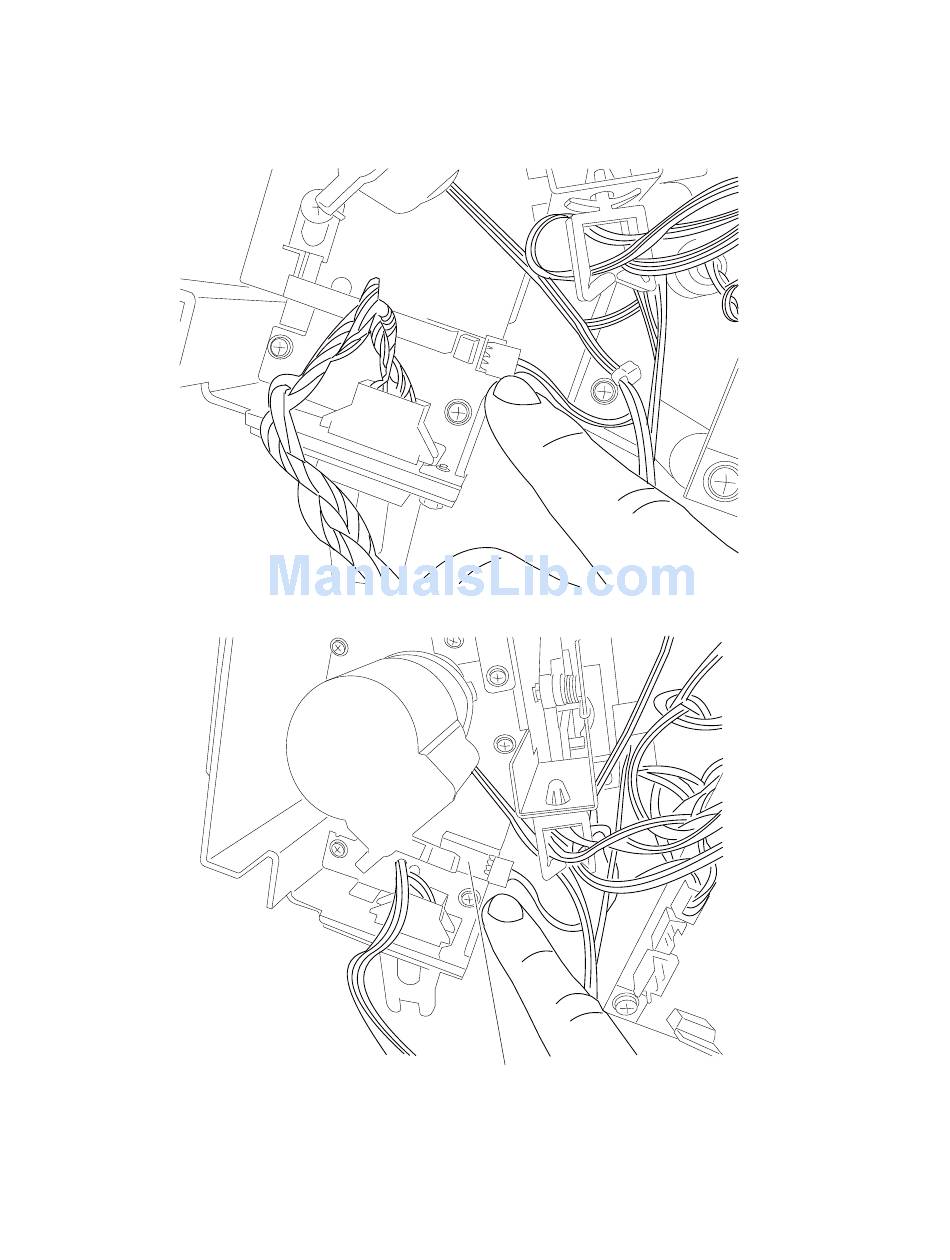

2. Disconnect the harness to the sensor (deflector HP).
3. Release the tabs (A) securing the sensor to the unit.
Note: The tabs may be difficult to access. The use of a spring hook or flat-blade screwdriver may be
necessary to release the tabs.
4-212
Service Manual
"MFP stapler assembly left cover removal" on page
A
4-196.
