SiK401004_A

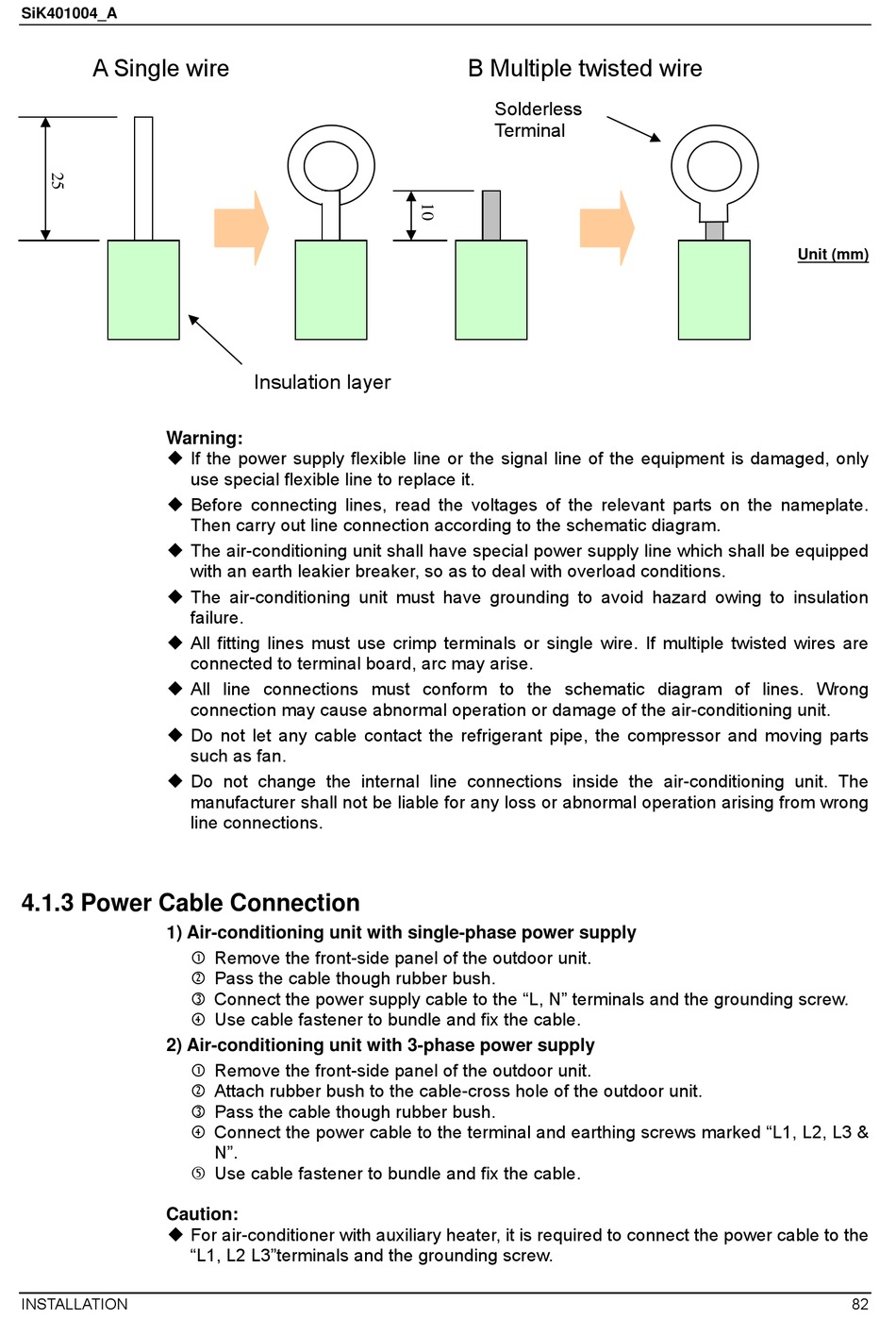

A Single wire
Warning:
 If the power supply flexible line or the signal line of the equipment is damaged, only
 Before connecting lines, read the voltages of the relevant parts on the nameplate.
 The air-conditioning unit shall have special power supply line which shall be equipped
 The air-conditioning unit must have grounding to avoid hazard owing to insulation
 All fitting lines must use crimp terminals or single wire. If multiple twisted wires are
 All line connections must conform to the schematic diagram of lines. Wrong
 Do not let any cable contact the refrigerant pipe, the compressor and moving parts
 Do not change the internal line connections inside the air-conditioning unit. The
4.1.3 Power Cable Connection
1) Air-conditioning unit with single-phase power supply
2) Air-conditioning unit with 3-phase power supply
Caution:
 For air-conditioner with auxiliary heater, it is required to connect the power cable to the
INSTALLATION
Insulation layer
use special flexible line to replace it.
Then carry out line connection according to the schematic diagram.
with an earth leakier breaker, so as to deal with overload conditions.
failure.
connected to terminal board, arc may arise.
connection may cause abnormal operation or damage of the air-conditioning unit.
such as fan.
manufacturer shall not be liable for any loss or abnormal operation arising from wrong
line connections.
 Remove the front-side panel of the outdoor unit.
 Pass the cable though rubber bush.
 Connect the power supply cable to the "L, N" terminals and the grounding screw.
 Use cable fastener to bundle and fix the cable.
 Remove the front-side panel of the outdoor unit.
 Attach rubber bush to the cable-cross hole of the outdoor unit.
 Pass the cable though rubber bush.
 Connect the power cable to the terminal and earthing screws marked "L1, L2, L3 &
N".
 Use cable fastener to bundle and fix the cable.
"L1, L2 L3"terminals and the grounding screw.
B Multiple twisted wire
Solderless
Terminal
Unit (mm)
