Daikin RY24PEV1K Service Manual page 126

3. Disaasembly of
sub-assy of electrical
box.
4. Removal of sub-assy
of electrical box
5. Install new sub-assy of
electric box
6. Connection of power
supply wires of each
component
7. Install cover of electric
box

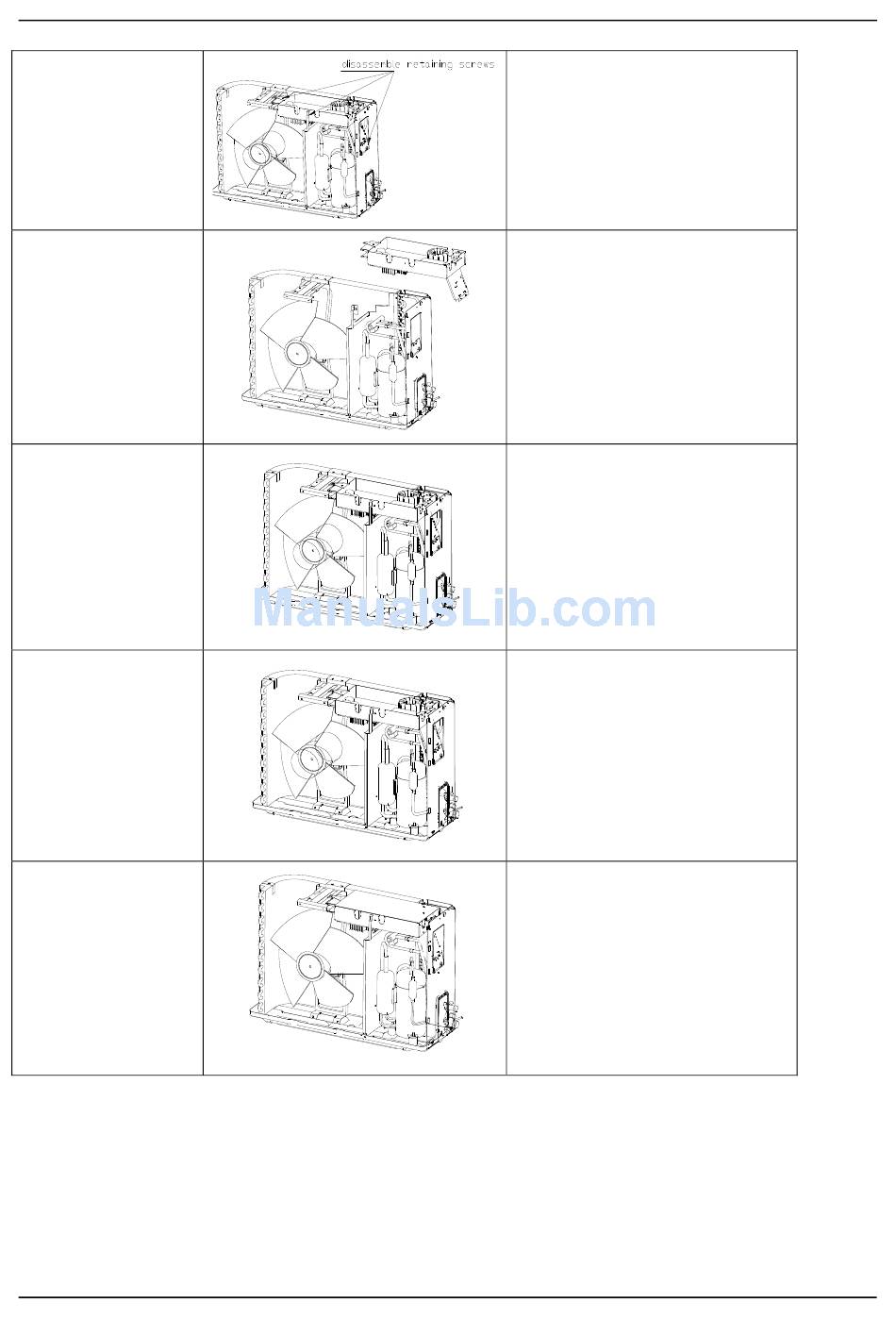

MAINTENANCE
●Disassemble retaining screws between
electrical parts box and middle clapbord,
motor support as well as right panel with
screwdriver.
●Hold and remove them upward to
disconnect them with middle partition
●Remove sub-assy of electric box.
●Position accurately the new sub-assy
of electrical box.
●Re-fasten the sub-assy of electrical
box and screw down with screwdriver
●Re-connect the connection wires of
components with right position
according to the order of disassembly.
●Position accurately the new cover of
electrical box.
●Re-fasten and screw down retaining
screws with screwdriver
